AVENIS 125

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER CRANKCASE CRANKCASE COVER CRANKSHAFT CAMSHAFT/VALVE CAM CHAIN THROTTLE 9 AIR CLEANER MUFFLER OIL PUMP FUEL PUMP COOLING FAN

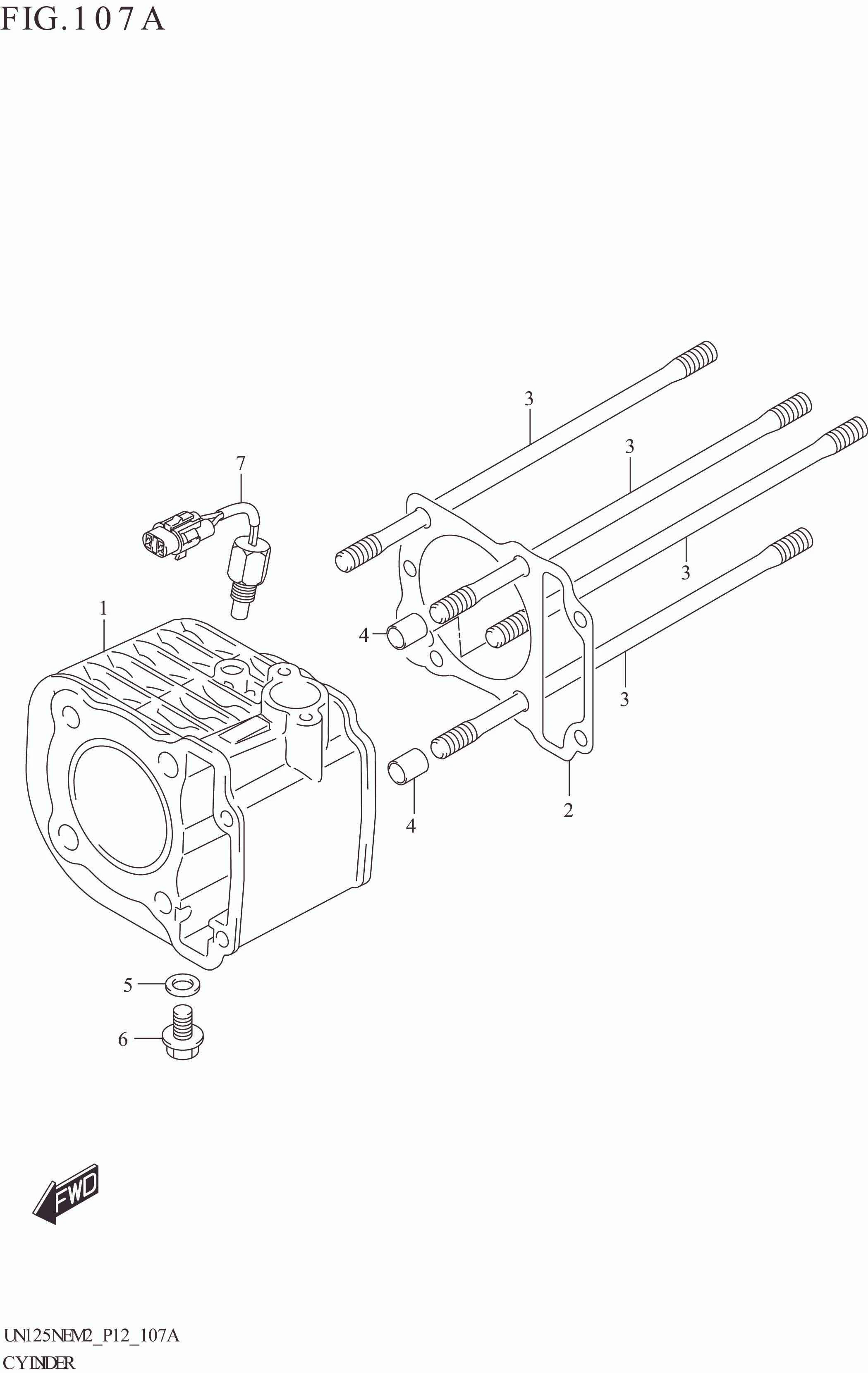

CYLINDER

CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	11210-02L00-0F0	CYLINDER	1	Rp634.500
2	11241-08K00-000	GASKET,CYLINDER	1	Rp11.500
3	09108-08302-000	STUD BOLT (L:192)	4	Rp26.500
4	09206-10016-000	PIN (8.2X10X13)	2	Rp3.500
5	09168-08008-000	GASKET (8.2X14X1)	1	Rp3.000
6	01550-0812A-000	BOLT	1	Rp3.500
7	13640-02L00-000	SENSOR,5 TEMP	1	Rp122.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
