Preview Engine Transmission Electrical Suspension Body

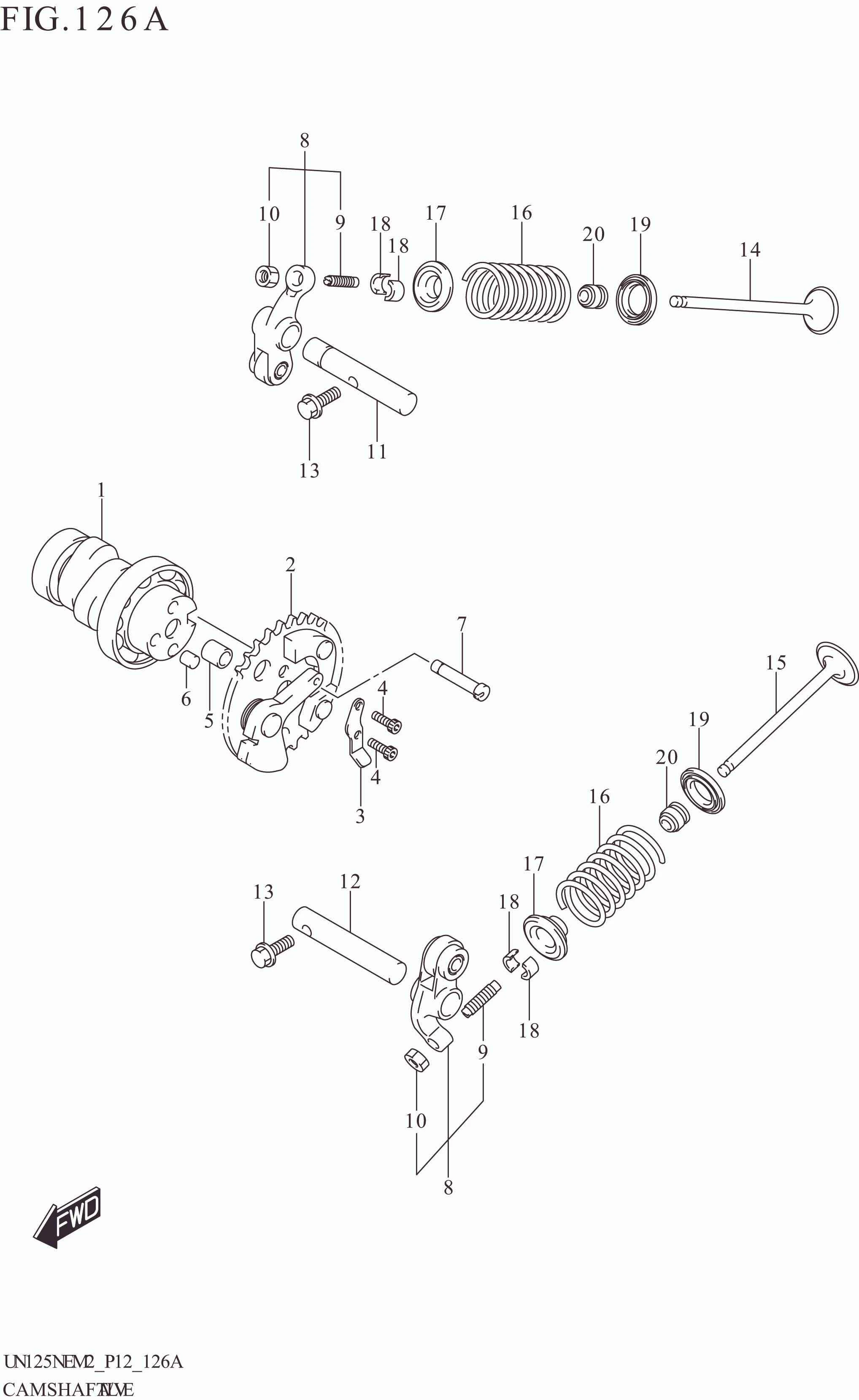

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12710-02L00-000	CAMSHAFT	1	Rp353.000
2	12740-08K00-000	SPROCKET,CAMSHAFT (NT:34)	1	Rp212.500
3	12714-34J10-000	WASHER,SPROCKET (NT:26)	1	Rp5.500
4	09106-05028-000	BOLT (5X15)	2	Rp6.500
5	09206-08008-000	PIN (6.3X8X12)	1	Rp4.000
6	09261-05005-000	PIN (5X8)	1	Rp3.000
7	12951-08K00-000	CAM,DECOMPRESSION	1	Rp34.500
8	12840-43J00-000	ARM ASSY,VALVE ROCKER	2	Rp161.000
9	12842-34J00-000	.SCREW,TAPPET ADJUSTING (NT:24)	2	Rp25.000
10	12843-27A70-000	.NUT,TAPPET ADJUSTING	2	Rp5.500
11	12861-35J00-000	SHAFT,VALVE ROCKER ARM INTAKE	1	Rp21.500	INTAKE
12	12871-35J00-000	SHAFT,VALVE ROCKER ARM EXHAUST	1	Rp18.000	EXHAUST
13	01550-0512A-000	BOLT	2	Rp2.000
14	12911-43J00-000	VALVE,INTAKE	1	Rp59.500
15	12912-02L00-000	VALVE,EXHAUST	1	Rp76.000
16	12921-43J00-000	SPRING,VALVE	2	Rp23.000
17	12931-09G00-000 SUB: 12931-09G20-000	RETAINER,VALVE SPRING	2	Rp13.000
18	12932-09G00-000 SUB: 12932-09G10-000	COTTER VALVE (NT:23)	4	Rp4.500
19	12933-09G00-000	SEAT,VALVE SPRING	2	Rp9.000
20	09289-05019-000	SEAL,OIL (4X10X8)	2	Rp39.000
