AVENIS 125

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVERCYLINDER HEADCYLINDERCRANKCASECRANKCASE COVERCRANKSHAFTCAMSHAFT/VALVECAM CHAINTHROTTLE 9AIR CLEANERMUFFLEROIL PUMPFUEL PUMPCOOLING FAN

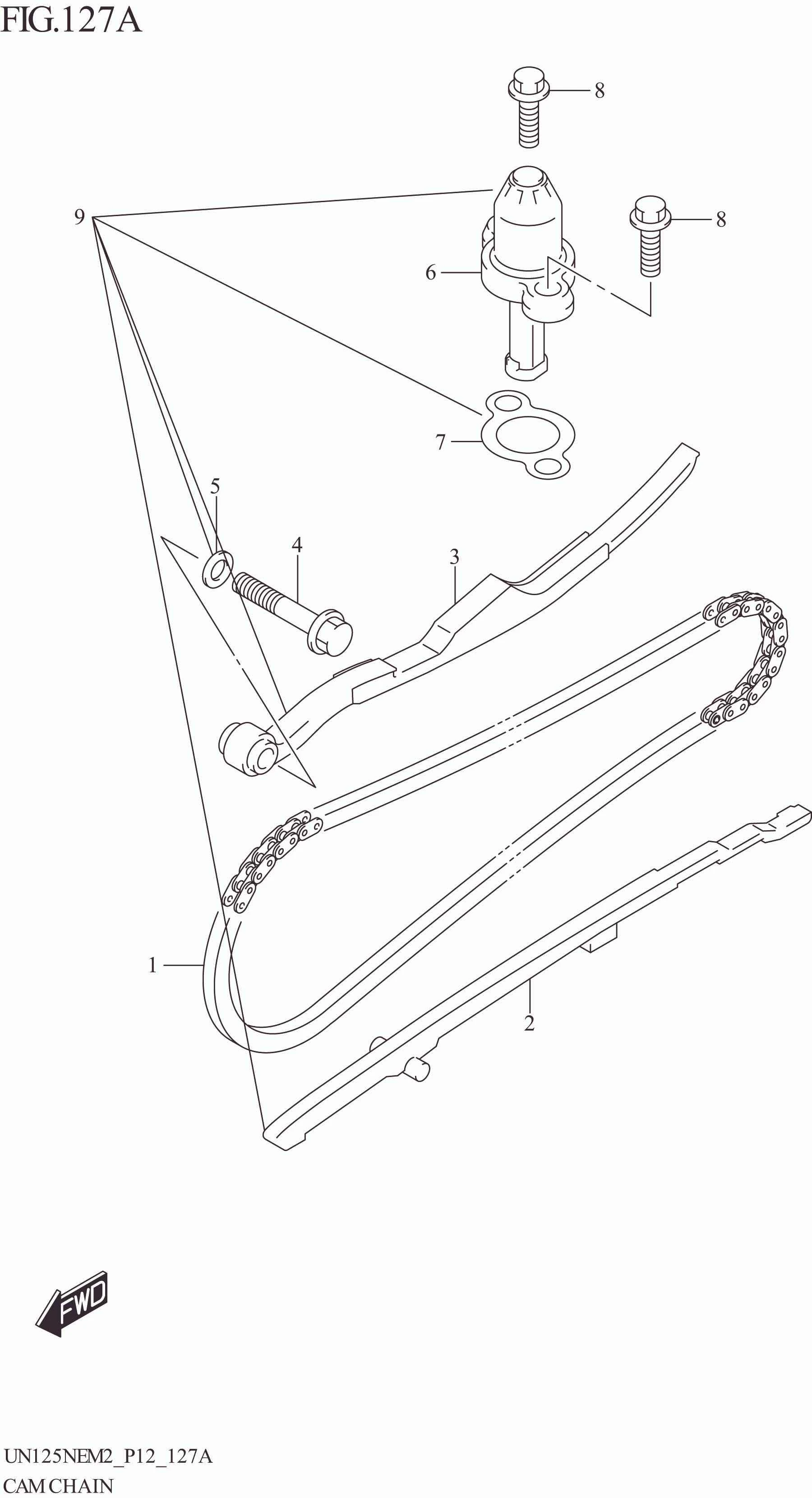

CAM CHAIN

CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-08K10-000 CHAIN,CAMSHAFT DRIVE 1 Rp76.000
2 12771-08K00-000 GUIDE,CAM CHAIN 1 Rp20.500
3 12811-08K10-000 TENSIONER,CAM CHAIN 1 Rp46.000
4 09103-06247-000 BOLT (6X32) 1 Rp4.000
5 09168-06004-000 GASKET (6.2X11X1.2) 1 Rp2.500
6 12830-42K00-000 ADJUSTER ASSY,TENSIONER 1 Rp93.000
7 12837-39J20-000 GASKET,TENSIONER ADJUSTER (NA) 1 Rp5.500
8 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 2 Rp6.500
9 12800-42810-000 ENGINE TIMING KIT 1 Rp202.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
