AVENIS 125

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVERCYLINDER HEADCYLINDERCRANKCASECRANKCASE COVERCRANKSHAFTCAMSHAFT/VALVECAM CHAINTHROTTLE 9AIR CLEANERMUFFLEROIL PUMPFUEL PUMPCOOLING FAN

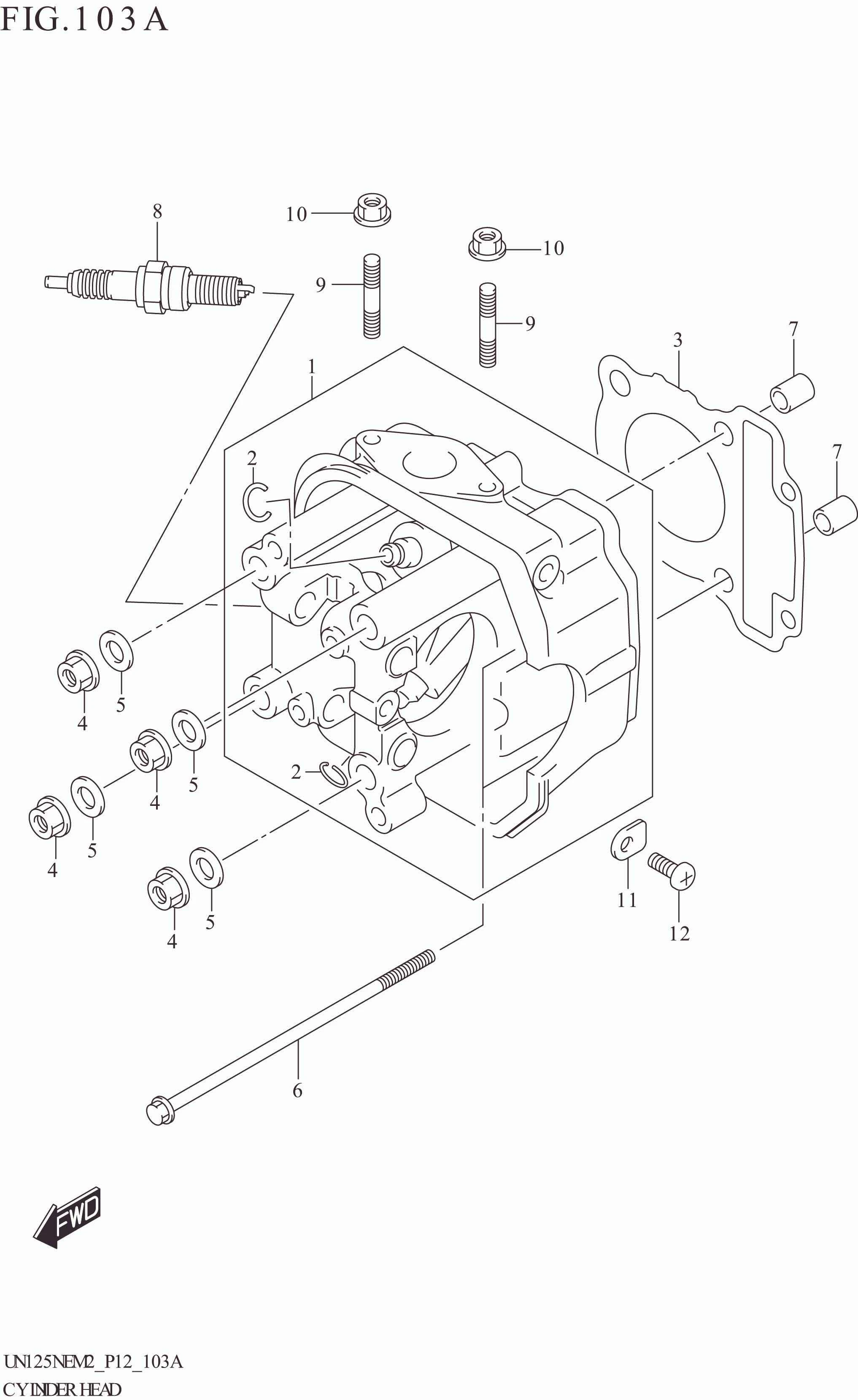

CYLINDER HEAD

CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1-1 11110-02L00-000 HEAD,CYLINDER 1 Rp1.254.500
2 09381-10004-000 .RING,SNAP (10X85) 2 Rp3.000
3 11141-35J00-000 GASKET,CYLINDER HEAD 1 Rp26.500
4 08316-1008A-000 NUT 4 Rp3.500
5 09160-08164-000 WASHER (8.5X18X2.3) 4 Rp6.500
6 09103-06501-000 BOLT (6X100) 2 Rp9.000
7 09206-10016-000 PIN (8.2X10X13) 2 Rp3.500
8 09482-00645-000 SPARK PLUG (MR7E-9) 1 Rp113.500
9 01421-0625A-000 BOLT,STUD 2 Rp7.000
10 08316-1006A-000 NUT (6X12) 2 Rp2.000
11 24741-20A10-000 RETAINER,SHIFT CAM,R BEARING 1 Rp3.500
12 02112-0612A-000 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
