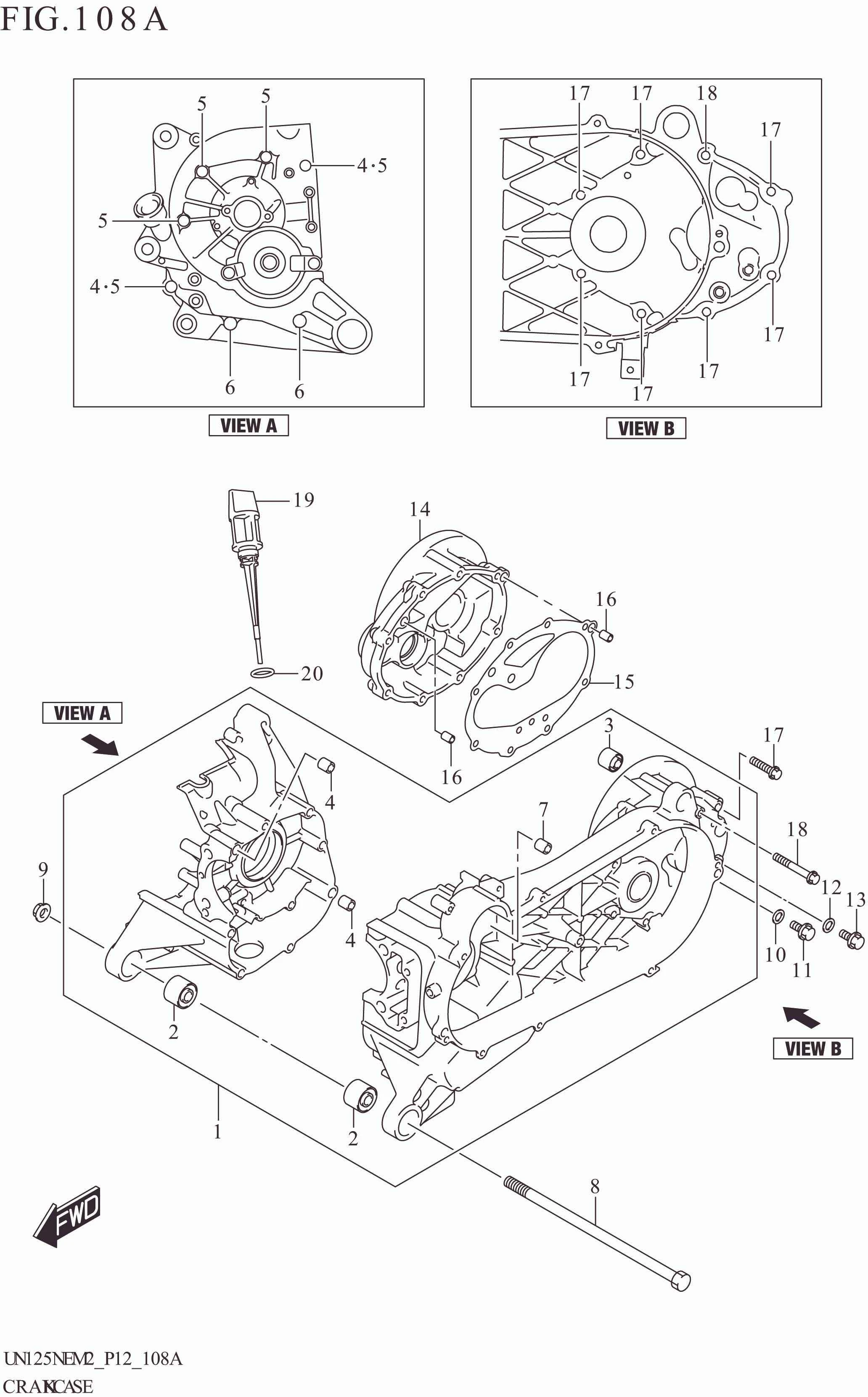

No	No. Part	Description	Qty	Price Per Pcs
1	11301-08840-000	CRANKCASE SET	1	Rp2.253.000
2	11315-39J10-000 SUB: 11315-39J00-000	.BUSH,5 MTG	2	Rp30.000
3	11316-39J00-000	.BUSH,REAR SHOCK ABS	1	Rp37.000
4	09206-10014-000	.PIN (6.4X10X20)	2	Rp3.000
5	01547-0655A-000	.BOLT	5	Rp7.500
6	01547-0695A-000	.BOLT	2	Rp7.500
7	11325-09J00-000	.BUSH	1	Rp13.000
8	11611-39J00-000	BOLT,ENG MTG (L:240)	1	Rp35.500
9	08316-1010A-000	NUT	1	Rp3.500
10	09168-08008-000	GASKET (8.2X14X1)	1	Rp3.000
11	01550-0812A-000	BOLT	1	Rp3.500
12	09168-08008-000	GASKET (8.2X14X1)	1	Rp3.000
13	01550-0812A-000	BOLT	1	Rp3.500
14	11430-39840-000	COVER SET, GEAR BOX	1	Rp483.000
15	11484-39J30-000	GASKET,GEAR BOX COVER	1	Rp15.500
16	09206-08008-000	PIN (6.3X8X12)	2	Rp4.000
17	01547-0630A-000	BOLT	7	Rp6.500
18	01547-0655A-000	BOLT	1	Rp7.500
19	11971-09J00-000	GAUGE,OIL LEVEL	1	Rp23.000
20	09280-17003-000	O-RING (D:3.1,ID:16.8)	1	Rp2.000
