  3. AVENIS 125
  4. Engine
  5. CYLINDER HEAD COVER

AVENIS 125

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVERCYLINDER HEADCYLINDERCRANKCASECRANKCASE COVERCRANKSHAFTCAMSHAFT/VALVECAM CHAINTHROTTLE 9AIR CLEANERMUFFLEROIL PUMPFUEL PUMPCOOLING FAN

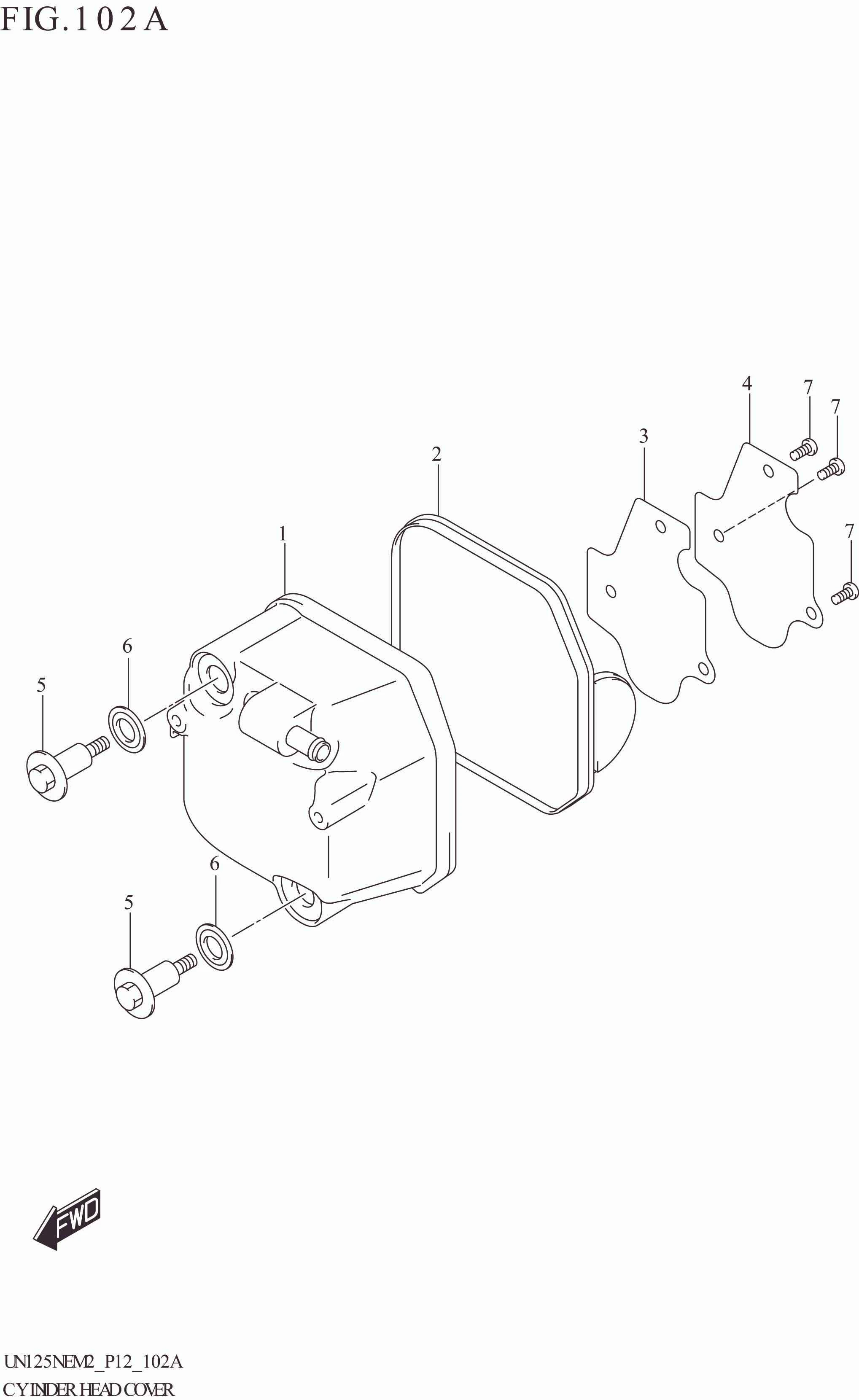

CYLINDER HEAD COVER

CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11170-02L10-000 COVER,CYLINDER HEAD 1 Rp221.500
2 11173-02L00-000 GASKET,CYL HEAD COVER 1 Rp27.500
3 11176-02L00-000 PLATE,BREATHER 1 Rp13.500
4 11177-08K00-000 GASKET,BREATHER PLATE 1 Rp9.500
5 09119-06138-000 BOLT 2 Rp24.000
6-2 11191-27E70-000 WASHER (10.6X25.5X1.6) 2 Rp6.500
7 DISCONTINUE
SUB: 02112-0510A-000		 SCREW 3 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
