AVENIS 125

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVERCYLINDER HEADCYLINDERCRANKCASECRANKCASE COVERCRANKSHAFTCAMSHAFT/VALVECAM CHAINTHROTTLE 9AIR CLEANERMUFFLEROIL PUMPFUEL PUMPCOOLING FAN

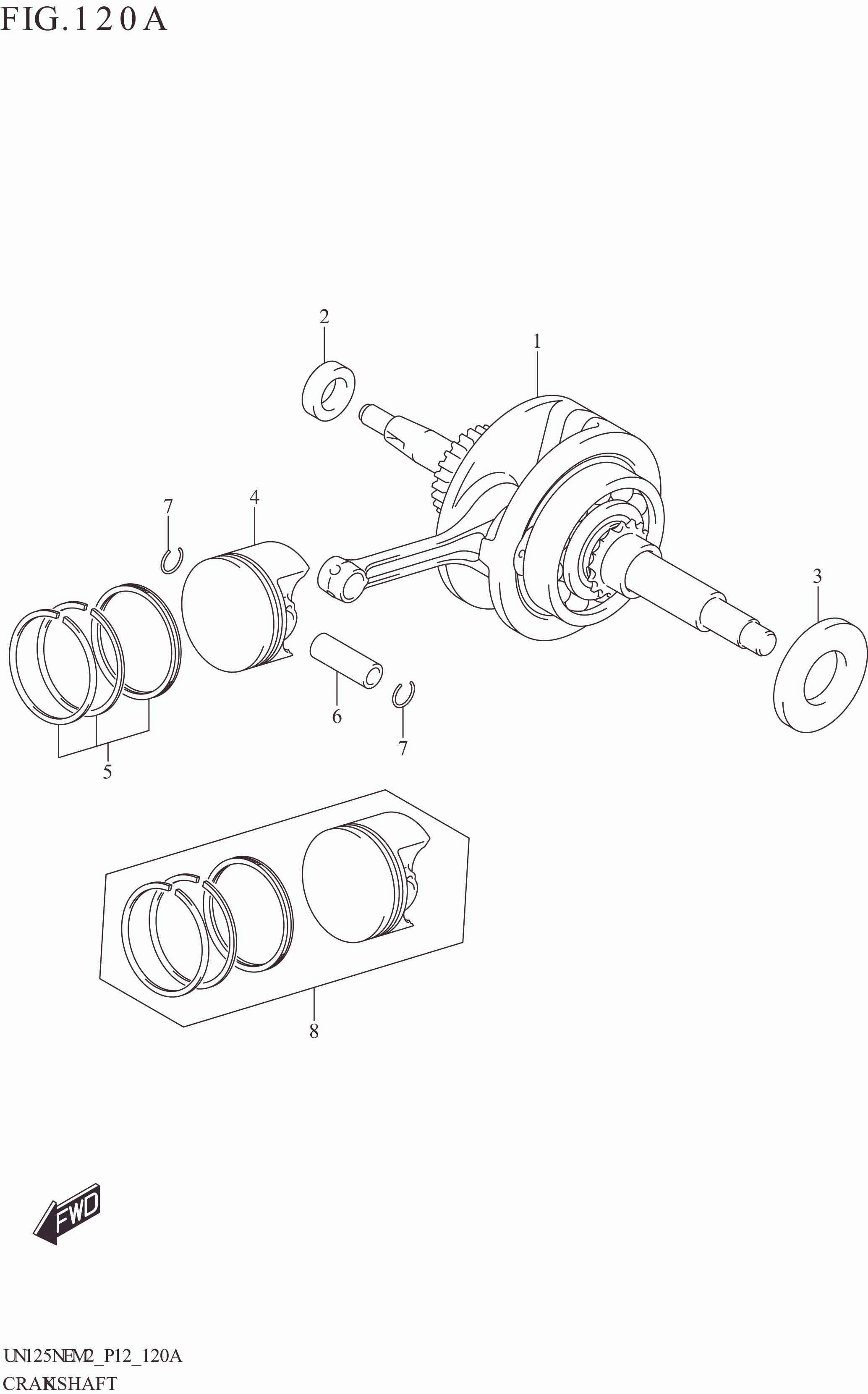

CRANKSHAFT

CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12200-08K51-000 CRANKSHAFT ASSY 1 Rp2.017.500
2 09283-16010-000
SUB: 09283-16L03-000		 SEAL,OIL (20.5X32X5) 1 Rp17.500
3 12227-08K00-000 SEAL,CRANKSHAFT OIL,L 1 Rp41.000
4 12111-08K10-0F0 PISTON 1 Rp115.000
5 12140-08K50-000 RING SET,PISTON 1 Rp89.500
6 12151-43J00-000 PIN,PISTON 1 Rp33.500
7 09381-12001-000 SNAP RING 2 Rp12.500
8 12100-08K60-050 PISTON SET,OS 0.5 1 Rp178.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
