AVENIS 125

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEBATTERY HOLDERSTANDFOOTRESTFUEL TANKEVAP SYSTEMFUEL INLETFRONT LEG SHIELDSIDE LEG SHIELDREAR LEG SHIELDFRAME COVERHELMET BOXFRONT FENDERHANDLEBARHANDLE COVERHANDLE LEVERREAR FENDERLABELSEATOPTIONALOPTIONAL 1OPTIONAL

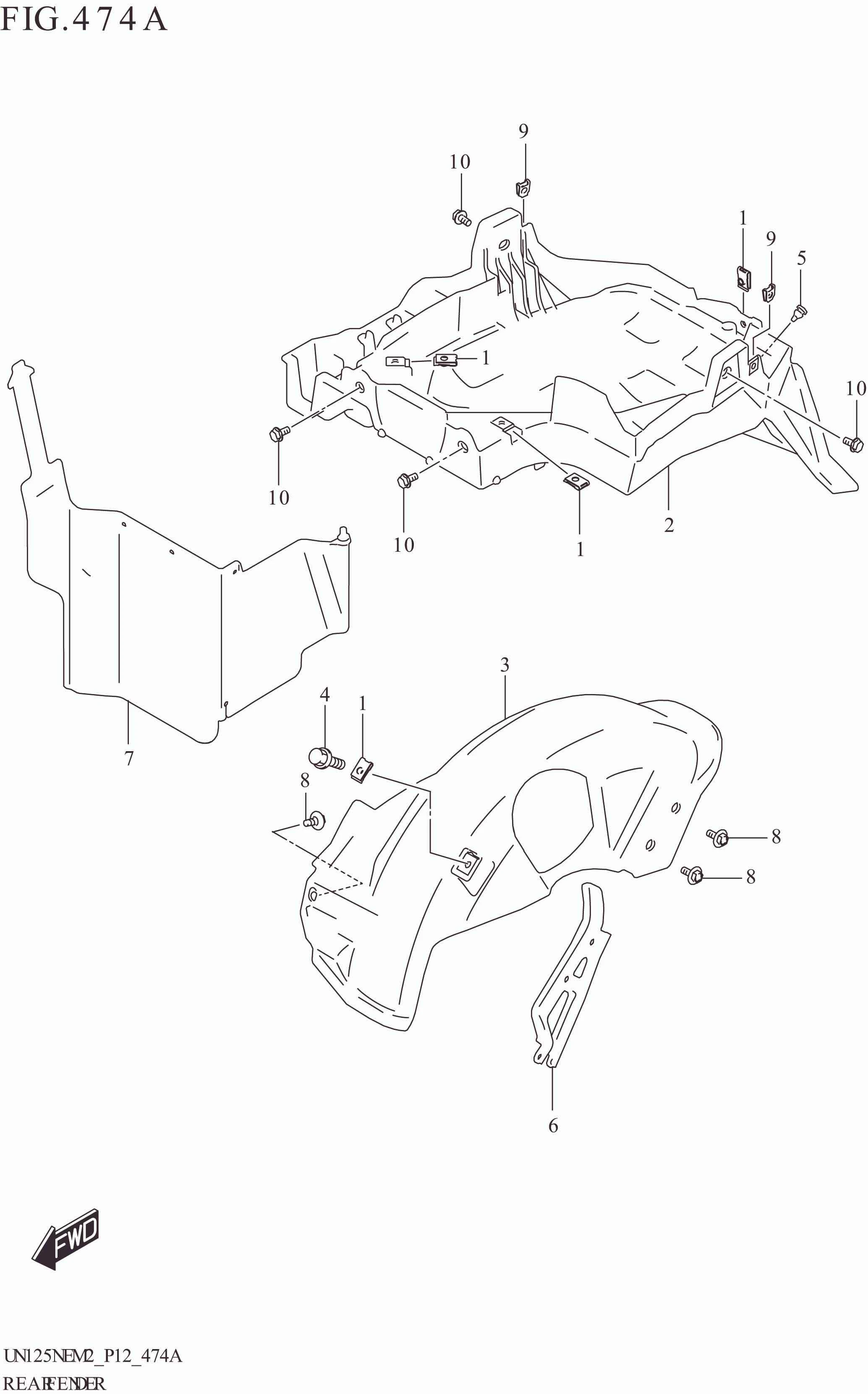

REAR FENDER

REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 35157-34J00-000 NUT (M6) 4 Rp5.500
2 63111-14L00-000 FENDER,REAR UPPER 1 Rp119.500
3 63112-44K00-000 FENDER,REAR LOWER 1 Rp100.000
4 63115-08K00-000 BOLT,REAR FENDER LOWER 1 Rp9.000
5 63118-41K00-000 PLUG,REAR FENDER 1 Rp9.000
6 63210-44K00-000 BRACE,REAR FENDER LOWER 1 Rp36.000
7 63411-14L00-000 MUDGUARD,REAR FENDER 1 Rp63.000
8 09111-06102-000 BOLT (6X14.8) 3 Rp3.500
9 09148-05060-000 NUT (M5) 2 Rp29.500
10 01550-0612A-000 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
