Preview Engine Transmission Electrical Suspension Body

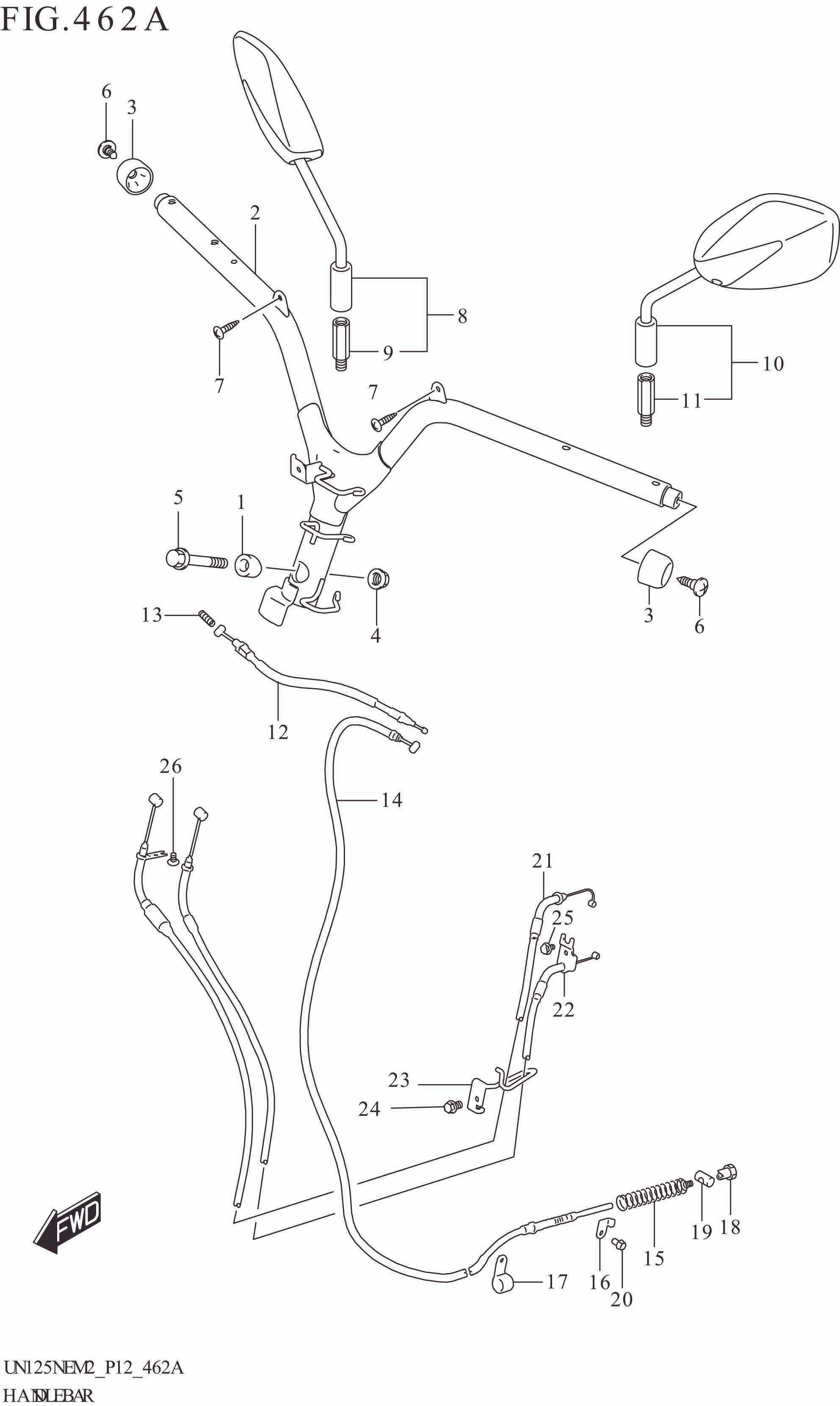

No	No. Part	Description	Qty	Price Per Pcs
1	51358-09G00-000	STOPPER,HANDLEBAR	1	Rp8.000
2	56110-14L00-000	HANDLEBAR	1	Rp286.000
3	57216-02L01-000	CAP,GRIP END	2	Rp3.500
4	64147-33G10-000	NUT,FR HUB	1	Rp15.000
5	09103-10126-000	BOLT (10X48)	1	Rp28.500
6	09139-06165-000	SCREW (6X16)	2	Rp9.000
7	03541-0516A-000	SCREW	2	Rp3.500
8	56500-34JA0-000	MIRROR ASSY,REAR VIEW,R	1	Rp72.000
9	56533-33G60-000	.ADAPTER,RR VIEW MIRROR	1	Rp21.500
10	56600-34JA0-000	MIRROR ASSY,REAR VIEW,L	1	Rp72.000
11	56533-33G60-000	.ADAPTER,RR VIEW MIRROR	1	Rp21.500
12	58110-14L00-000	CABLE,FRONT BRAKE	1	Rp75.000
13	58162-14L00-000	SPRING,FRONT BRAKE CABLE	1	Rp3.500
14	58510-44K20-000	CABLE,REAR BRAKE	1	Rp164.000
15	58562-08K00-000	SPRING,REAR BRAKE CABLE	1	Rp11.500
16	58575-39J00-000	PLATE,REAR BRAKE CABLE	1	Rp5.500
17	58577-39J10-000	CLAMP,RR BK CABLE CRKC FR	1	Rp21.500
18	09150-06010-000	NUT	1	Rp4.500
19	09209-11002-000	PIN (11X18)	1	Rp7.500
20	01547-0610A-000	BOLT	1	Rp3.000
21	58300-44K30-000	CABLE ASSY,THROTTLE NO.1	1	Rp104.500
22	58300-44K40-000	CABLE ASSY,THROTTLE NO.2	1	Rp134.500
23	58620-02L10-000	GUIDE,CABLE	1	Rp22.500
24	01547-0610A-000	BOLT	1	Rp3.000
25	01550-0510A-000	BOLT	1	Rp3.500
26	02142-0510A-000 SUB: 02142-0510B-000	SCREW	1	Rp4.000
