Preview Engine Transmission Electrical Suspension Body

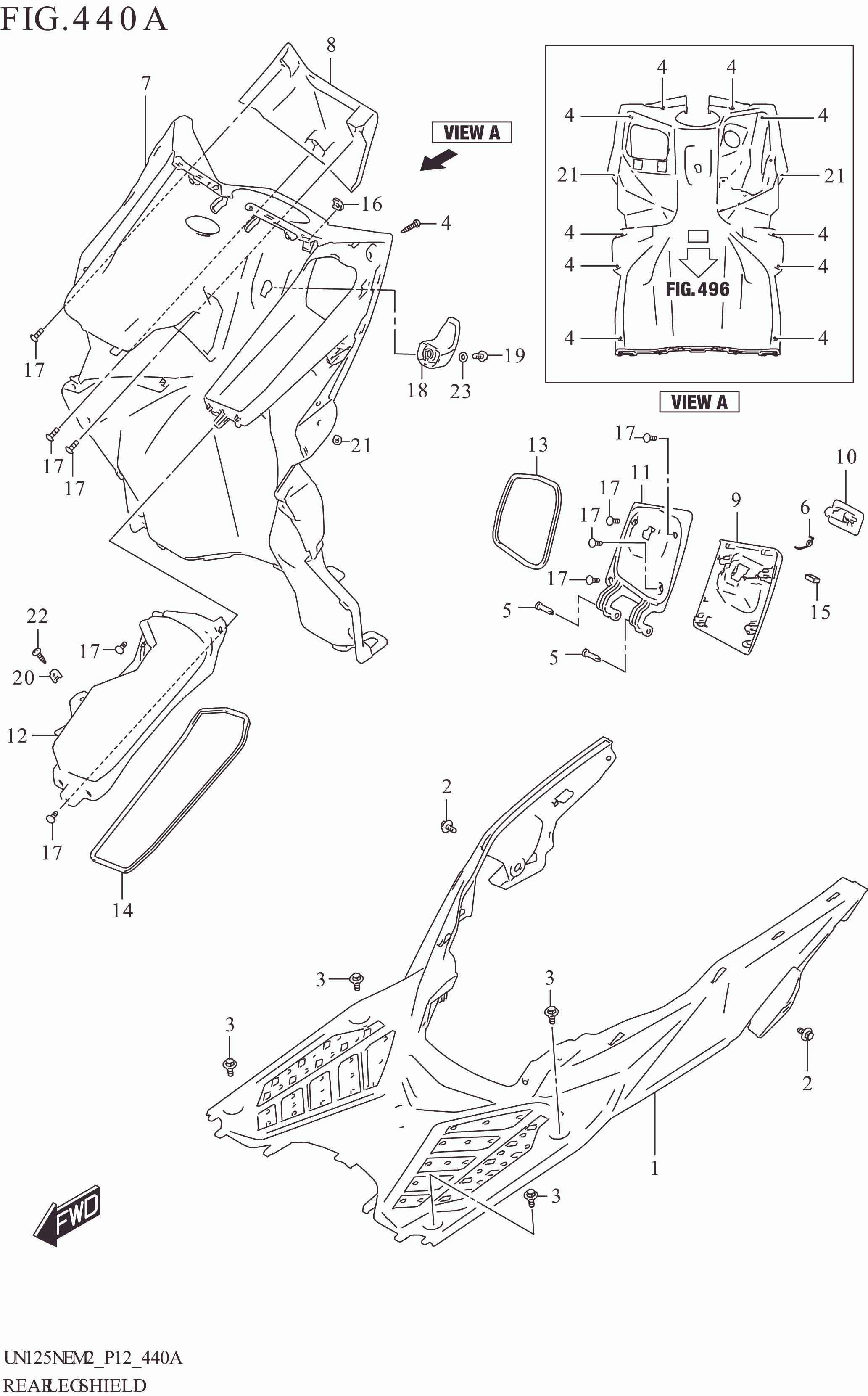

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	48121-14L00-000	FOOTBOARD,LEG SHIELD	1	Rp203.500
2	63115-08K10-000	BOLT (6X16)	2	Rp5.500
3	09111-06072-000	BOLT (6X17.8)	4	Rp3.500
4	03541-0520B-000	SCREW	10	Rp3.000
5	73423-50G00-000	PIN,GLOVE BOX HINGE	2	Rp30.000
6	73423-62D00-000	SPRING,GLOVE BOX LID	1	Rp39.500
7	92111-14L00-000	COVER,LEG SHIELD	1	Rp336.000
8	92112-14L00-000	RACK,LEG SHIELD	1	Rp37.000
9	92151-14L00-000	LID,FRONT PANEL	1	Rp24.500
10	92152-44K00-000	LOCK,FRONT PANEL BOX	1	Rp36.500
11	92153-14L00-000	LID,FRONT PANEL INNER	1	Rp31.000
12	92154-14L00-000	BOX,FRONT PANEL	1	Rp46.000
13	92155-44K00-000	CUSHION,FRONT BOX NO.1	1	Rp10.000
14	92156-14L00-000	CUSHION,FRONT BOX NO.2	1	Rp11.500
15	92158-44K00-000	CUSHION,FRONT BOX NO.4	1	Rp5.500
16	09148-05060-000	NUT (M5)	1	Rp29.500
17	03541-0516A-000	SCREW	9	Rp3.500
18	92171-08K00-291	HOOK,LEG SHIELD (BLACK)	1	Rp10.000
19	92172-44K00-000	BOLT,LEG SHIELD HOOK	1	Rp10.000
20	09148-05060-000	NUT (M5)	1	Rp29.500
21-1	09409-06L07-000	CLIP	2	Rp10.000	HARYANA
22	03541-0516A-000	SCREW	1	Rp3.500
23	08322-0106A-000	WASHER	1	Rp2.500
