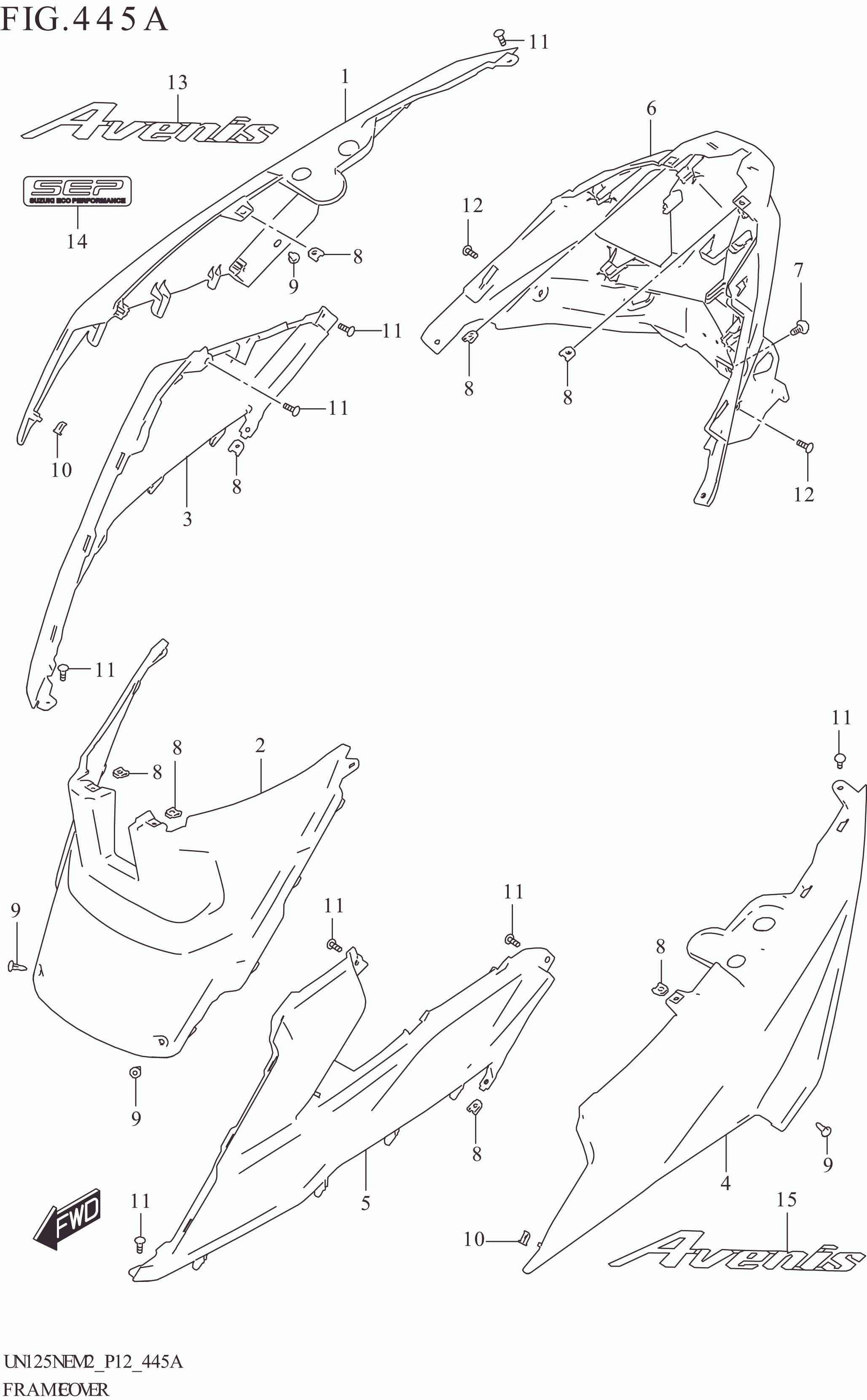

FRAME COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	47111-14L00-QVN	COVER,FRAME,R (ORANGE)	1	Rp438.000	9 COLOR:CC7
1-3	47111-14L00-PGZ	COVER,FRAME,R (GRAY)	1	Rp438.000	9 COLOR:CC8
1-4	47111-14L00-YKV	COVER,FRAME,R (BLACK)	1	Rp438.000	9 COLOR:KGL
1-1	47111-14L00-YPA	COVER,FRAME,R (WHITE)	1	Rp438.000	9 COLOR:A8D
2	47121-14L00-000	COVER,FRAME FRONT	1	Rp92.500
3-1	47131-14L00-PGZ	COVER,FRAME LOWER,R (GRAY)	1	Rp167.500	9 COLOR:A8D
3-2	47131-14L00-YVB	COVER,FRAME LOWER,R (BLACK)	1	Rp167.500	9 COLOR:CC7,KGL
3-3	47131-14L00-YRD	COVER,FRAME LOWER,R (GREEN)	1	Rp167.500	9 COLOR:CC8
4-1	47211-14L00-YPA	COVER,FRAME,L (WHITE)	1	Rp438.000	9 COLOR:A8D
4-2	47211-14L00-QVN	COVER,FRAME,L (ORANGE)	1	Rp438.000	9 COLOR:CC7
4-3	47211-14L00-PGZ	COVER,FRAME,L (GRAY)	1	Rp438.000	9 COLOR:CC8
4-4	47211-14L00-YKV	COVER,FRAME,L (BLACK)	1	Rp438.000	9 COLOR:KGL
5-1	47231-14L00-PGZ	COVER,FRAME LOWER,L (GRAY)	1	Rp167.500	9 COLOR:A8D
5-3	47231-14L00-YRD	COVER,FRAME LOWER,L (GREEN)	1	Rp167.500	9 COLOR:CC8
5-2	47231-14L00-YVB	COVER,FRAME LOWER,L (BLACK)	1	Rp167.500	9 COLOR:CC7,KGL
6	47311-14L00-000	COVER,FRAME CENTER	1	Rp108.000
7	94413-30H00-000	BOLT,COWLING LWR (6X16.5)	1	Rp9.000
8	09148-05060-000	NUT (M5)	8	Rp29.500
9-1	09409-06L07-000	CLIP	4	Rp10.000	HARYANA
10	09409-08009-000	CLIP	2	Rp8.000
11	03541-0516A-000	SCREW	8	Rp3.500
12	03541-0516B-000	SCREW	2	Rp13.000
13	68131-14L00-YVB	EMBLEM,FRAME COVER,R (BLACK)	1	Rp84.000
14	68136-39J00-000	EMBLEM,FRAME COVER	1	Rp5.500
15	68141-14L00-YVB	EMBLEM,FRAME COVER,L (BLACK)	1	Rp84.000
