Preview Engine Transmission Electrical Suspension Body

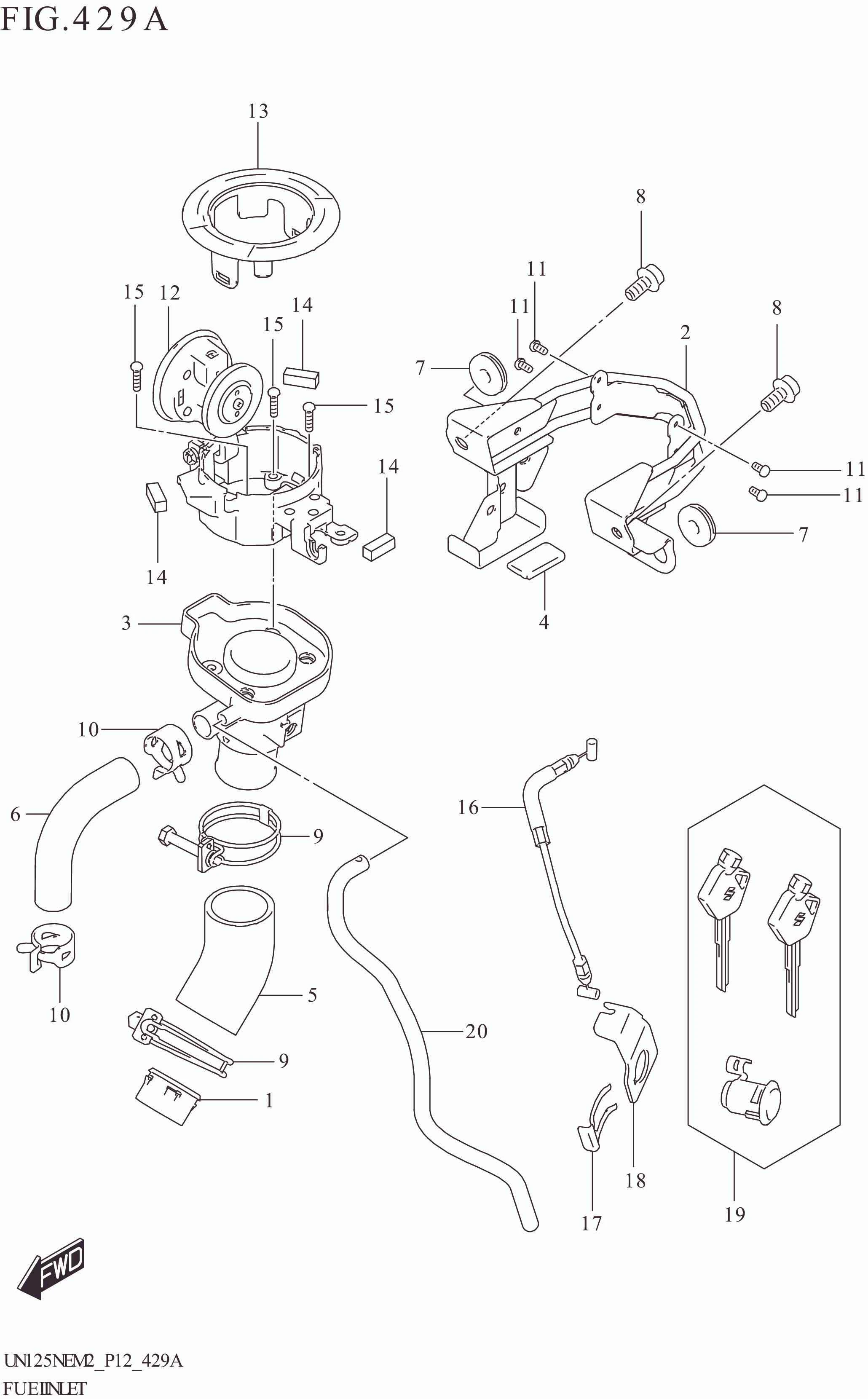

No	No. Part	Description	Qty	Price Per Pcs
1	89280-77A00-000	VALVE,FUEL TANK INLET	1	Rp107.000
2	44160-14L00-000	BRACKET,FUEL TANK INLET	1	Rp101.000
3	44190-14L10-000	INLET,FUEL TANK UPPER	1	Rp206.500
4	44281-02L00-000	CUSHION,FUEL TANK UPR 2	1	Rp4.000
5	44422-14L00-000	HOSE,FUEL TANK FILLER	1	Rp33.000
6	44424-14L00-000	HOSE,FUEL TANK AIR VENT	1	Rp18.000
7	47162-30H00-000	CUSHION (8X26X7)	2	Rp10.000
8	09106-08211-000	BOLT (8X16)	2	Rp4.500
9	09400-45L01-000	CLAMP,FUEL FILLER HOSE	2	Rp20.000
10	09401-20002-000	CLIP,BREATHER HOSE	2	Rp9.000
11	02112-04083-000 SUB: 02112-0408A-000	SCREW	4	Rp7.500
12	44210-14L00-000	CAP,FUEL TANK FILLER	1	Rp264.500
13	44218-14L00-000	COVER,FUEL TANK CAP	1	Rp41.000
14	44281-14L00-000	CUSHION,FUEL TANK FILLER CAP	3	Rp4.000
15	02112-0416A-000	SCREW	3	Rp12.500
16	44230-14L00-000	CABLE ASSY,FUEL TANK CAP	1	Rp20.000
17	44231-14L00-000	PLATE,TANK CAP LOCK CABLE	1	Rp3.000
18	45288-20G20-000	GUIDE,SEAT LOCK CABLE	1	Rp10.000
19	95700-14830-000	LOCK SET,FUEL TANK CAP	1	-
20	44423-14L00-000	HOSE,FUEL DRAIN	1	Rp17.500
