Preview Engine Transmission Electrical Suspension Body

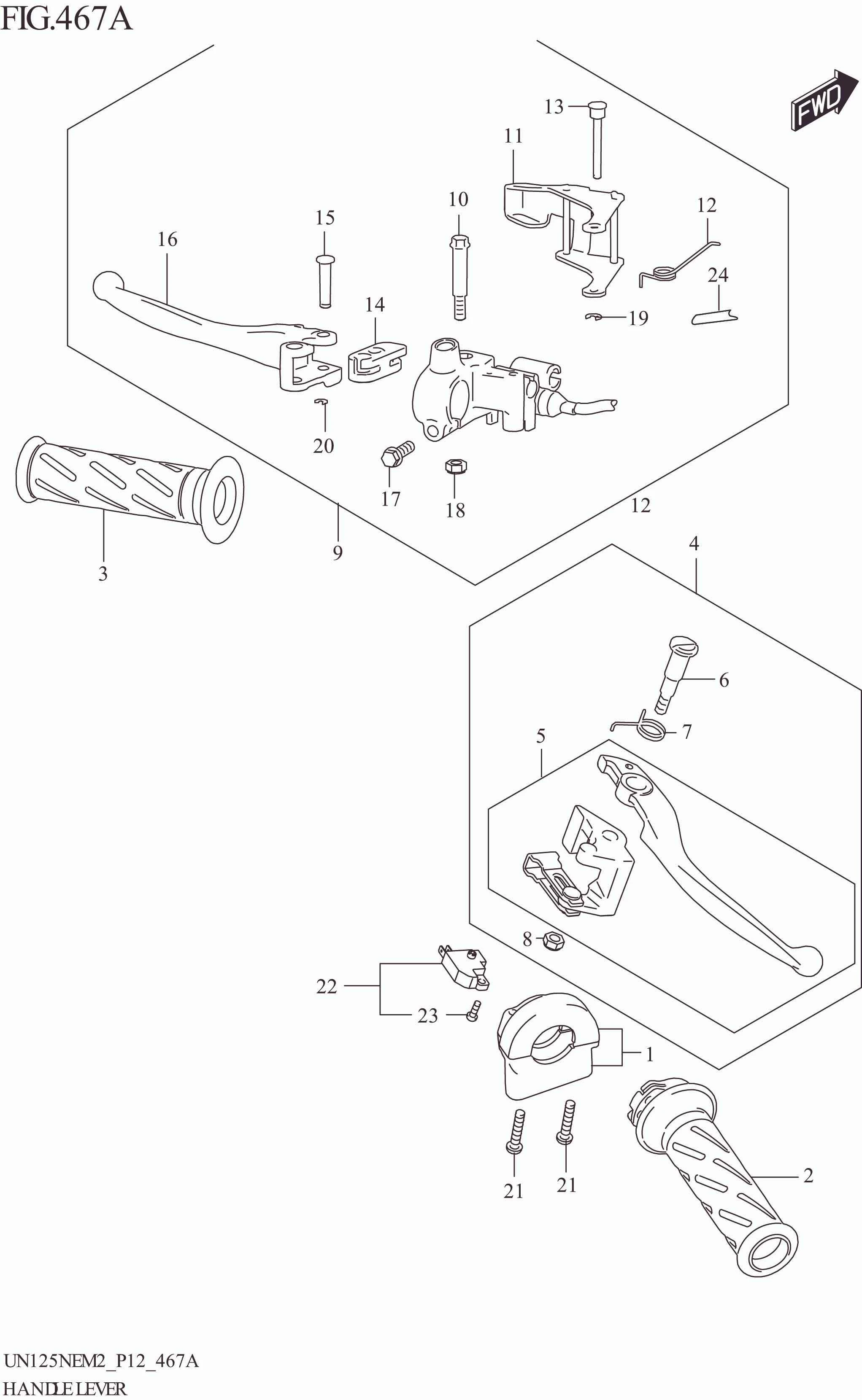

No	No. Part	Description	Qty	Price Per Pcs
1	57100-02L00-000	CASE ASSY,THROTTLE	1	Rp19.500
2	57110-30H10-000	GRIP,THROTTLE	1	Rp40.500
3	57211-22D11-000	GRIP,L	1	Rp39.000
4	57300-14L00-000	LEVER ASSY,FR BRAKE	1	Rp165.000
5	57420-14L00-000	.LEVER,BRAKE	1	Rp225.500
6	57431-14L00-000	.BOLT,BRAKE LEVER PIVOT	1	Rp41.500
7	57523-14L10-000	.SPRING,RETURN	1	Rp8.500
8	08319-2106A-000	.NUT	1	Rp5.000
9	57500-14L00-000	LEVER ASSY,RR BRAKE	1	Rp236.000
10	57431-14L10-000	.BOLT,BRAKE LEVER PIVOT	1	Rp11.500
11	57520-14L00-000	.LEVER,BRAKE LEVER STOPPER	1	Rp33.500
12	57523-14L00-000	.SPRING,BRAKE LEVER STOPPER	1	Rp5.500
13	57524-08K00-000	.PIN,BRAKE LEVER STOPPER	1	Rp4.500
14	57525-14L00-000	.EQUALIZER,BRAKE CABLE	1	Rp13.000
15	57526-14L00-000	.PIN,EQUALIZER	1	Rp7.000
16	57621-14L00-000	.LEVER,BRAKE,L	1	Rp38.500
17	01547-0620B-000 SUB: 01547-0620A-000	.BOLT	1	Rp6.500
18	08319-2106A-000	.NUT	1	Rp5.000
19	08332-1103A-000	.E RING	1	Rp13.500
20	08332-1104A-000	.E-RING	1	Rp9.500
21	02112-0525A-000	SCREW	2	Rp10.500
22	57460-14J10-000	SWITCH ASSY,FR BRAKE	1	Rp260.500
23	DISCONTINUE SUB: 57465-17C00-000	.SCREW,WITH WASHER (4X12)	1	-
24	37760-14L00-000	SWITCH ASSY, BRAKE	1	Rp132.000
