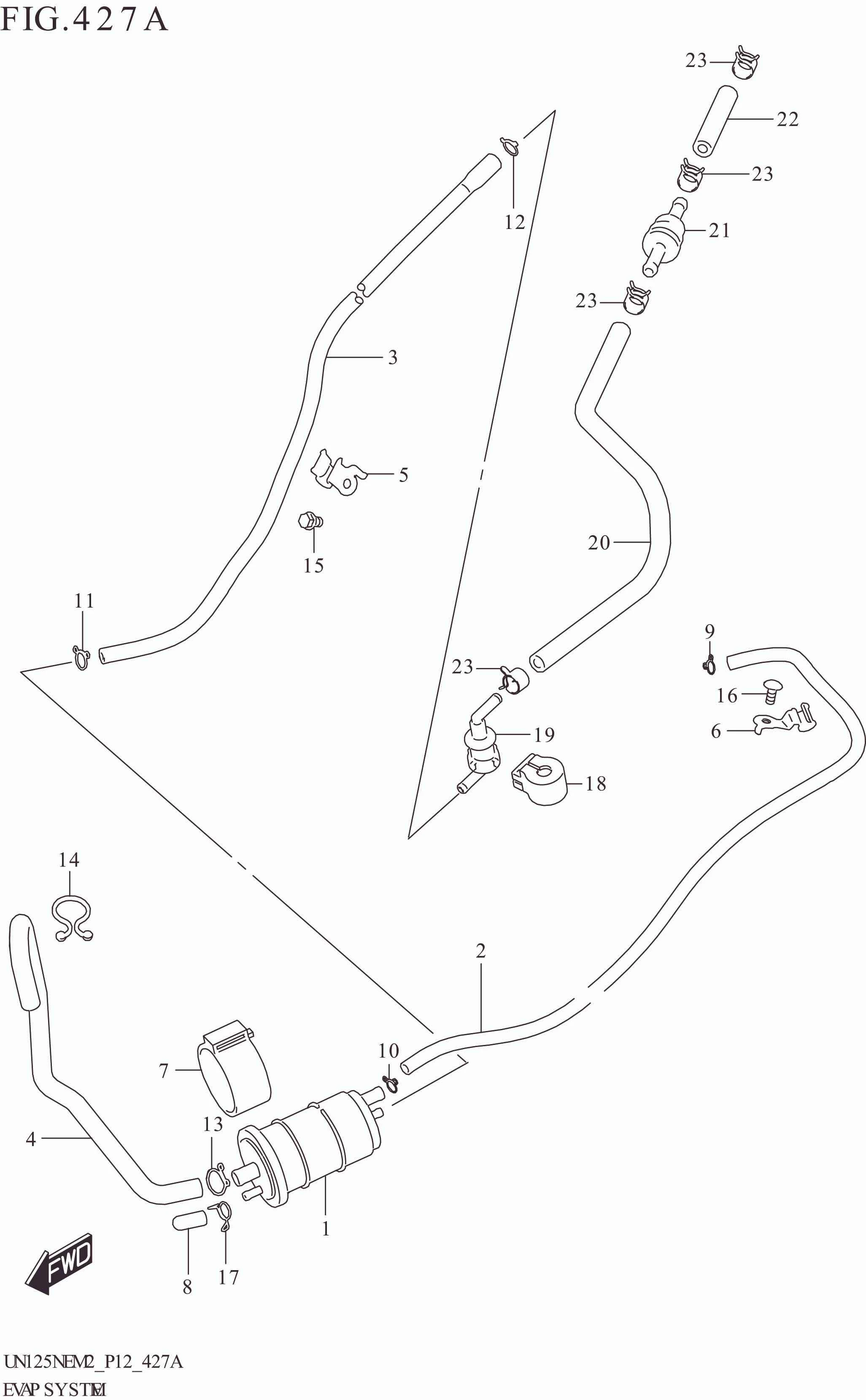

No	No. Part	Description	Qty	Price Per Pcs
1	18560-02L00-000	CANISTER ASSY,EVAP	1	Rp119.000
2	18561-14L00-000	HOSE,CSTR PURGE	1	Rp28.000
3	18563-02L00-000	HOSE,CSTR SURGE	1	Rp28.500
4	18567-02L00-000	HOSE,CSTR AIR	1	Rp22.000
5	18571-02L00-000	CLAMP,PURGE HOSE NO.1	1	Rp15.000
6	18572-02L00-000	CLAMP,PURGE HOSE NO.2	1	Rp15.000
7	18573-02L00-000	CUSHION,CANISTER	1	Rp30.000
8	09251-04004-000	CAP	1	Rp7.000
9	09401-08001-000	CLIP	1	Rp5.500
10	09401-09101-000	CLIP	1	Rp13.000
11	09401-09101-000	CLIP	1	Rp13.000
12	09401-10401-000	CLIP	1	Rp5.500
13	09401-13102-A05 SUB: 09401-13102-000	CLIP	1	Rp13.000
14	09408-00343-000	CLAMP	1	Rp8.500
15	01547-0610A-000	BOLT	1	Rp3.000
16	03541-0512A-000	SCREW	1	Rp3.500
17	09401-09406-000	CLIP	1	Rp5.500
18	44894-39J10-000	CUSHION, FUEL TANK BRTHR	1	Rp10.000
19	44240-13H00-000	VALVE,FUEL TANK BREATHER	1	Rp85.500
20	44434-14L00-000	HOSE,TANK & 2 WAY VALVE	1	Rp12.500
21	89485-771C0-000	VALVE,2 WAY CHECK	1	Rp195.000
22	44435-14L00-000	HOSE,CHECK VALVE & BRTH VALVE	1	Rp12.000
23	09401-09L03-000	CLIP (ID:9.4,H:8)	4	Rp5.000
