AVENIS 125

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEBATTERY HOLDERSTANDFOOTRESTFUEL TANKEVAP SYSTEMFUEL INLETFRONT LEG SHIELDSIDE LEG SHIELDREAR LEG SHIELDFRAME COVERHELMET BOXFRONT FENDERHANDLEBARHANDLE COVERHANDLE LEVERREAR FENDERLABELSEATOPTIONALOPTIONAL 1OPTIONAL

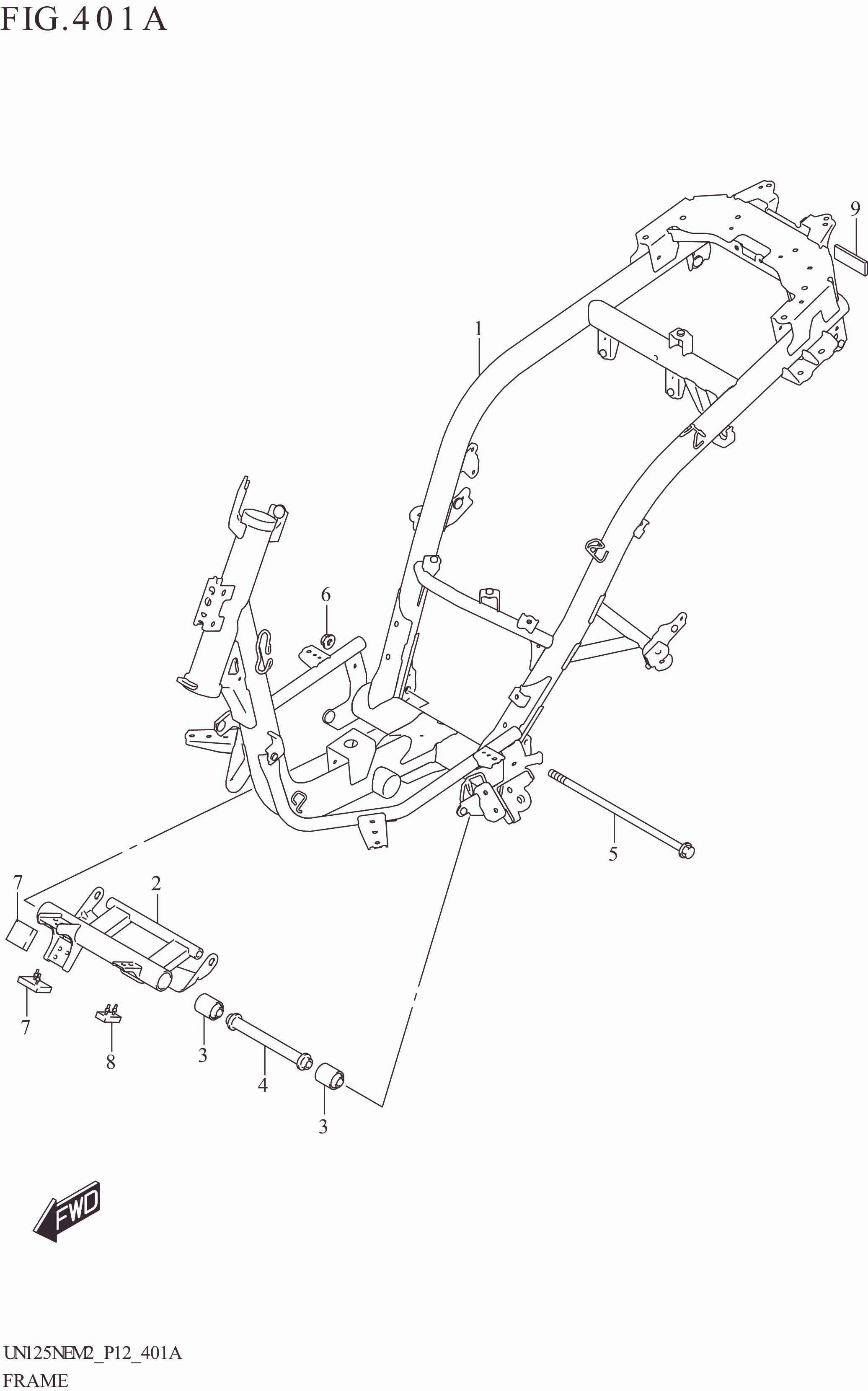

FRAME

FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-14L00-000 FRAME 1 Rp2.308.500
2 41180-02L00-000 BRACKET,CRANKCASE 1 Rp325.000
3 41184-39J00-000 BUSH,CRANKCASE BRKT 2 Rp35.500
4 41170-09J10-000 SPACER,CRANKCASE BRKT 1 Rp22.000
5 41189-39J00-000 BOLT,CRANKCASE BRKT (10X255) 1 Rp58.000
6 08319-3110A-000 NUT 1 Rp4.500
7 41185-08K00-000 CUSHION,SWING STOP 1 Rp10.000
8 41185-09J10-000
SUB: 41185-09J00-000		 CUSHION 2 Rp11.500
9 33652-34J00-000 PROTECTOR 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
