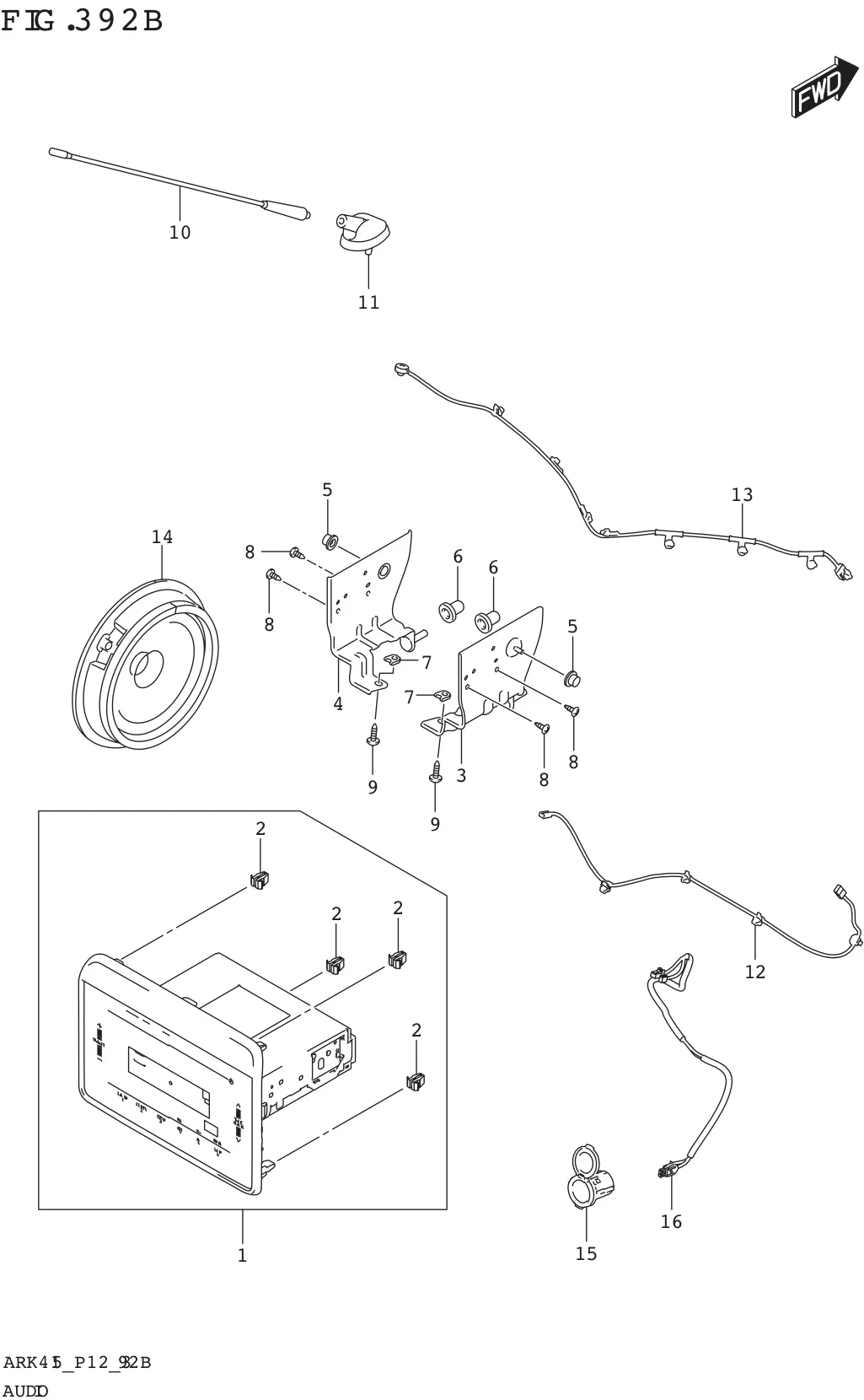

FIG. 392B AUDIO (W/TUNER)

FIG. 392B AUDIO (W/TUNER)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	39101-73R42-ZCA SUB: 39101-73R20-ZCA	TUNER ASSY (BLACK)	1	Rp5.540.500
2	09409-08351-000	.CLIP	4	Rp21.000
3	39321-73R10-000	BRACKET,TUNER,R	1	Rp25.000
4	39322-73R10-000	BRACKET,TUNER,L	1	Rp25.000
5	34955M54G10-000	BUSH,RADIO BRKT	2	Rp6.500
6	34955-59J00-000	BUSH,RADIO BRKT	2	Rp18.500
7	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	2	Rp4.000
8	02142-0508A-000 SUB: 02142B0508AN000	SCREW	4	Rp3.500
9	03541-0516A-000	SCREW	2	Rp3.500
10	39251-77M00-000 SUB: 39251B77M00N000	ROD, ANTENNA	1	Rp130.500
11	39253-77M00-000 SUB: 39253B77M00N000	BASE, ANTENNA	1	Rp290.000
12	39270-73R00-000	FEEDER,I/P	1	Rp80.500
13	39271-73R00-000	FEEDER,ROOF	1	Rp157.500
14	39102-73R00-000	SPEAKER ASSY	4	Rp128.000
15	39105-73R00-5PK	SOCKET,USB & AUX (BLACK)	1	Rp250.000
16	39106-73R00-000	CABLE,USB & AUX	1	Rp449.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
