  5. FIG. 351A ELECTRICAL CONTROL INSTRUMENTAL PANEL

ALL NEW ERTIGA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A ENGINE ELECTRICALFIG. 302A STARTING MOTORFIG. 304A GENERATORFIG. 320A BATTERY (5MT)FIG. 320B BATTERY (4AT)FIG. 324A SPEEDOMETER ((GA,GL):5MT)FIG. 324B SPEEDOMETER (GL:4AT)FIG. 324C SPEEDOMETER (GX:5MT)FIG. 324D SPEEDOMETER (GX:4AT)FIG. 330A HEADLAMPFIG. 332A FRONT FOG LAMP (W/FR_FOG)FIG. 336A REAR LAMPFIG. 338A ROOM LAMP (GA)FIG. 338B ROOM LAMP (GL,GX)FIG. 344A ENGINE ROOM HARNESS (5MT)FIG. 344B ENGINE ROOM HARNESS (4AT)FIG. 348A ENGINE HARNESS BRACKET (5MT)FIG. 348B ENGINE HARNESS BRACKET (4AT)FIG. 34PA WIRING HARNESS REAR SIDEFIG. 34WA BODY HARNESSFIG. 350A ELECTRICAL CONTROL BODYFIG. 351A ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A LOCK SET (N/PU_STA:5MT)FIG. 360B LOCK SET (N/PU_STA:4AT)FIG. 360C LOCK SET (W/PU_STA)FIG. 370A FRONT WINDOW WIPERFIG. 374A WINDOW WASHERFIG. 376A REAR WINDOW WIPERFIG. 392A AUDIO (N/TUNER)FIG. 392B AUDIO (W/TUNER)FIG. 392C AUDIO (W/HEAD UNIT)

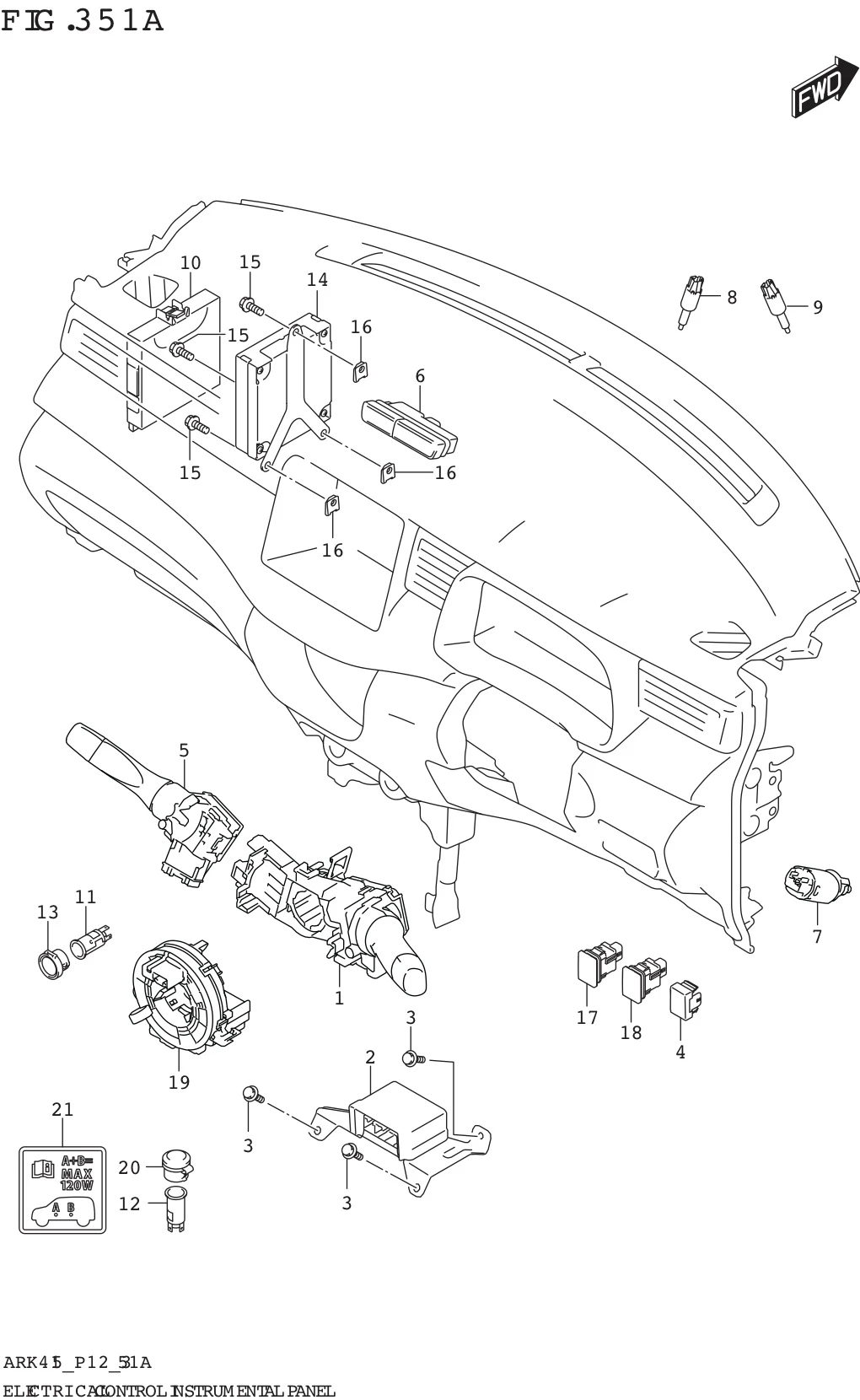

FIG. 351A ELECTRICAL CONTROL INSTRUMENTAL PANEL

FIG. 351A ELECTRICAL CONTROL INSTRUMENTAL PANEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 37210-73R10-000 SWITCH ASSY,LIGHTING & TURN 1 Rp213.000 GX
1-1 37210-73R00-000 SWITCH ASSY,LIGHTING & TURN 1 Rp162.500 GA,GL
2 38910-73R00-000 CONTROLLER ASSY,A/B 1 Rp751.000
3 09115-06004-000 BOLT (6X16) 3 Rp19.500
4 37285M66R00-000 CAP,OPTION SW HOLE 0 Rp5.500
5 37310-73R10-000 SWITCH ASSY,WIPER & WASHER 1 Rp225.000
6 37430M68P20-000 SWITCH ASSY,HAZARD & A/B IND 1 Rp235.500
7 37740-73R00-000 SET,STOP LAMP SW 1 Rp200.500
8 37970M74L02-000
SUB: 37970M74L01-000		 SWITCH ASSY, CLUTCH 1 Rp165.500 5MT
9 37970M71M02-000
SUB: 37970M71M00-000		 SWITCH ASSY, CLUTCH START 1 Rp86.500 GX:5MT
10-3 36775-73RC0-000 CONTROLLER ASSY,BODY ELEC 1 Rp1.406.000 GX
10-2 36775-73R10-000 CONTROLLER ASSY,BODY ELEC 1 Rp1.310.500 GL
10-1 36775-73R50-000 CONTROLLER ASSY,BODY ELEC 1 Rp1.293.000 GA
11 39420-76F00-000 BODY,SOCKET 1 Rp103.000
12 39420-76F00-000 BODY,SOCKET 1 Rp103.000 GL,GX
13 39440M56R20-5PK COVER,SOCKET (BLACK) 1 Rp18.000
14 38880-72R11-000 CONTROLLER ASSY,AT 1 Rp9.303.000 4AT
15 09132-05052-000 SCREW (5X16) 3 Rp20.500 4AT
16 09148-05045-000
SUB: 09148B05045N000		 NUT (M5) 3 Rp4.000 4AT
17 37775M66R00-000 SWITCH ASSY,PARK SNSR 1 Rp120.000 GL,GX
18 37585M66R00-000 SWITCH ASSY,ESP OFF 1 Rp103.000 W/ESP
19-1 37410-73R00-000 SET,CONTACT COIL & SAS 1 Rp1.087.000 GA
19-2 37410-73R10-000 SET,CONTACT COIL & SAS 1 Rp1.149.000 GL,GX
20 39441-67L00-5PK
SUB: 39441B67L00N5PK		 COVER, SOCKET (BLACK) 1 Rp16.500 GL,GX
21 39442-73R00-000 LABEL,ACC SOCKET 1 Rp4.000 GL,GX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
