ALL NEW ERTIGA

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 300A ENGINE ELECTRICAL FIG. 302A STARTING MOTOR FIG. 304A GENERATOR FIG. 320A BATTERY (5MT)FIG. 320B BATTERY (4AT)FIG. 324A SPEEDOMETER ((GA,GL):5MT)FIG. 324B SPEEDOMETER (GL:4AT)FIG. 324C SPEEDOMETER (GX:5MT)FIG. 324D SPEEDOMETER (GX:4AT)FIG. 330A HEADLAMP FIG. 332A FRONT FOG LAMP (W/FR_FOG)FIG. 336A REAR LAMP FIG. 338A ROOM LAMP (GA)FIG. 338B ROOM LAMP (GL,GX)FIG. 344A ENGINE ROOM HARNESS (5MT)FIG. 344B ENGINE ROOM HARNESS (4AT)FIG. 348A ENGINE HARNESS BRACKET (5MT)FIG. 348B ENGINE HARNESS BRACKET (4AT)FIG. 34PA WIRING HARNESS REAR SIDE FIG. 34WA BODY HARNESS FIG. 350A ELECTRICAL CONTROL BODY FIG. 351A ELECTRICAL CONTROL INSTRUMENTAL PANEL FIG. 360A LOCK SET (N/PU_STA:5MT)FIG. 360B LOCK SET (N/PU_STA:4AT)FIG. 360C LOCK SET (W/PU_STA)FIG. 370A FRONT WINDOW WIPER FIG. 374A WINDOW WASHER FIG. 376A REAR WINDOW WIPER FIG. 392A AUDIO (N/TUNER)FIG. 392B AUDIO (W/TUNER)FIG. 392C AUDIO (W/HEAD UNIT)

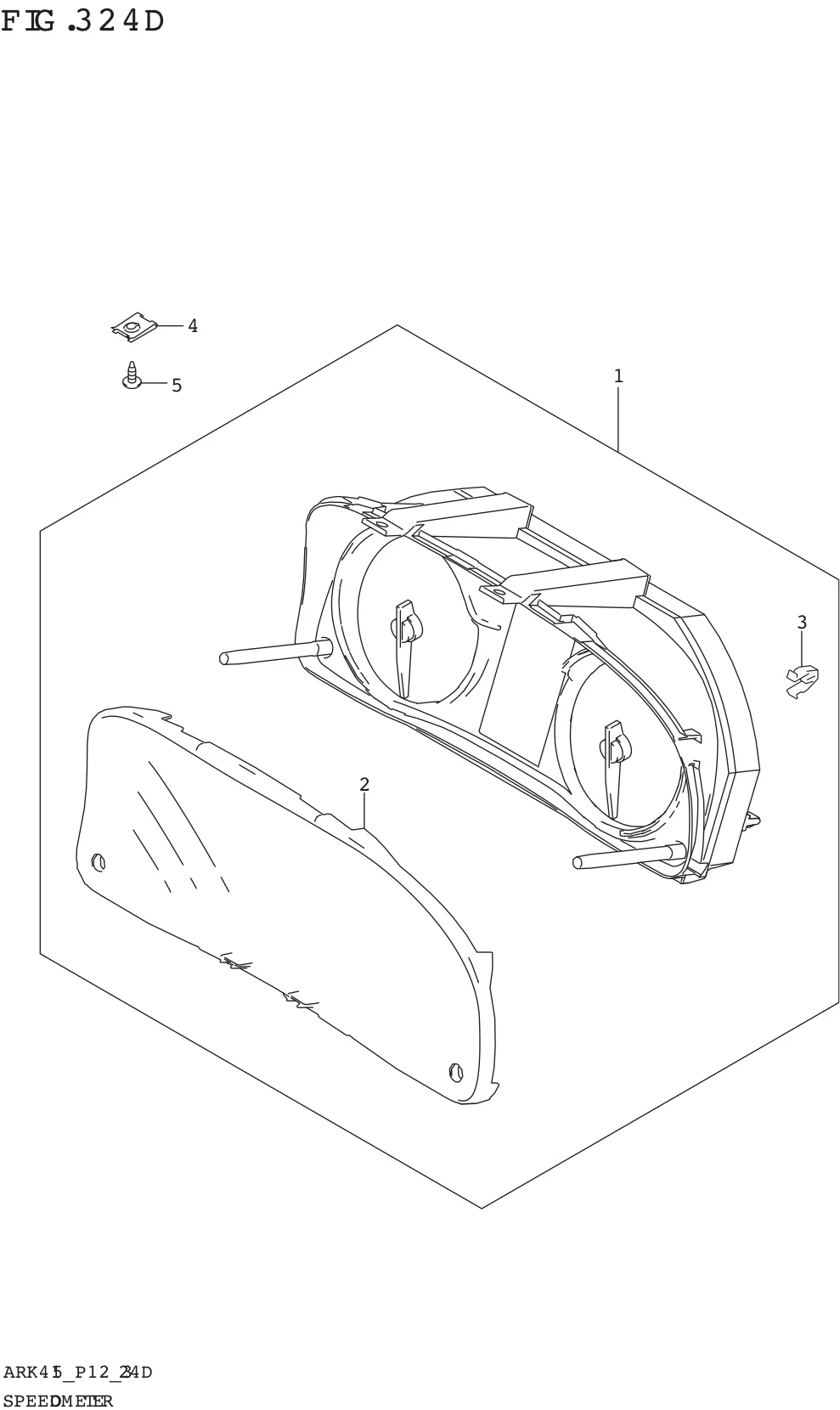

FIG. 324D SPEEDOMETER (GX:4AT)

FIG. 324D SPEEDOMETER (GX:4AT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	34100-73RN0-000	SPEEDOMETER ASSY,COMB	1	Rp1.627.000	N/ESP
1-2	34100-73RP0-000	SPEEDOMETER ASSY,COMB	1	Rp1.703.500	W/ESP
2	34112-73R00-000	.GLASS,METER WINDOW	1	Rp39.000
3	09409-08351-000	.CLIP	2	Rp21.000
4	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	2	Rp4.000
5	03541-0516A-000	SCREW	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
