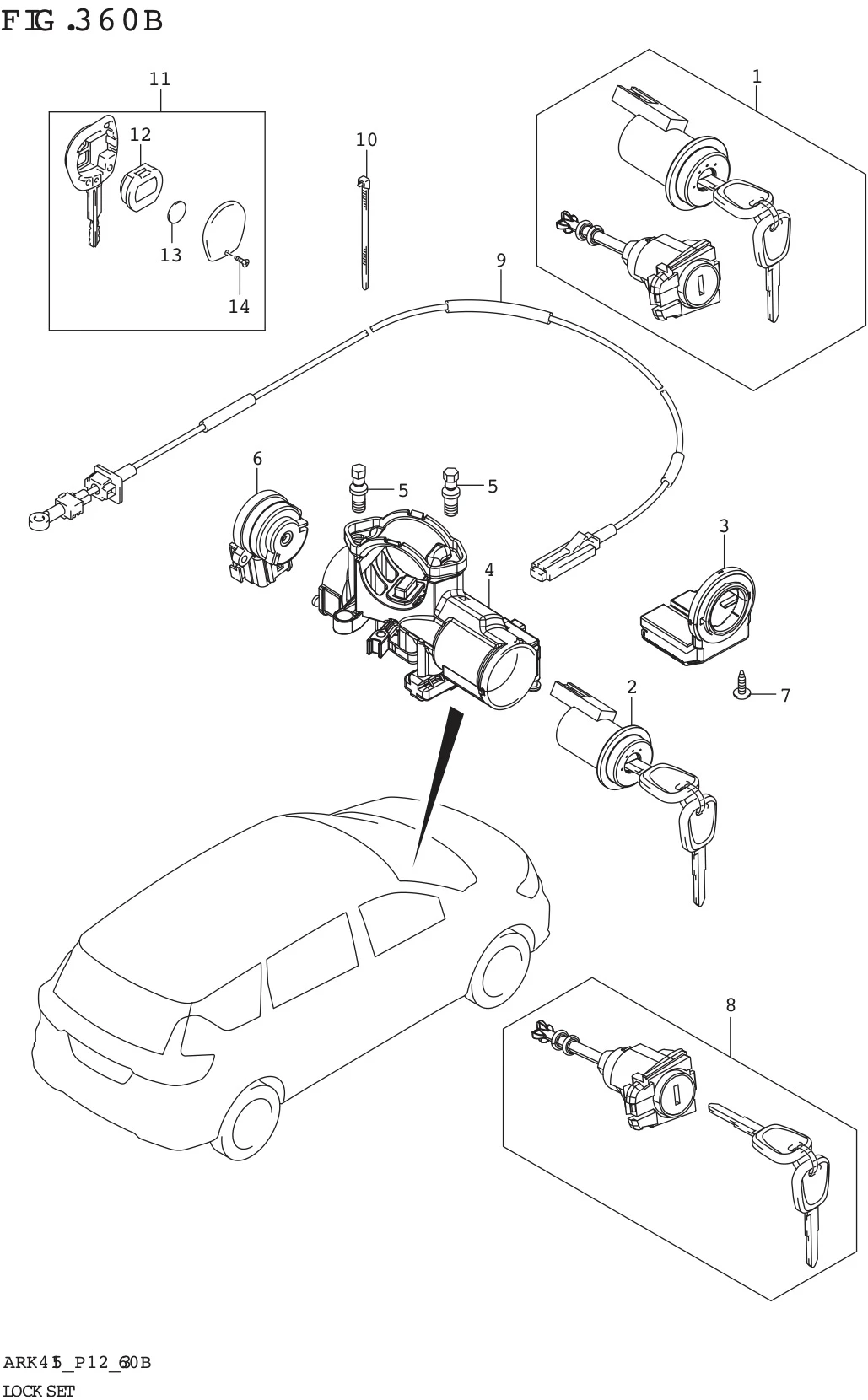

FIG. 360B LOCK SET (N/PU_STA:4AT)

FIG. 360B LOCK SET (N/PU_STA:4AT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37104-73850-000	LOCK SET	1	Rp384.000
2	37104-73860-000	LOCK ASSY,STEERING	1	Rp300.500
3	33970-73R10-000	CONTROLLER ASSY,IMM	1	Rp169.500
4	37101-73R10-000	BODY,STEERING LOCK	1	Rp457.000
5	37152-59R00-000	.BOLT, STEERING LOCK	2	Rp6.000
6	37111-59R00-000	SWITCH	1	Rp127.500
7	37152-59R10-000	SCREW, IMM CONT	1	Rp4.500
8	82270-73860-000	CYLINDER SET,FR DR LATCH,R	1	Rp337.500
9	28551-73R10-000	CABLE,KEY INTERLOCK	1	Rp428.500
10	28553-82M10-000	.CLAMP,KEY INTERLOCK CABLE	1	Rp25.500
11	37145-73R10-000	KEY,BLANK	1	Rp124.000	OPT
12	37182-73R00-000	.SWITCH ASSY,TRANSMITTER	2	Rp158.500
13	37185-54G10-000	..BATTERY (CR1616)	2	Rp32.000
14	37186-59R00-000	.SCREW	2	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
