ALL NEW ERTIGA

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 300A ENGINE ELECTRICAL FIG. 302A STARTING MOTOR FIG. 304A GENERATOR FIG. 320A BATTERY (5MT)FIG. 320B BATTERY (4AT)FIG. 324A SPEEDOMETER ((GA,GL):5MT)FIG. 324B SPEEDOMETER (GL:4AT)FIG. 324C SPEEDOMETER (GX:5MT)FIG. 324D SPEEDOMETER (GX:4AT)FIG. 330A HEADLAMP FIG. 332A FRONT FOG LAMP (W/FR_FOG)FIG. 336A REAR LAMP FIG. 338A ROOM LAMP (GA)FIG. 338B ROOM LAMP (GL,GX)FIG. 344A ENGINE ROOM HARNESS (5MT)FIG. 344B ENGINE ROOM HARNESS (4AT)FIG. 348A ENGINE HARNESS BRACKET (5MT)FIG. 348B ENGINE HARNESS BRACKET (4AT)FIG. 34PA WIRING HARNESS REAR SIDE FIG. 34WA BODY HARNESS FIG. 350A ELECTRICAL CONTROL BODY FIG. 351A ELECTRICAL CONTROL INSTRUMENTAL PANEL FIG. 360A LOCK SET (N/PU_STA:5MT)FIG. 360B LOCK SET (N/PU_STA:4AT)FIG. 360C LOCK SET (W/PU_STA)FIG. 370A FRONT WINDOW WIPER FIG. 374A WINDOW WASHER FIG. 376A REAR WINDOW WIPER FIG. 392A AUDIO (N/TUNER)FIG. 392B AUDIO (W/TUNER)FIG. 392C AUDIO (W/HEAD UNIT)

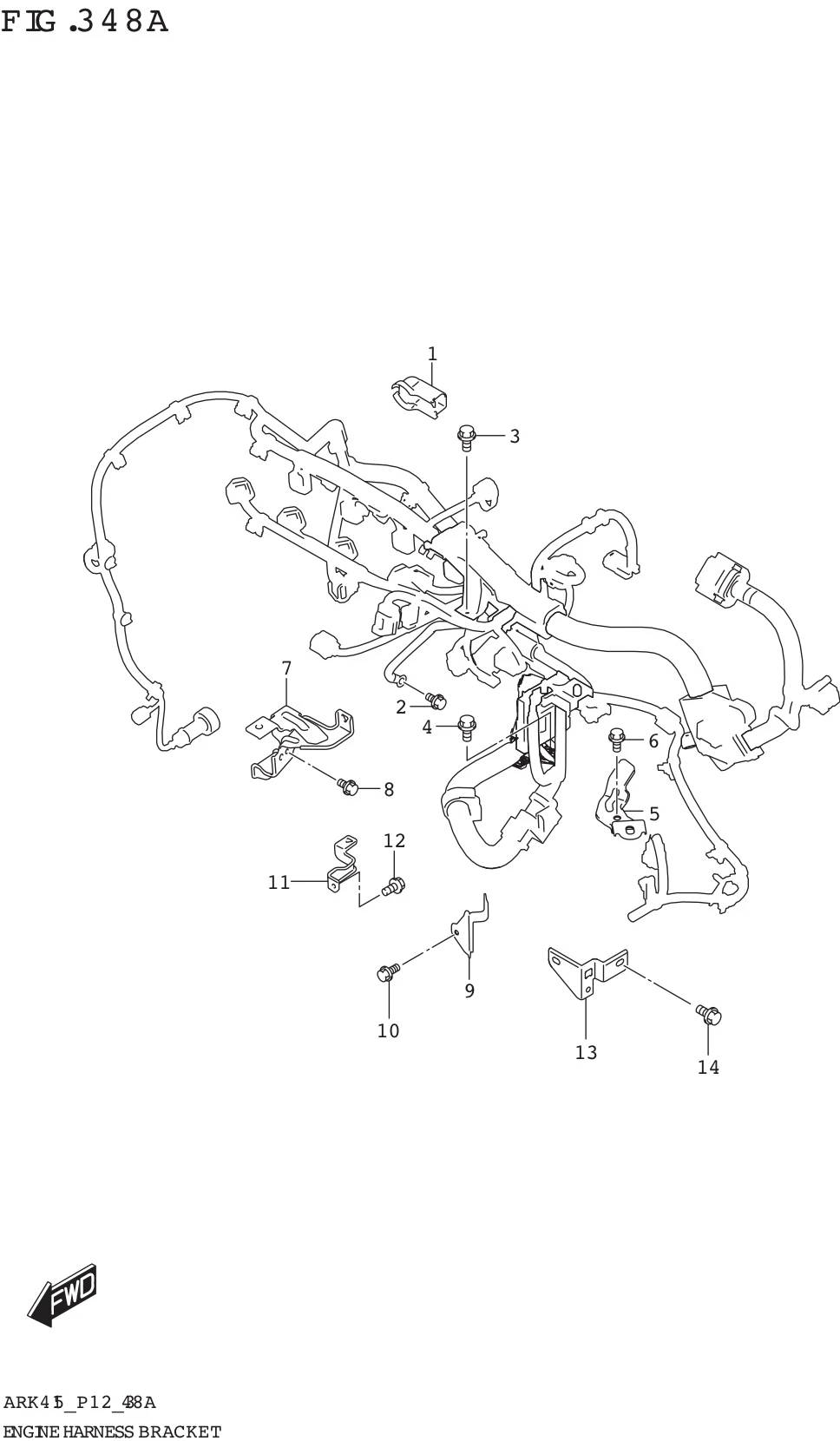

FIG. 348A ENGINE HARNESS BRACKET (5MT)

FIG. 348A ENGINE HARNESS BRACKET (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36997-72M00-000	COVER,TERMINAL	1	Rp71.500
2	01550M0612A-000	BOLT (6X12)	1	Rp5.000
3	01550-0616A-000	BOLT (6X16)	1	Rp3.500
4	01550-0616A-000	BOLT (6X16)	1	Rp3.500
5	36651-72R10-000	BRACKET,ENG HARN MT	1	Rp16.000
6	01550M0612A-000	BOLT (6X12)	1	Rp5.000
7	36653M62R00-000	BRACKET,ENG HARN PROTECTOR	1	Rp40.000
8	01550M0612A-000	BOLT (6X12)	1	Rp5.000
9	36651M68P00-000	BRACKET,ENG HARN MT	1	Rp9.500
10	01550M0612A-000	BOLT (6X12)	1	Rp5.000
11	36653M68P80-000	BRACKET,ENG HARN	1	Rp8.500
12	01550M0612A-000	BOLT (6X12)	1	Rp5.000
13	36651M61MB0-000	BRACKET,ENG HARN BACK	1	Rp12.500
14	01550M0612A-000	BOLT (6X12)	1	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
