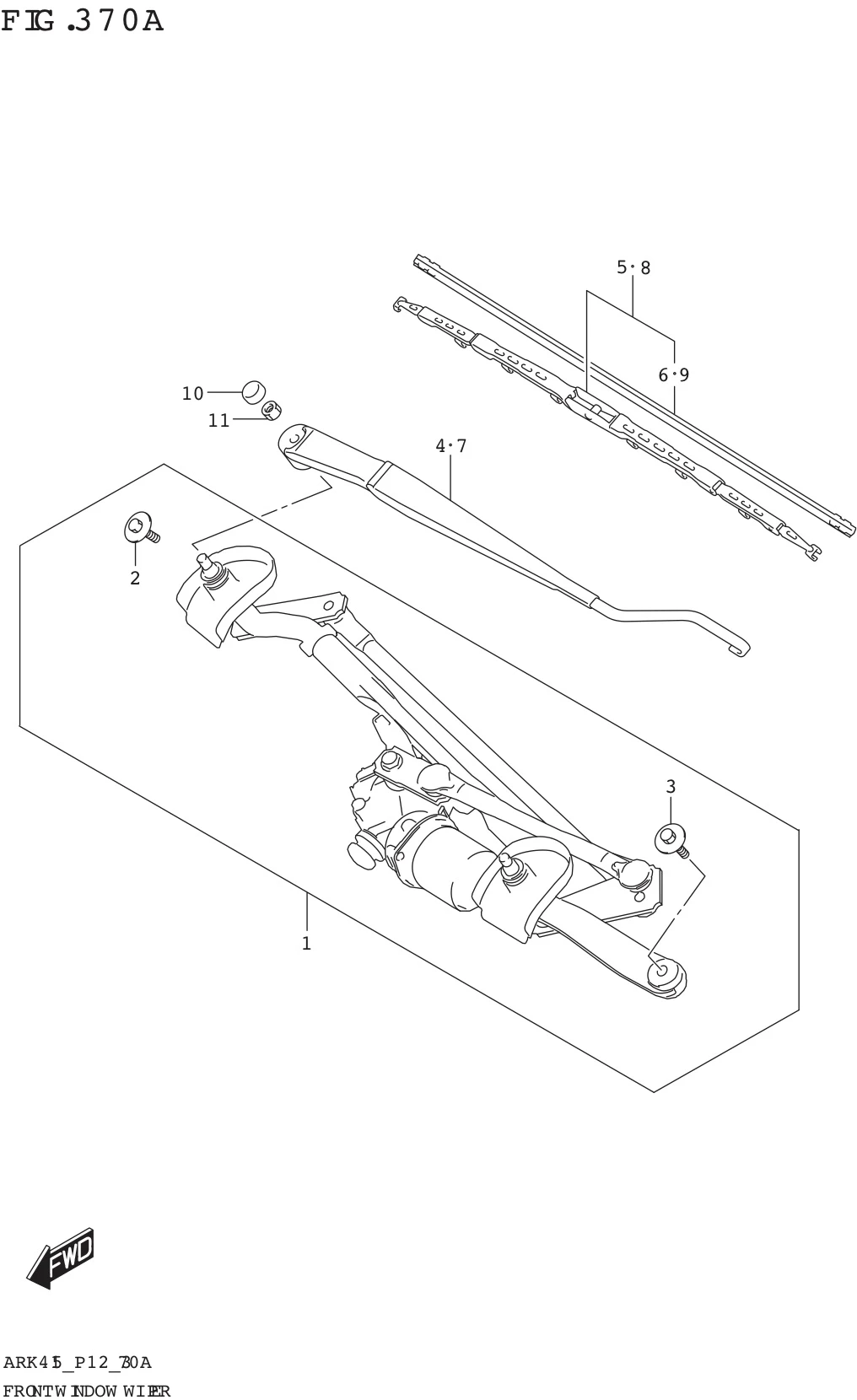

FIG. 370A FRONT WINDOW WIPER

FIG. 370A FRONT WINDOW WIPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	38100-73R10-000	WIPER ASSY,WINDSHIELD	1	Rp937.500
2	38116M72J00-000	.BOLT,WIPER DRIVER	1	Rp48.000
3	38116-82K00-000	.BOLT,WIPER ASST	1	Rp53.000
4	38310-73R10-000	ARM ASSY,WIPER DRVR	1	Rp157.500
5	38340-73R10-000	BLADE ASSY,WIPER	1	Rp88.500
6	38346-73R00-000	.RUBBER,BLADE	1	Rp24.500
7	38340-73R30-000	BLADE ASSY,WIPER ASST	1	Rp115.500
8	38346-73R10-000	.RUBBER,BLADE	1	Rp22.000
9	38330-73R10-000	ARM ASSY,WIPER ASST	1	Rp149.500
10	38315-67L10-000 SUB: 38315B67L10N000	CAP,WIPER PIVOT	2	Rp4.500
11	08310-0008A-000	NUT	2	Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
