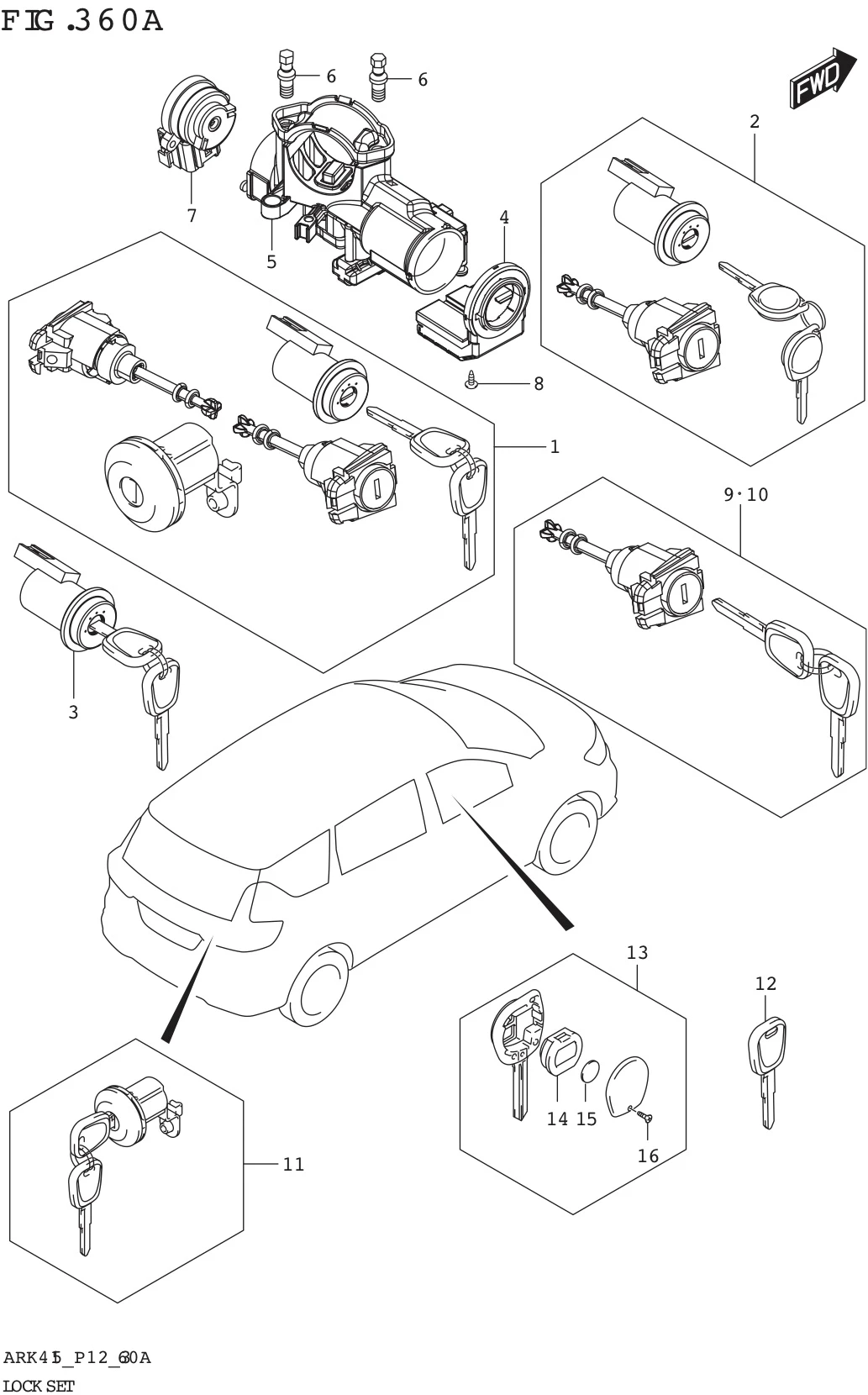

FIG. 360A LOCK SET (N/PU_STA:5MT)

FIG. 360A LOCK SET (N/PU_STA:5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37104-73810-000	LOCK SET	1	Rp636.000	GA
2	37104-73830-000	LOCK SET	1	Rp375.000	GL
3-1	37104-73820-000	LOCK ASSY,STEERING	1	Rp378.500	GA
3-2	37104-73840-000	LOCK ASSY,STEERING	1	Rp295.500	GL
4	33970-73R00-000	CONTROLLER ASSY,IMM	1	Rp169.500
5	37101-73R00-000	BODY,STEERING LOCK	1	Rp450.500
6	37152-59R00-000	.BOLT, STEERING LOCK	2	Rp6.000
7	37111-59R00-000	SWITCH	1	Rp127.500
8	37152-59R10-000	SCREW, IMM CONT	1	Rp4.500
9	82280-73860-000	CYLINDER SET,FR DR LATCH,L	1	Rp336.000	GA
10	82270-73860-000	CYLINDER SET,FR DR LATCH,R	1	Rp337.500
11	82500-73810-000	CYLINDER SET,BACK DR LOCK	1	Rp336.000	GA
12	37145-73R00-000	KEY,BLANK	1	Rp228.500	GA OPT
13	37145-73R10-000	KEY,BLANK	1	Rp124.000	GL OPT
14	37182-73R00-000	.SWITCH ASSY,TRANSMITTER	2	Rp158.500	GL
15	37185-54G10-000	..BATTERY (CR1616)	2	Rp32.000	GL
16	37186-59R00-000	.SCREW	2	Rp4.500	GL

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
