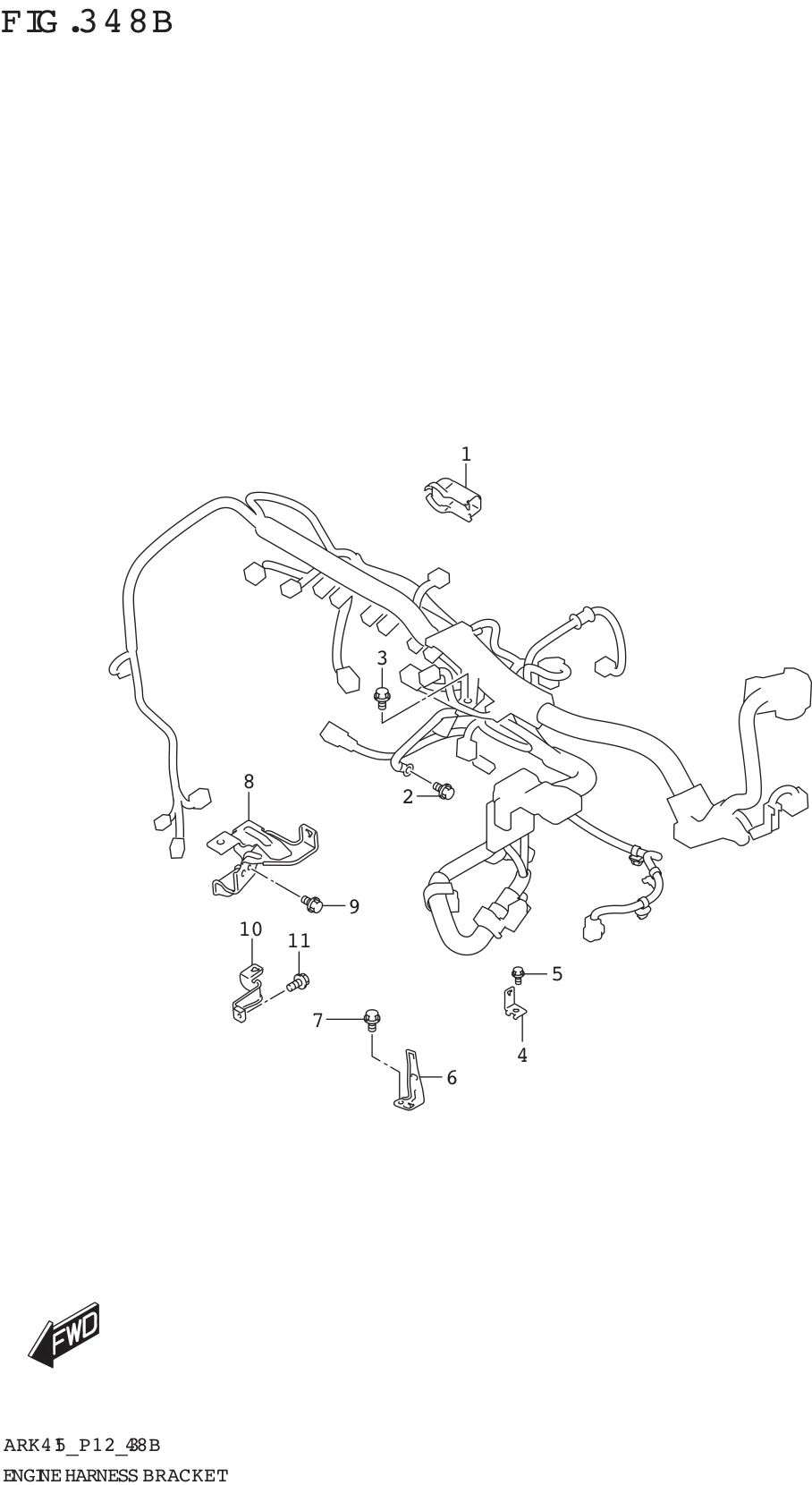

FIG. 348B ENGINE HARNESS BRACKET (4AT)

FIG. 348B ENGINE HARNESS BRACKET (4AT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36997-72M00-000	COVER,TERMINAL	1	Rp71.500
2	01550M0612A-000	BOLT (6X12)	1	Rp5.000
3	01550-0616A-000	BOLT (6X16)	1	Rp3.500
4	36651-77M10-000 SUB: 36651B77M10N000	BRACKET, ENGINE HARNESS AT	1	Rp26.500
5	01550-0812A-000	BOLT (8X12)	1	Rp3.500
6	36652M68P00-000	BRACKET,ENG HARN BODY	1	Rp9.500
7	02162-0612A-000	SCREW (6X12)	1	Rp11.000
8	36653M62R00-000	BRACKET,ENG HARN PROTECTOR	1	Rp40.000
9	01550M0612A-000	BOLT (6X12)	1	Rp5.000
10	36653M68P80-000	BRACKET,ENG HARN	1	Rp8.500
11	01550M0612A-000	BOLT (6X12)	1	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
