ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.260A-GEAR SHIFT CONTROL (5MT)FIG.260B-GEAR SHIFT CONTROL (4AT)FIG.264A-SELECT LEVER (4AT)FIG.226A-INTERMEDIATE SHAFT (5MT)FIG.226B-INTERMEDIATE SHAFT (4AT)FIG.272A-FRONT DIFFERENTIAL GEAR (5MT)FIG.272B-FRONT DIFFERENTIAL GEAR (4AT)FIG.300A-ENGINE ELECTRICALFIG.302A-STARTING MOTORFIG.304A-STARTING MOTORFIG.320A-BATTERY (5MT)FIG.320B-BATTERY (4AT)FIG324A-SPEEDOMETER ((GA,GL):5MT)FIG.324B-SPEEDOMETER (GX:5MT)FIG.324C-SPEEDOMETER (GL:4AT)FIG.324D-SPEEDOMETER (GL:4AT)FID.330A-HEADLAMPFIG.332A-FRONT FOG LAMP (W_FR_FOG)FIG.336A-REAR LAMPFIG.338A-ROOM LAMP (GA)FIG.344A-ENGINE ROOM HARNESS (5MT)FIG.348A-ENGINE ROOM HARNESS (4AT)FIG.348B-ENGINE HARNESS BRACKET (5MT)FIG.350A-ENGINE HARNESS BRACKET (4AT)FIG.351A-ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.360B-LOCK SET (N_PU_STA:4AT)FIG.360C-LOCK SET (W_PU_STA)FIG.370A-FRONT WINDOW WIPERFIG.376A-WINDOW WASHERFIG.374A-REAR WINDOW WIPERFIG.392A-WINDOW WASHERFIG.392B-AUDIO (N_TUNER)FIG.400A-AUDIO (W_TUNER)FIG.408A-FRONT SUSPENSIONFIG.410A-FRONT DRIVE SHAFT (5MT)FIG.418A-FRONT SUSPENSION FRAMEFIG.430A-REAR SUSPENSIONFIG.449A-ROAD WHEEL/TIRE (GA)FIG.449B-ROAD WHEEL/TIRE (GL)FIG.449C-ROAD WHEEL/TIRE (GX)FIG.451A-STEERING WHEEL (GA)FIG.451B-STEERING WHEEL (GL)FIG.451C-STEERING WHEEL (GX)FIG.453A-STEERING COLUMN (N_PU_STA)FIG.453B-STEERING COLUMN (W_PU_STA)FIG.480A-STEERING UNITFIG.338B-ROOM LAMP (GL,GX) FIG.344B-ENGINE ROOM HARNESS (4AT)FIG.360A-LOCK SET (N_PU_STA:5MT)FIG.410B-FRONT DRIVE SHAFT (4AT)

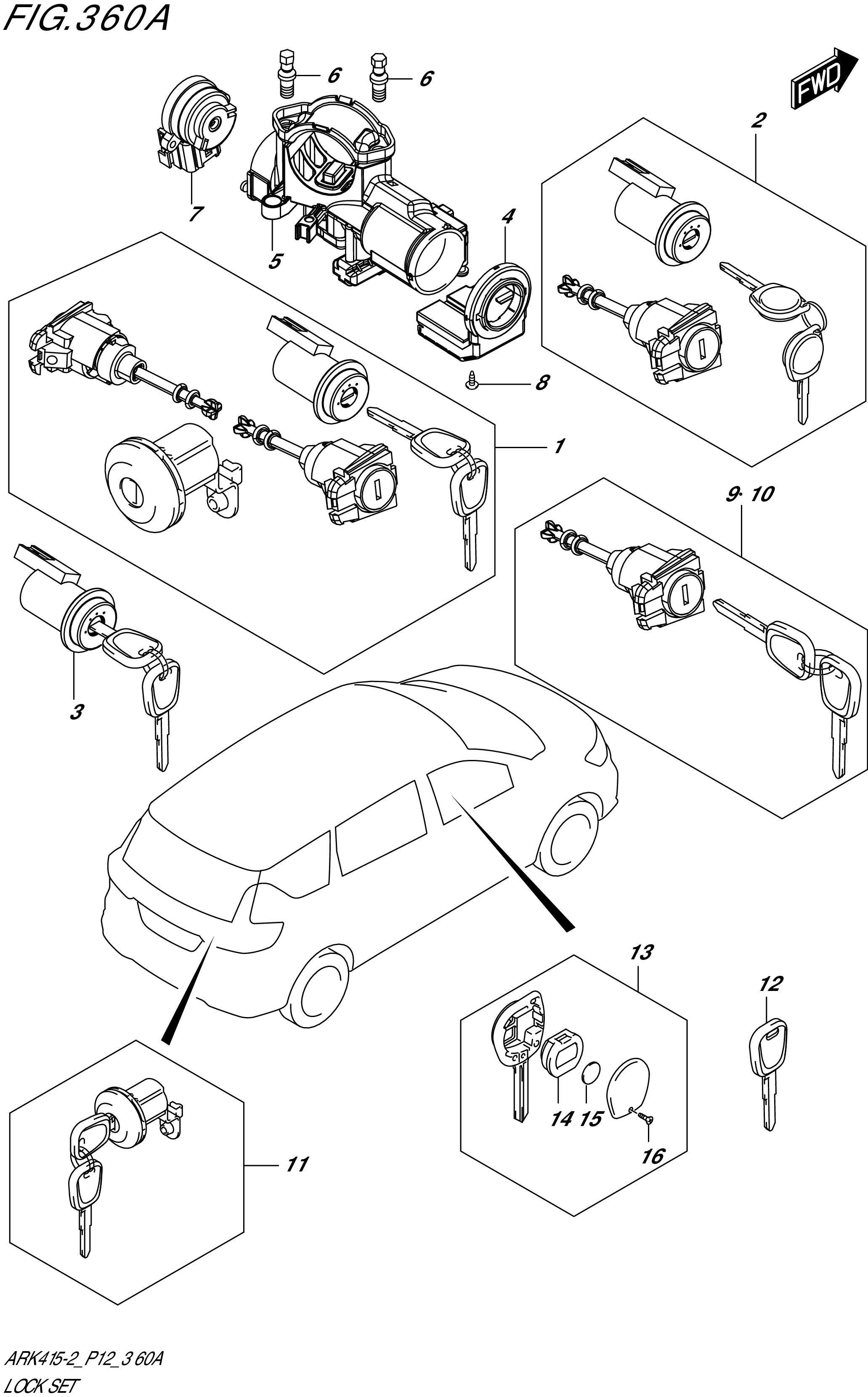

FIG.360A-LOCK SET (N_PU_STA:5MT)

FIG.360A-LOCK SET (N_PU_STA:5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 37104-73810-000 LOCK SET 1 Rp636.000
1 37104-73810-000 LOCK SET 1 Rp636.000
2 37104-73830-000 LOCK SET 1 Rp375.000
2 37104-73830-000 LOCK SET 1 Rp375.000
3-2 37104-73840-000 LOCK ASSY,STEERING 1 Rp295.500
3-1 37104-73820-000 LOCK ASSY,STEERING 1 Rp378.500
3-1 37104-73820-000 LOCK ASSY,STEERING 1 Rp378.500
3-2 37104-73840-000 LOCK ASSY,STEERING 1 Rp295.500
4 33970-73R00-000 CONTROLLER ASSY,IMM 1 Rp169.500
4 33970-73R00-000 CONTROLLER ASSY,IMM 1 Rp169.500
5 37101-73R00-000 BODY,STEERING LOCK 1 Rp450.500
5 37101-73R00-000 BODY,STEERING LOCK 1 Rp450.500
6 37152-59R00-000 .BOLT, STEERING LOCK 2 Rp6.000
6 37152-59R00-000 .BOLT, STEERING LOCK 2 Rp6.000
7 37111-59R01-000 SWITCH 1 Rp118.500
7 37111-59R01-000 SWITCH 1 Rp118.500
8 37152-59R10-000 SCREW, IMM CONT 1 Rp4.500
8 37152-59R10-000 SCREW, IMM CONT 1 Rp4.500
9 82280-73860-000 CYLINDER SET,FR DR LATCH,L 1 Rp336.000
9 82280-73860-000 CYLINDER SET,FR DR LATCH,L 1 Rp336.000
10 82270-73860-000 CYLINDER SET,FR DR LATCH,R 1 Rp337.500
10 82270-73860-000 CYLINDER SET,FR DR LATCH,R 1 Rp337.500
11 82500-73810-000 CYLINDER SET,BACK DR LOCK 1 Rp336.000
11 82500-73810-000 CYLINDER SET,BACK DR LOCK 1 Rp336.000
12 37145-73R00-000 KEY,BLANK 1 Rp228.500
12 37145-73R00-000 KEY,BLANK 1 Rp228.500
13 37145-73R10-000 KEY,BLANK 1 Rp124.000
13 37145-73R10-000 KEY,BLANK 1 Rp124.000
14 37182-73R00-000 .SWITCH ASSY,TRANSMITTER 1 Rp158.500
14 37182-73R00-000 .SWITCH ASSY,TRANSMITTER 1 Rp158.500
15 37185-54G10-000 ..BATTERY (CR1616) 1 Rp32.000
15 37185-54G10-000 ..BATTERY (CR1616) 1 Rp32.000
16 37186-59R00-000 .SCREW 1 Rp4.500
16 37186-59R00-000 .SCREW 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
