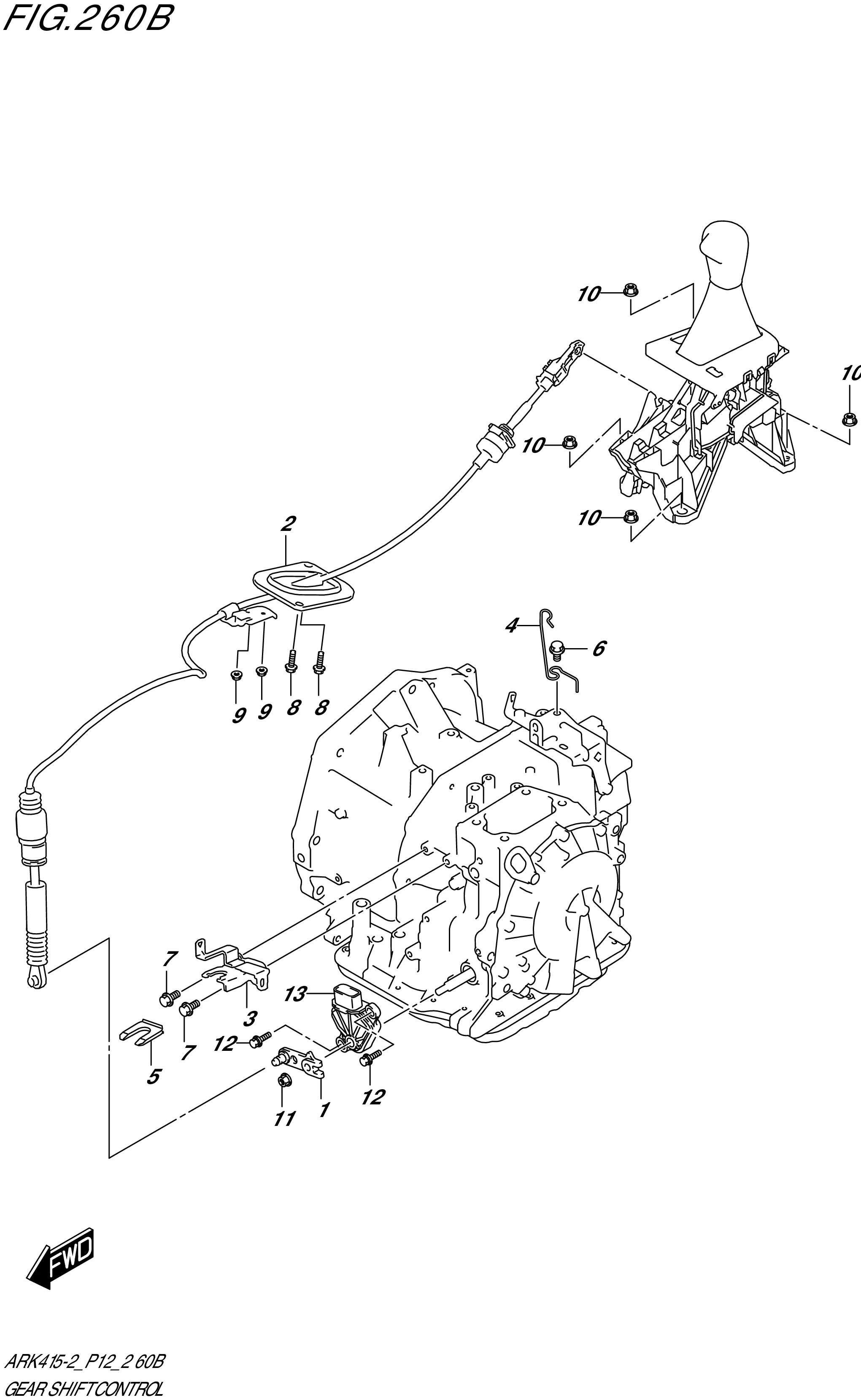

FIG.260B-GEAR SHIFT CONTROL (4AT)

FIG.260B-GEAR SHIFT CONTROL (4AT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	25970-77M10-000 SUB: 25970B77M10N000	LEVER,MANUAL SELECT	1	Rp24.000
2	28210-73R10-000	CABLE ASSY,SELECT	1	Rp450.000
3	28221-73R10-000	BRACKET,SELECT CABLE	1	Rp47.500
4	28225-77M10-000 SUB: 28225B77M10N000	CLAMP,SELECT CABLE	1	Rp9.000
5	29365-73J00-000	CLIP,GEAR CONT CABLE NO.2	1	Rp32.500
6	01550-0812C-000	BOLT (8X12)	1	Rp21.000
7	01550-0816A-000 SUB: 01550B0816AN000	BOLT (8X16)	2	Rp6.000
8	02162-0620A-000 SUB: 02162-0620C-000	SCREW	2	Rp5.500
9	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	2	Rp2.000
10	08316-1008A-000 SUB: 08316B1008AN000	NUT	4	Rp3.500
11	08361-3508A-000	NUT	1	Rp14.000
12	24896-79C10-000	BOLT,SHIFT SWITCH	2	Rp21.000
13	37720-77M10-000	SWITCH,SHIFT	1	Rp2.436.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
