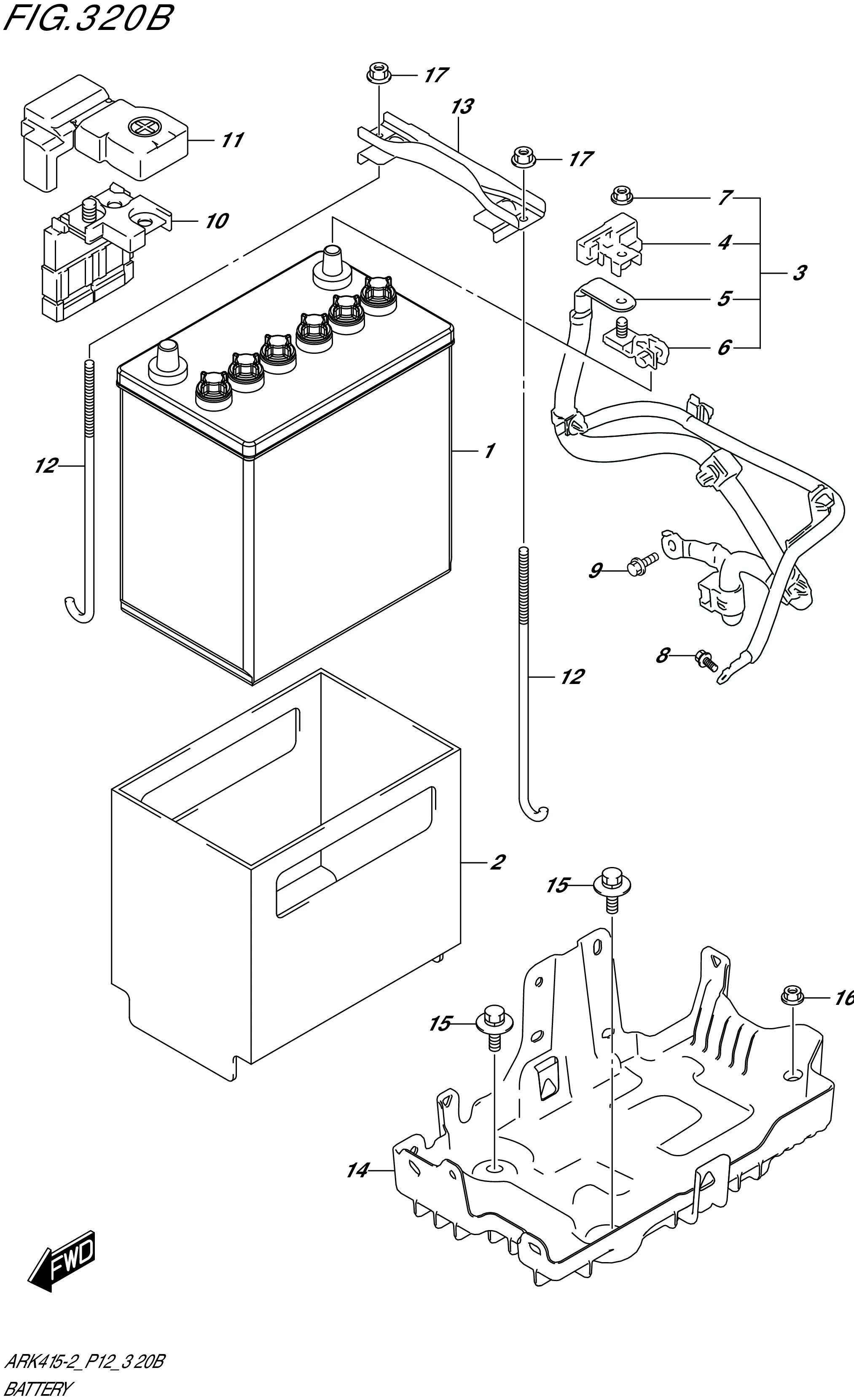

FIG.320B-BATTERY (4AT)

No	No. Part	Description	Qty	Price Per Pcs
1	33610-73R00-000	BATTERY (34B19L FB)	1	Rp1.061.500
1	33610-73R00-000	BATTERY (34B19L FB)	1	Rp1.061.500
2	33690-77M10-000 SUB: 33690B77M10N000	COVER,BATTERY	1	Rp23.000
2	33690-77M10-000 SUB: 33690B77M10N000	COVER,BATTERY	1	Rp23.000
3	33880-73R10-000	CABLE,BTRY GND	1	Rp512.500
3	33880-73R10-000	CABLE,BTRY GND	1	Rp512.500
4	32810-74P00-000	.SENSOR ASSY,CURRENT	1	Rp1.190.500
4	32810-74P00-000	.SENSOR ASSY,CURRENT	1	Rp1.190.500
5	DISCONTINUE SUB: 33850-73R10-000	.CABLE,BTRY GND	1	-
5	DISCONTINUE SUB: 33850-73R10-000	.CABLE,BTRY GND	1	-
6	33886-71L00-000	.TERMINAL	1	Rp97.000
6	33886-71L00-000	.TERMINAL	1	Rp97.000
7	33887-71L00-000	.NUT	1	Rp23.500
7	33887-71L00-000	.NUT	1	Rp23.500
8	09115-06005-000	BOLT (6X16)	1	Rp14.000
8	09115-06005-000	BOLT (6X16)	1	Rp14.000
9	01550-0812A-000 SUB: 01550B0812AN000	BOLT (8X12)	1	Rp3.500
9	01550-0812A-000 SUB: 01550B0812AN000	BOLT (8X12)	1	Rp3.500
10	36739M68P00-000	FUSE,BATTERY	1	Rp543.500
10	36739M68P00-000	FUSE,BATTERY	1	Rp543.500
11	36694-68K10-000 SUB: 36694B68K00N000	COVER,BATTERY TERMINAL	1	Rp98.000
11	36694-68K10-000 SUB: 36694B68K00N000	COVER,BATTERY TERMINAL	1	Rp98.000
12	63461M75J00-000	BOLT,BATTERY	2	Rp7.000
12	63461M75J00-000	BOLT,BATTERY	2	Rp7.000
13	72510-52R00-000	BAND,BATTERY	1	Rp14.000
13	72510-52R00-000	BAND,BATTERY	1	Rp14.000
14	72520-73R10-000	TRAY,BATTERY	1	Rp97.000
14	72520-73R10-000	TRAY,BATTERY	1	Rp97.000
15	09118-08166-000	BOLT (8X25)	2	Rp30.500
15	09118-08166-000	BOLT (8X25)	2	Rp30.500
16	09159-08140-000	NUT	1	Rp20.000
16	09159-08140-000	NUT	1	Rp20.000
17	08316-1005A-000 SUB: 08316B1005AN000	NUT	2	Rp2.500
17	08316-1005A-000 SUB: 08316B1005AN000	NUT	2	Rp2.500
