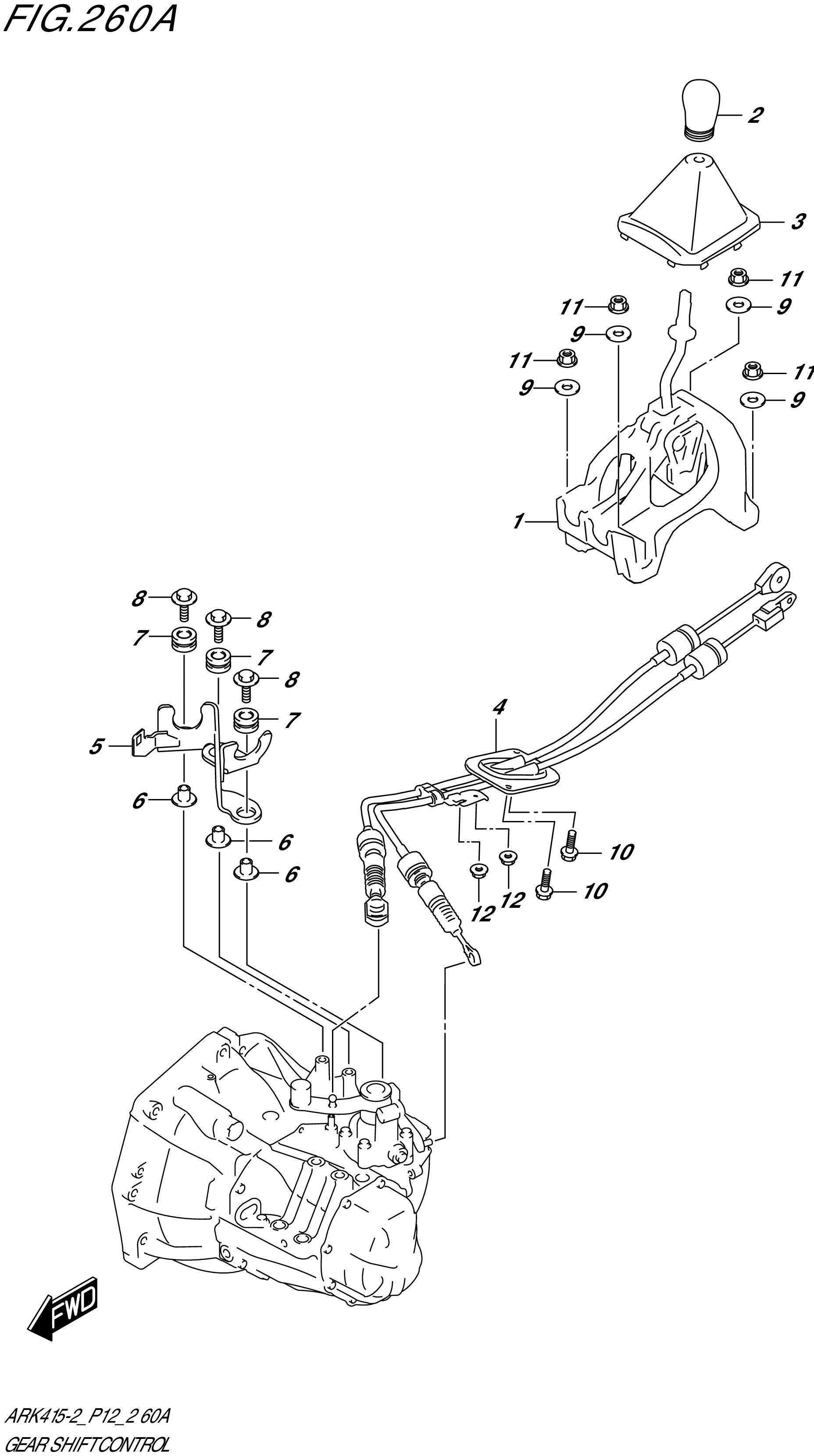

FIG.260A-GEAR SHIFT CONTROL (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	28100M73R40-000	LEVER ASSY,GEAR SHF CONT	1	Rp599.500
1	28100M73R40-000	LEVER ASSY,GEAR SHF CONT	1	Rp599.500
2-1	28113M79M21-R8R	KNOB,GEAR SHIFT CONT LEVER (BR	1	Rp98.500
2-3	DISCONTINUE SUB: 28113M79M02-KL9	KNOB,GEAR SHIFT CONT LEVER (CH	1	-
2-2	28113M79M41-C48 SUB: 28113M79M02-C48	KNOB,GEAR SHIFT CONT LEVER (CH	1	Rp155.000
2-1	28113M79M21-R8R	KNOB,GEAR SHIFT CONT LEVER (BR	1	Rp98.500
2-2	28113M79M41-C48 SUB: 28113M79M02-C48	KNOB,GEAR SHIFT CONT LEVER (CH	1	Rp155.000
2-3	DISCONTINUE SUB: 28113M79M02-KL9	KNOB,GEAR SHIFT CONT LEVER (CH	1	-
3-2	28130M72R40-5PK	BOOT,SHIFT LEVER (BLACK)	1	Rp93.000
3-1	28130M72R40-R8R SUB: 28130-72R40-R8R	BOOT,SHIFT LEVER (BROWN)	1	Rp164.000
3-1	28130M72R40-R8R SUB: 28130-72R40-R8R	BOOT,SHIFT LEVER (BROWN)	1	Rp164.000
3-2	28130M72R40-5PK	BOOT,SHIFT LEVER (BLACK)	1	Rp93.000
4	28300-73R00-000	CABLE ASSY,SHIFT & SELECT CONT	1	Rp494.500
4	28300-73R00-000	CABLE ASSY,SHIFT & SELECT CONT	1	Rp494.500
5	28391-73R00-000	BRACKET,T/M CONT CABLE	1	Rp102.000
5	28391-73R00-000	BRACKET,T/M CONT CABLE	1	Rp102.000
6	28392-77M00-000 SUB: 28392B77M00N000	SPACER,T/M CONT CABLE BRACKET	3	Rp14.500
6	28392-77M00-000 SUB: 28392B77M00N000	SPACER,T/M CONT CABLE BRACKET	3	Rp14.500
7	28393-68L21-000	CUSHION,CONT CABLE BRKT	3	Rp67.500
7	28393-68L21-000	CUSHION,CONT CABLE BRKT	3	Rp67.500
8	09118-08176-000	BOLT (8X30)	3	Rp8.000
8	09118-08176-000	BOLT (8X30)	3	Rp8.000
9	09160-08151-000	WASHER (8.5X26X1.6)	4	Rp16.500
9	09160-08151-000	WASHER (8.5X26X1.6)	4	Rp16.500
10	02162-0620A-000 SUB: 02162-0620C-000	SCREW	2	Rp5.500
10	02162-0620A-000 SUB: 02162-0620C-000	SCREW	2	Rp5.500
11	08316-1008A-000 SUB: 08316B1008AN000	NUT	4	Rp3.500
11	08316-1008A-000 SUB: 08316B1008AN000	NUT	4	Rp3.500
12	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	2	Rp2.000
12	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	2	Rp2.000
