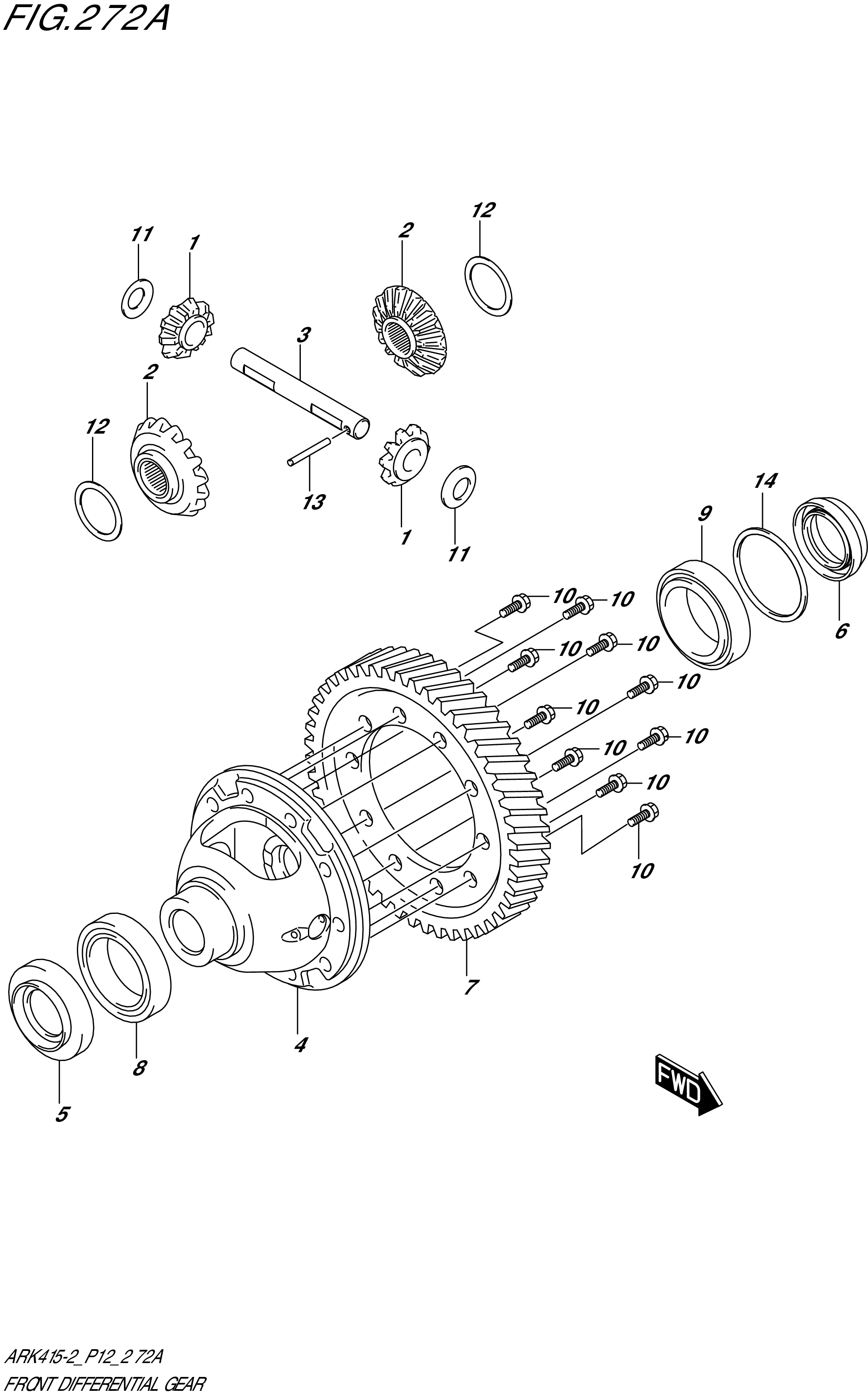

FIG.272A-FRONT DIFFERENTIAL GEAR (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	27331-73RA0-000	PINION,DIFFERENTIAL	2	Rp387.500
2	27341-73RA0-000	GEAR,DIFFERENTIAL SIDE	2	Rp537.500
3	27351M60MA0-000 SUB: 27351B77M00N000	SHAFT,DIFF SIDE PINION	1	Rp104.500
4	27411M60MA0-000 SUB: 27411-77MA0-000	CASE, FRONT DIFF	1	Rp1.447.000
5	27431-77M00-000 SUB: 27431B77M00N000	SEAL,DIFF SIDE OIL,R	1	Rp51.000
6	27432-77M00-000 SUB: 27432B77M00N000	SEAL,DIFF SIDE OIL	1	Rp30.000
7	27511-73RA0-000	GEAR,FINAL	1	Rp682.000
8	27521-73RA0-000	BEARING ASSY,DIFF SIDE,R	1	Rp182.500
9	27524-73RA0-000	BEARING ASSY,DIFF SIDE,L	1	Rp182.500
10	09103-10189-000 SUB: 09103-10722-000	BOLT (10X23)	10	Rp29.000
11	09164-17011-000	WASHER (17.3X34X1)	2	Rp29.000
12-1	09160-38003-000	WASHER (38X52X0.85)	2	Rp42.500
12-8	09160-38010-000	WASHER (38X52X1.2)	2	Rp42.500
12-7	09160-38009-000	WASHER (38X52X1.15)	2	Rp42.500
12-6	09160-38008-000	WASHER (38X52X1.1)	2	Rp42.500
12-5	09160-38007-000	WASHER (38X52X1.05)	2	Rp42.500
12-4	09160-38006-000	WASHER (38X52X1)	2	Rp42.500
12-3	09160-38005-000	WASHER (38X52X0.95)	2	Rp42.500
12-2	09160-38004-000	WASHER (38X52X0.9)	2	Rp42.500
13	09205M05007-000 SUB: 09205-05007-000	PIN,SPRING (5X36)	1	Rp5.000
14-10	29541-79JA0-136	SHIM,DIFF SIDE BRG (T:1.36)	1	Rp64.000
14-18	29541-79JA0-168	SHIM,DIFF SIDE BRG (T:1.68)	1	Rp64.000
14-17	DISCONTINUE SUB: 29541-79JA0-164	SHIM,DIFF SIDE BRG (T:1.64)	1	-
14-16	29541-79JA0-160	SHIM,DIFF SIDE BRG (T:1.60)	1	Rp64.000
14-15	DISCONTINUE SUB: 29541-79JA0-156	SHIM,DIFF SIDE BRG (T:1.56)	1	-
14-14	DISCONTINUE SUB: 29541-79JA0-152	SHIM,DIFF SIDE BRG (T:1.52)	1	-
14-13	DISCONTINUE SUB: 29541-79JA0-148	SHIM,DIFF SIDE BRG (T:1.48)	1	-
14-12	DISCONTINUE SUB: 29541-79JA0-144	SHIM,DIFF SIDE BRG (T:1.44)	1	-
14-11	29541-79JA0-140	SHIM,DIFF SIDE BRG (T:1.40)	1	Rp64.000
14-1	29541-79JA0-100	SHIM,DIFF SIDE BRG (T:1.00)	1	Rp60.000
14-9	29541-79JA0-132	SHIM,DIFF SIDE BRG (T:1.32)	1	Rp64.000
14-8	DISCONTINUE SUB: 29541-79JA0-128	SHIM,DIFF SIDE BRG (T:1.28)	1	-
14-7	DISCONTINUE SUB: 29541-79JA0-124	SHIM,DIFF SIDE BRG (T:1.24)	1	-
14-6	DISCONTINUE SUB: 29541-79JA0-120	SHIM,DIFF SIDE BRG (T:1.20)	1	-
14-5	29541-79JA0-116	SHIM,DIFF SIDE BRG (T:1.16)	1	Rp64.000
14-4	29541-79JA0-112	SHIM,DIFF SIDE BRG (T:1.12)	1	Rp62.000
14-3	29541-79JA0-108	SHIM,DIFF SIDE BRG (T:1.08)	1	Rp64.000
14-2	DISCONTINUE SUB: 29541-79JA0-104	SHIM,DIFF SIDE BRG (T:1.04)	1	-
