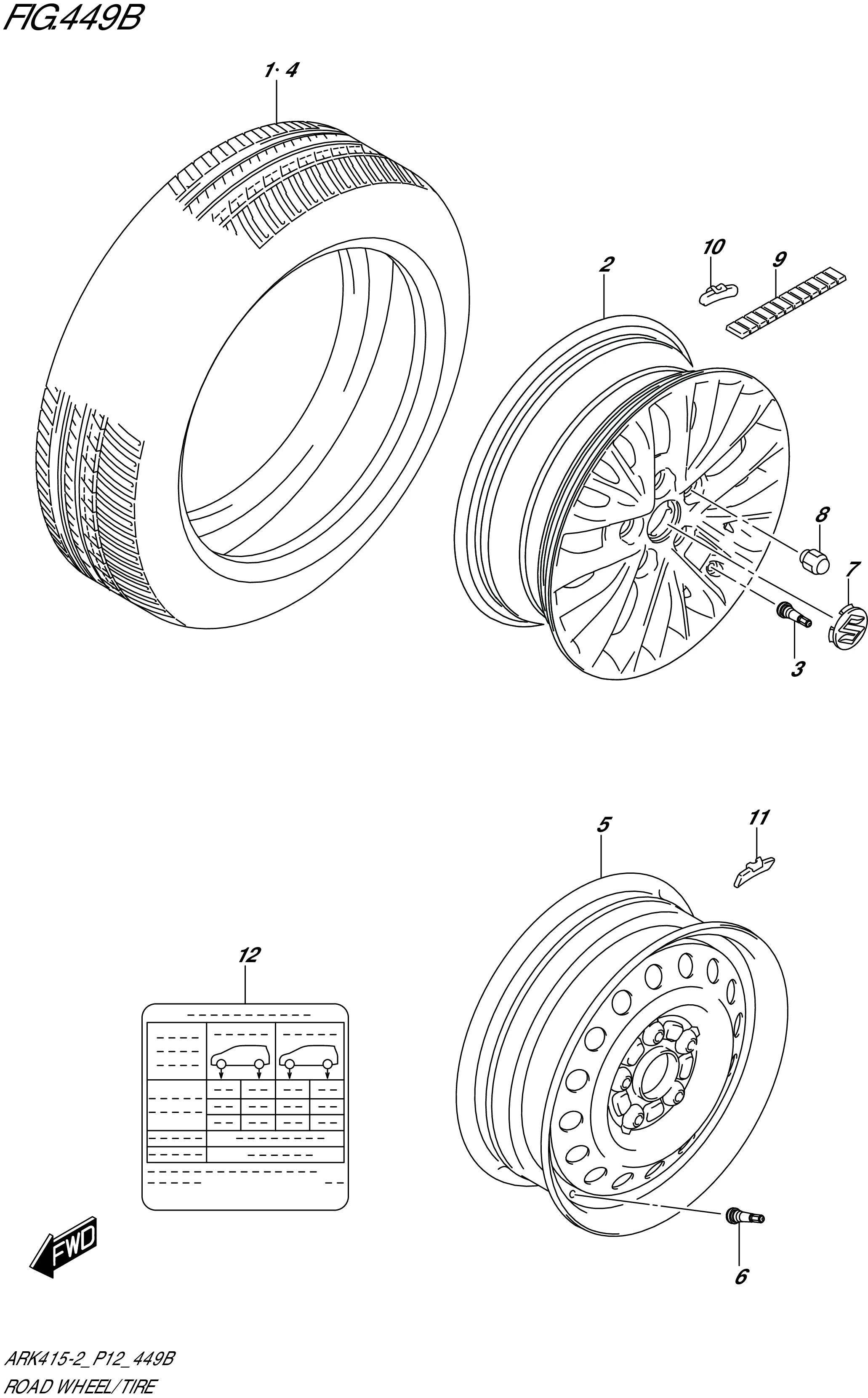

FIG.449B-ROAD WHEEL/TIRE (GL)

No	No. Part	Description	Qty	Price Per Pcs
	79161-73R00-000	PLACARD,TIRE INFORMATION	1	Rp5.000
1	43110-73R00-000	TIRE (185/65R15 88H)	4	Rp1.629.000
2	43210-73R50-27N	WHEEL,AL (15X5 1/2J,SILVER)	4	Rp1.551.500
3	DISCONTINUE SUB: 43130-67L80-000	VALVE (TR413)	4	-
4	43110-73R00-000	TIRE (185/65R15 88H)	1	Rp1.629.000
5	43210-73R00-09L	WHEEL (15X5 1/2J,BLACK)	1	Rp783.500
6	DISCONTINUE SUB: 43130-67L80-000	VALVE (TR413)	1	-
7	43252-84M00-0PG	CAP,WHEEL CTR (CHROME)	4	Rp175.500
8	09159-12073-000	NUT (M12)	20	Rp50.500
9-3	43221-59J20-000	WEIGHT,WHEEL BALANCE (15GRAM)	0	Rp42.000
9-1	43221-59J00-000	WEIGHT,WHEEL BALANCE (5GRAM)	0	Rp32.000
9-10	43221-59J90-000	WEIGHT,WHEEL BALANCE (50GRAM)	0	Rp60.000
9-9	43221-59J80-000	WEIGHT,WHEEL BALANCE (45GRAM)	0	Rp57.000
9-8	43221-59J70-000	WEIGHT,WHEEL BALANCE (40GRAM)	0	Rp54.500
9-6	43221-59J50-000	WEIGHT,WHEEL BALANCE (30GRAM)	0	Rp49.500
9-2	43221-59J10-000	WEIGHT,WHEEL BALANCE (10GRAM)	0	Rp40.000
9-4	43221-59J30-000	WEIGHT,WHEEL BALANCE (20GRAM)	0	Rp44.000
9-5	43221-59J40-000	WEIGHT,WHEEL BALANCE (25GRAM)	0	Rp47.000
9-7	43221-59J60-000	WEIGHT,WHEEL BALANCE (35GRAM)	0	Rp52.500
10-1	43221-73H10-000	WEIGHT,WHEEL BALANCE (5G)	0	Rp33.000
10-9	DISCONTINUE SUB: 43231-54G10-000	WEIGHT,WHEEL BALANCE (45G)	0	-
10-8	DISCONTINUE SUB: 43228-73H10-000	WEIGHT,WHEEL BALANCE (40G)	0	-
10-7	DISCONTINUE SUB: 43227-73H10-000	WEIGHT,WHEEL BALANCE (35G)	0	-
10-6	DISCONTINUE SUB: 43226-73H10-000	WEIGHT,WHEEL BALANCE (30G)	0	-
10-5	DISCONTINUE SUB: 43225-73H10-000	WEIGHT,WHEEL BALANCE (25G)	0	-
10-4	DISCONTINUE SUB: 43224-73H10-000	WEIGHT,WHEEL BALANCE (20G)	0	-
10-3	DISCONTINUE SUB: 43223-73H10-000	WEIGHT,WHEEL BALANCE (15G)	0	-
10-2	DISCONTINUE SUB: 43222-73H10-000	WEIGHT,WHEEL BALANCE (10G)	0	-
11-1	43221-60K00-000	WEIGHT,WHEEL BALANCE (5G)	0	Rp14.500
11-2	43222-60K00-000	WEIGHT,WHEEL BALANCE (10G)	0	Rp16.500
11-3	43223-60K00-000	WEIGHT,WHEEL BALANCE (15G)	0	Rp16.500
11-4	43224-60K00-000	WEIGHT,WHEEL BALANCE (20G)	0	Rp16.500
11-5	43225-60K00-000	WEIGHT,WHEEL BALANCE (25G)	0	Rp18.000
11-6	43226-60K00-000	WEIGHT,WHEEL BALANCE (30G)	0	Rp21.000
11-7	43227-60K00-000	WEIGHT,WHEEL BALANCE (35G)	0	Rp20.000
11-8	43228-60K00-000	WEIGHT,WHEEL BALANCE (40G)	0	Rp21.000
11-9	43231-60K00-000	WEIGHT,WHEEL BALANCE (45G)	0	Rp21.000
