ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 800A - Front Door Panel FIG. 800B - REAR DOOR FIG. 801A - REAR DOOR PANEL (GA)FIG. 805A - BACK DOOR PANEL (GA)FIG. 805B - BACK DOOR PANEL (GL, GX)FIG. 810A - FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK (GA)FIG. 820B - FRONT DOOR LOCK (GL)FIG. 820C - FRONT DOOR LOCK (GX)FIG. 821A - REAR DOOR LOCK (GA,GL)FIG. 821B - REAR DOOR LOCK (GX)FIG. 824A - BACK DOOR LOCK (GA)FIG. 824B - BACK DOOR LOCK (GL,GX)FIG. 835A - MIRROR/SUNVISOR (GA)FIG. 835B - MIRROR/SUNVIVOR (GL)FIG. 835C - MIRROR/SUNVIVOR (GX)FIG. 841A - FRONT SEAT BELT FIG. 843A - 2ND SEAT BELT FIG. 844A - 3RD SEAT BELT FIG. 848A - FRONT LH SEAT (GA)FIG. 848B - FRONT LH SEAT (GL,GX)FIG. 849A - FRONT RH SEAT (GA,GL)FIG. 849B - FRONT RH SEAT (GX)FIG. 854A - 2ND RH SEAT FIG. 855A - 2ND LH SEAT FIG. 857A - 3RD RH SEAT FIG. 858A - 3RD LH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER FIG. 968A - FRONT A/C PIPING (GA)FIG. 968B / FRONT A/C PIPING (GL,GX)FIG. 970A - REAR A/C PIPING (GL,GX)FIG. 972A - COOLING UNIT (GL,GX)FIG. 990A - COMPRESSOR

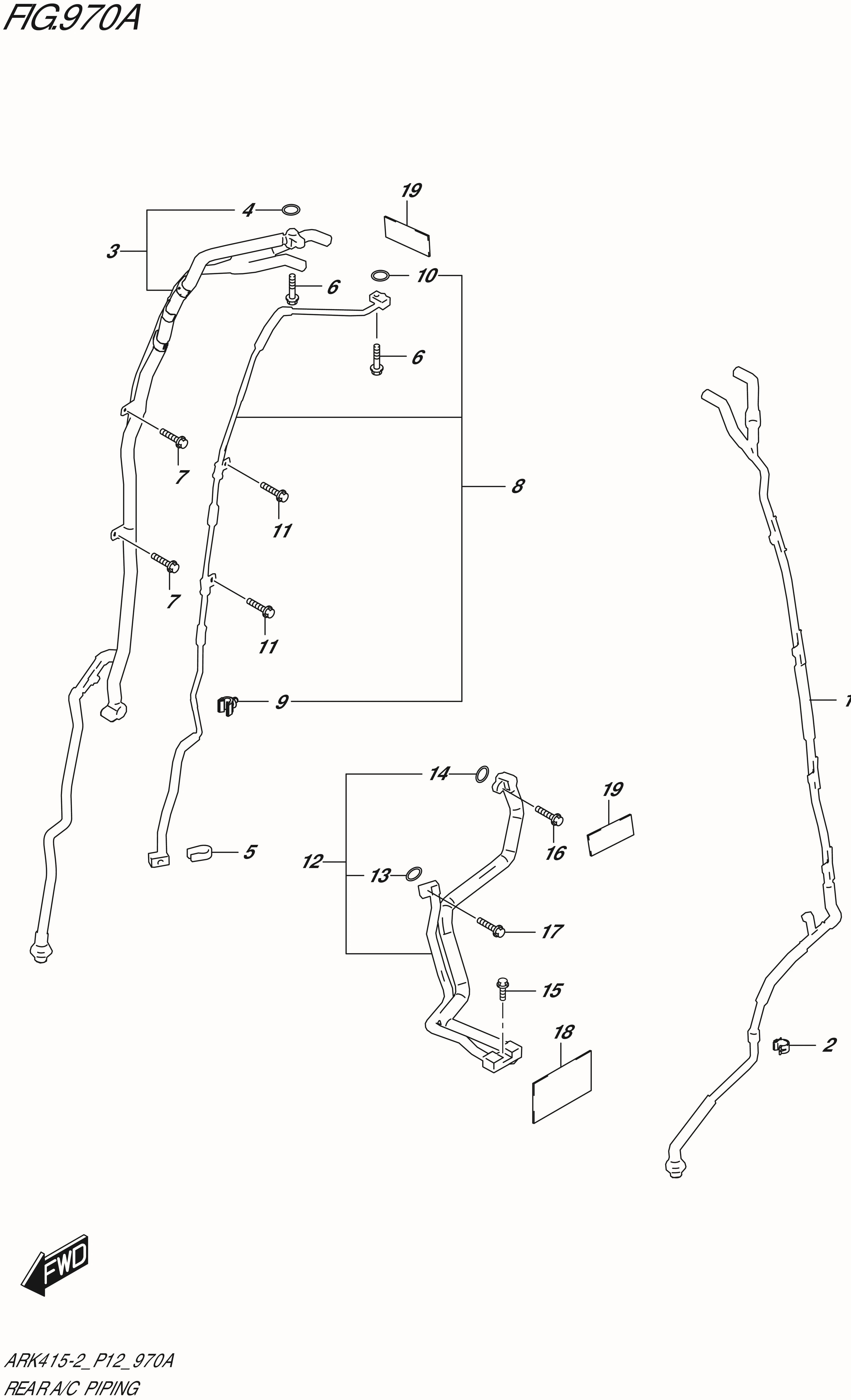

FIG. 970A - REAR A/C PIPING (GL,GX)

FIG. 970A - REAR A/C PIPING (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	95481-73R30-000	HOSE,DRAIN L	1	Rp272.500
2	09403-13309-000	CLAMP	1	Rp29.000
3	95740-73R20-000	PIPE ASSY,DRAIN & SUCT	1	Rp359.000
4	95896-50G00-000 SUB: 95896B50G00N000	.O-RING (D:2.4,ID:13.4)	1	Rp19.000
5	09403-18411-000 SUB: 09403B18411N000	CLAMP	1	Rp10.500
6	01550-0620B-000 SUB: 01550B0620AN000	BOLT (6X20)	2	Rp3.500
7	02162-0612A-000	SCREW (6X12)	2	Rp11.000
8	95732-73R30-000	PIPE,LIQUID NO.4	1	Rp218.000
9	95761-55K00-000 SUB: 95761B55K00N000	.CLAMP,LIQUID PIPE	1	Rp10.500
10	95891-50G00-000 SUB: 95891B50G00N000	.O-RING (D:1.8,ID:6.7)	1	Rp12.500
11	02162-0612A-000	SCREW (6X12)	2	Rp11.000
12	95740-73R10-000	PIPE ASSY,SUCT & LIQUID NO.3	1	Rp344.000
13	95891-50G00-000 SUB: 95891B50G00N000	.O-RING (D:1.8,ID:6.7)	1	Rp12.500
14	95896-50G00-000 SUB: 95896B50G00N000	.O-RING (D:2.4,ID:13.4)	1	Rp19.000
15	01550-0620B-000 SUB: 01550B0620AN000	BOLT (6X20)	1	Rp3.500
16	01550-0620B-000 SUB: 01550B0620AN000	BOLT (6X20)	1	Rp3.500
17	01550-0620B-000 SUB: 01550B0620AN000	BOLT (6X20)	1	Rp3.500
18	95811-73R00-000	PACKING,PIPE JOINT	1	Rp19.000
19	95811-77M00-000 SUB: 95811B77M00N000	PACKING,PIPE JOINT	2	Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
