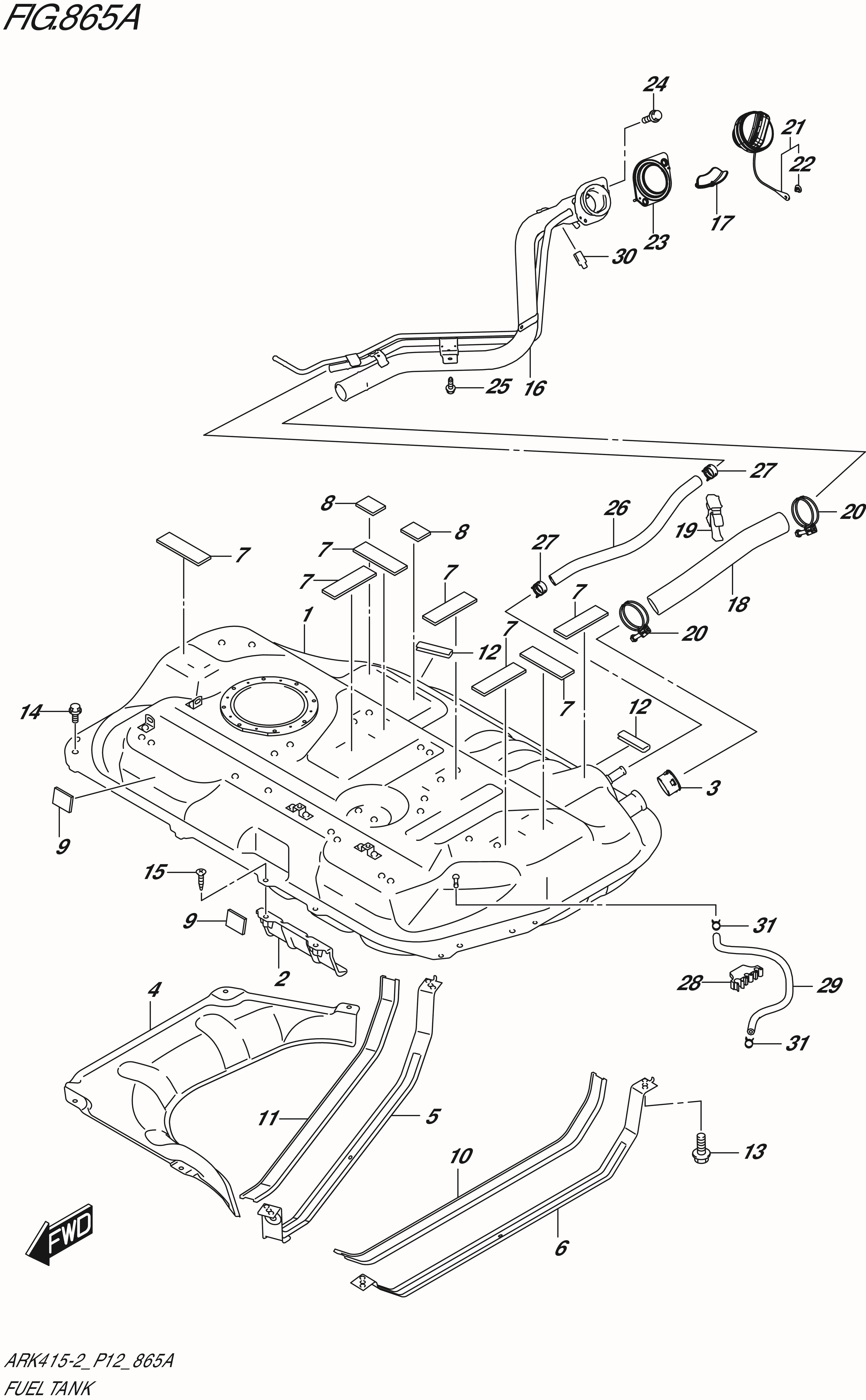

FIG. 865A - FUEL TANK

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 89101-73R01-000	TANK ASSY,FUEL	1	-
2	89191-60M00-000 SUB: 89191B60M00N000	COVER,FUEL TANK	1	Rp15.500
3	89280-77A00-000	VALVE,FUEL TANK INLET	1	Rp107.000
4	89311-60M00-000 SUB: 89311B60M00N000	PROTECTOR,FUEL TANK	1	Rp94.000
5	89360-73R00-000	BELT,TANK FIXER,R	1	Rp24.500
6	89370-73R00-000	BELT,TANK FIXER,L	1	Rp22.500
7	89381-60M00-000 SUB: 89381B60M00N000	PAD,FUEL TANK	7	Rp15.000
8	89382-60M00-000 SUB: 89382B60M00N000	PAD,FUEL TANK	2	Rp9.000
9	89383-60M00-000 SUB: 89383B60M00N000	PAD,FUEL TANK	2	Rp9.000
10	89385M57L00-000	PAD,FUEL TANK BELT	1	Rp67.500
11	89385M60M00-000	PAD,FUEL TANK BELT	1	Rp67.500
12	89445-60G10-000 SUB: 89445B60G10N000	PROTECTOR,TANK FLANGE	2	Rp10.000
13	09118-10078-000	BOLT,10X30	4	Rp19.000
14	02162-0610A-000	SCREW	4	Rp5.000
15	03541-0616A-000	SCREW	2	Rp13.500
16	89210-73R00-000	NECK,FUEL FILLER	1	Rp640.500
17	89232-57L00-000	COVER,FUEL FILLER NECK	1	Rp40.500
18	89241-73R00-000	HOSE,FUEL TANK FILLER	1	Rp89.500
19	89242M68P00-000	CLAMP,FILLER & BREATHER HOSE	1	Rp12.500
20	89243-81P00-000	CLAMP,FUEL FILLER HOSE	2	Rp57.500
21	89260-77K01-000	CAP ASSY,FUEL FILLER	1	Rp379.500
22	89267-77K00-000	.CLIP,CAP TETHER	1	Rp36.500
23	89285M58J00-000	PACKING,FUEL FILLER	1	Rp13.500
24	09116-05023-000	BOLT (5X20)	2	Rp18.500
25	DISCONTINUE SUB: 09116-06205-000	BOLT (6X16)	1	-
26	09355-11188-600	HOSE (11X17.8X600)	1	Rp92.000
27	09401M16L01-000 SUB: 09401-16407-000	CLIP (ID:16.5)	2	Rp9.000
28	89433-73R00-000	CLAMP,EVAP HOSE	1	Rp10.000
29	89442-73R00-000	HOSE,UNIT TO TANK EVAP	1	Rp154.500
30	89481-52S00-000	FILTER,AIR SUCTION	1	Rp7.000
31	09401-11004-000	CLIP	2	Rp20.500
