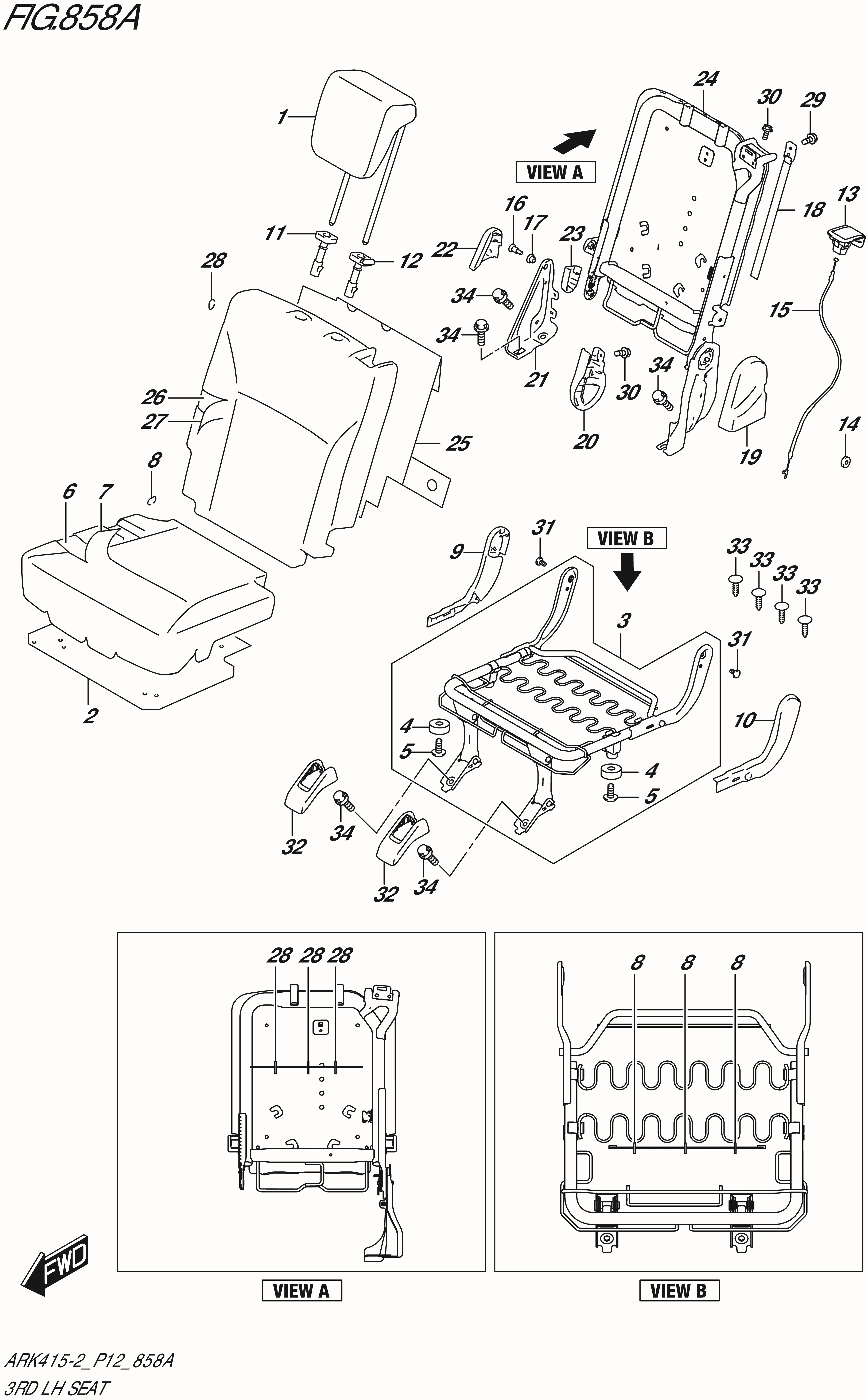

FIG. 858A - 3RD LH SEAT

No	No. Part	Description	Qty	Price Per Pcs
1-2	86401-73RA0-DJV	HEADRESTRAINT ASSY,3RD (BEIGE)	1	Rp773.500
1-1	86401-73RA0-WCV	HEADRESTRAINT ASSY,3RD (BEIGE)	1	Rp364.500
1-3	86401-73RA0-DWH	HEADRESTRAINT ASSY,3RD (BLACK)	1	Rp755.500
2	87163-78F00-000	SUPPORT,RR CUSH	1	Rp7.000
3	88104-73RA1-000	FRAME ASSY,3RD CUSH,L	1	Rp566.500
4	87193-82K00-000	.CUSHION,RR LEG STOPPER	2	Rp12.500
5	03241-0512A-000 SUB: 03241B0512AN000	.SCREW	2	Rp3.500
6	88660-73RA0-000	PAD,3RD CUSH,L	1	Rp253.500
7-1	88680-73RA0-DGQ	TRIM,3RD CUSH,L (BEIGE/BROWN)	1	Rp551.500
7-2	88680-73RA0-DJQ	TRIM,3RD CUSH,L (BEIGE/BROWN)	1	Rp452.500
7-3	88680-73RA0-DWG	TRIM,3RD CUSH,L (BLACK)	1	Rp551.500
8	09387-19001-000 SUB: 09387B19001N000	RING (OD:22.6)	3	Rp9.000
9-1	88171-73RA0-V6N	COVER,3RD STAY,R (BEIGE)	1	Rp14.500
9-2	88171-73RA0-5PK	COVER,3RD STAY,R (BLACK)	1	Rp15.000
10-1	88172-73RA0-R8R	COVER,3RD STAY,L (BROWN)	1	Rp13.000
10-2	88172-73RA0-5PK	COVER,3RD STAY,L (BLACK)	1	Rp16.000
11-1	85341-58RA1-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp10.500
11-2	85341-58RA1-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp10.000
12-1	85840-73R10-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp11.000
12-2	85840-73R10-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp11.000
13-1	87290-70K00-V6N	KNOB,RCLNG RELEASE (BEIGE)	1	Rp99.000
13-2	87290-70K00-5PK	KNOB,RCLNG RELEASE (BLACK)	1	Rp97.000
14	87371-73R00-000	WASHER,CABLE END	1	Rp5.500
15	88294-73RA1-000	CABLE,3RD RCLNG RELEASE	1	Rp46.500
16	88321-73RA0-000	BOLT,3RD BACK HINGE	1	Rp9.000
17	88322-73RA0-000	BUSH,3RD BACK HINGE	1	Rp6.500
18-1	88370-73RA0-R8R	BAND ASSY,3RD BACK (BROWN)	1	Rp8.000
18-2	88370-73RA0-5PK	BAND ASSY,3RD BACK (BLACK)	1	Rp7.500
19-1	88721-73RA0-R8R	COVER,3RD RCLNG LOWER,L (BROWN	1	Rp11.000
19-2	88721-73RA0-5PK	COVER,3RD RCLNG LOWER,L (BLACK	1	Rp12.500
20-1	88722-73RA1-R8R	COVER,3RD RCLNG UPR,L (BROWN)	1	Rp14.500
20-2	88722-73RA1-5PK	COVER,3RD RCLNG UPR,L (BLACK)	1	Rp12.500
21	88731-73RB0-000	BRACKET,3RD BACK HINGE,L	1	Rp170.500
22-1	88741-73RA0-V6N	COVER,3RD HINGE LOWER,L (BEIGE)	1	Rp10.000
22-2	88741-73RA0-5PK	COVER,3RD HINGE LOWER,L (BLACK)	1	Rp8.500
23-1	88742-73RA0-V6N	COVER,3RD HINGE UPPER,L (BEIGE)	1	Rp5.500
23-2	88742-73RA0-5PK	COVER,3RD HINGE UPPER,L (BLACK)	1	Rp5.500
24	88810-73RA1-000 SUB: 88810-73RA0-000	FRAME,3RD BACK,L	1	Rp1.145.500
25	88834-73RA0-000	SILENCER,3RD BACK,L	1	Rp37.000
26	88860-73RA0-000	PAD,3RD BACK,L	1	Rp219.500
27-1	88880-73RA0-DGQ	TRIM,3RD BACK,L (BEIGE/BROWN)	1	Rp587.500
27-2	88880-73RA0-DJQ	TRIM,3RD BACK,L (BEIGE/BROWN)	1	Rp497.000
27-3	88880-73RA0-DWG	TRIM,3RD BACK,L (BLACK)	1	Rp587.500
28	09387-19001-000 SUB: 09387B19001N000	RING (OD:22.6)	3	Rp9.000
29	02142-0510A-000 SUB: 02142B0510AN000	SCREW	1	Rp4.000
30	03241-0510A-000	SCREW	2	Rp8.000
31	88323-73RA0-000	BOLT,3RD STAY FIX	2	Rp8.500
32-1	88491-73RA0-R8R	COVER,3RD MTG (BROWN)	2	Rp8.000
32-2	88491-73RA0-5PK	COVER,3RD MTG (BLACK)	2	Rp8.500
33-1	09409-10302-R8R	CLIP (BROWN)	4	Rp19.000
33-2	09409-10302-5PK	CLIP (BLACK)	4	Rp18.500
34	01551-1020A-000	BOLT	5	Rp18.000
