ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 800A - Front Door Panel FIG. 800B - REAR DOOR FIG. 801A - REAR DOOR PANEL (GA)FIG. 805A - BACK DOOR PANEL (GA)FIG. 805B - BACK DOOR PANEL (GL, GX)FIG. 810A - FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK (GA)FIG. 820B - FRONT DOOR LOCK (GL)FIG. 820C - FRONT DOOR LOCK (GX)FIG. 821A - REAR DOOR LOCK (GA,GL)FIG. 821B - REAR DOOR LOCK (GX)FIG. 824A - BACK DOOR LOCK (GA)FIG. 824B - BACK DOOR LOCK (GL,GX)FIG. 835A - MIRROR/SUNVISOR (GA)FIG. 835B - MIRROR/SUNVIVOR (GL)FIG. 835C - MIRROR/SUNVIVOR (GX)FIG. 841A - FRONT SEAT BELT FIG. 843A - 2ND SEAT BELT FIG. 844A - 3RD SEAT BELT FIG. 848A - FRONT LH SEAT (GA)FIG. 848B - FRONT LH SEAT (GL,GX)FIG. 849A - FRONT RH SEAT (GA,GL)FIG. 849B - FRONT RH SEAT (GX)FIG. 854A - 2ND RH SEAT FIG. 855A - 2ND LH SEAT FIG. 857A - 3RD RH SEAT FIG. 858A - 3RD LH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER FIG. 968A - FRONT A/C PIPING (GA)FIG. 968B / FRONT A/C PIPING (GL,GX)FIG. 970A - REAR A/C PIPING (GL,GX)FIG. 972A - COOLING UNIT (GL,GX)FIG. 990A - COMPRESSOR

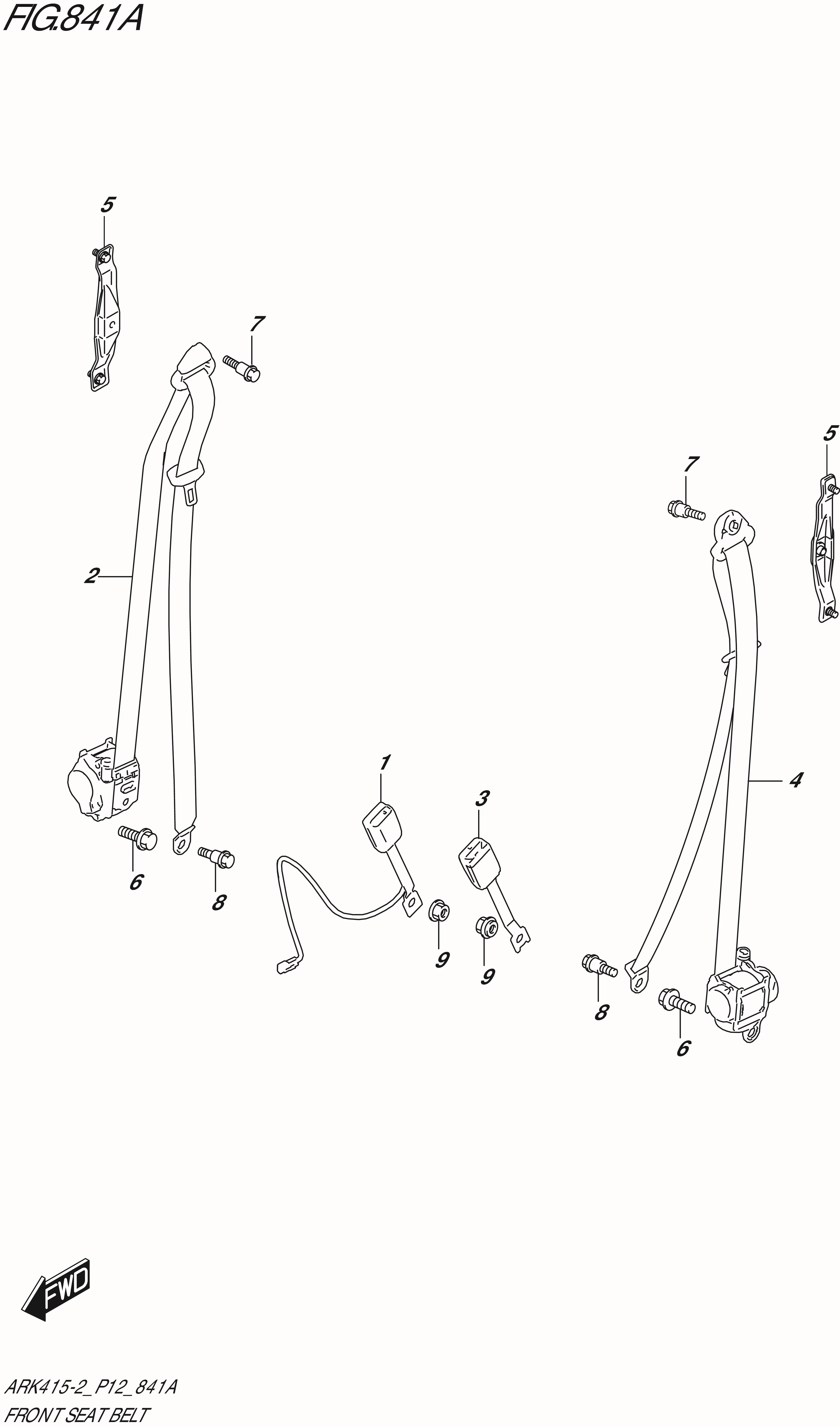

FIG. 841A - FRONT SEAT BELT

FIG. 841A - FRONT SEAT BELT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	84910-73R20-V6N	BUCKLE ASSY,FR (BEIGE)	1	Rp200.000
1-2	84910-73R20-5PK	BUCKLE ASSY,FR (BLACK)	1	Rp211.500
2-1	84920-73R22-V6N SUB: 84920-73R20-V6N	TONGUE ASSY,FR,R (BEIGE)	1	Rp991.500
2-2	84920-73R22-HLK SUB: 84920-73R20-HLK	TONGUE ASSY,FR,R (BEIGE,BLACK)	1	Rp1.095.500
3-1	84910-73R10-V6N	BUCKLE ASSY,FR (BEIGE)	1	Rp191.500
3-2	84910-73R10-5PK	BUCKLE ASSY,FR (BLACK)	1	Rp206.000
4-1	84940-73R02-V6N SUB: 84940-73R00-V6N	TONGUE ASSY,FR,L (BEIGE)	1	Rp991.500
4-2	84940-73R02-HLK SUB: 84940-73R00-HLK	TONGUE ASSY,FR,L (BEIGE,BLACK)	1	Rp1.095.500
5	84990-64L00-000 SUB: 84990B64L00N000	BRACKET ASSY,FIX ANCHOR	2	Rp45.500
6	09103M11002-000 SUB: 09103-11002-000	BOLT (10X22)	2	Rp7.500
7	09111M11005-000	BOLT (7/16X49)	2	Rp26.500
8	09111M11008-000	BOLT (7/16X38)	2	Rp27.000
9	09159-11004-000	NUT	2	Rp71.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
