ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 800A - Front Door Panel FIG. 800B - REAR DOOR FIG. 801A - REAR DOOR PANEL (GA)FIG. 805A - BACK DOOR PANEL (GA)FIG. 805B - BACK DOOR PANEL (GL, GX)FIG. 810A - FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK (GA)FIG. 820B - FRONT DOOR LOCK (GL)FIG. 820C - FRONT DOOR LOCK (GX)FIG. 821A - REAR DOOR LOCK (GA,GL)FIG. 821B - REAR DOOR LOCK (GX)FIG. 824A - BACK DOOR LOCK (GA)FIG. 824B - BACK DOOR LOCK (GL,GX)FIG. 835A - MIRROR/SUNVISOR (GA)FIG. 835B - MIRROR/SUNVIVOR (GL)FIG. 835C - MIRROR/SUNVIVOR (GX)FIG. 841A - FRONT SEAT BELT FIG. 843A - 2ND SEAT BELT FIG. 844A - 3RD SEAT BELT FIG. 848A - FRONT LH SEAT (GA)FIG. 848B - FRONT LH SEAT (GL,GX)FIG. 849A - FRONT RH SEAT (GA,GL)FIG. 849B - FRONT RH SEAT (GX)FIG. 854A - 2ND RH SEAT FIG. 855A - 2ND LH SEAT FIG. 857A - 3RD RH SEAT FIG. 858A - 3RD LH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER FIG. 968A - FRONT A/C PIPING (GA)FIG. 968B / FRONT A/C PIPING (GL,GX)FIG. 970A - REAR A/C PIPING (GL,GX)FIG. 972A - COOLING UNIT (GL,GX)FIG. 990A - COMPRESSOR

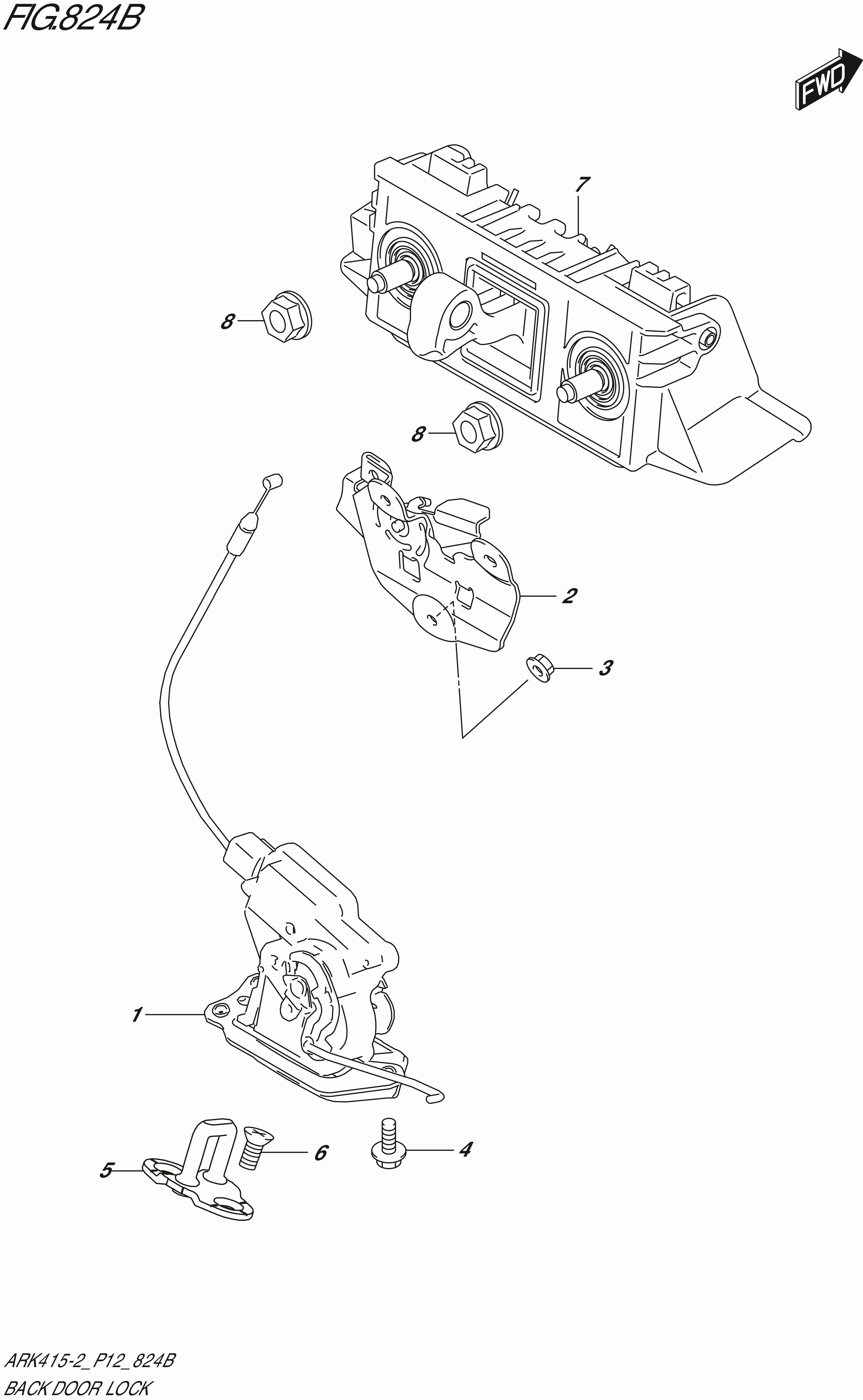

FIG. 824B - BACK DOOR LOCK (GL,GX)

FIG. 824B - BACK DOOR LOCK (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82510-73R12-000 SUB: 82510-73R11-000	LATCH,BACK DOOR	1	Rp270.000
2	82520M66R00-000	LINK,BACK DR LATCH	1	Rp74.500
3	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	1	Rp2.000
4	09122-76001-000	SCREW (6X16)	3	Rp16.500
5	82650-73R00-000	STRIKER,BACK DOOR LATCH	1	Rp30.000
6	09139-08025-000	SCREW (8X20)	2	Rp23.000
7-1	82850M72R00-000	HANDLE ASSY,BACK DOOR LOCK	1	Rp78.000
7-2	82850M72R10-000	HANDLE ASSY,BACK DOOR LOCK	1	Rp78.000
8	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
