ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 800A - Front Door Panel FIG. 800B - REAR DOOR FIG. 801A - REAR DOOR PANEL (GA)FIG. 805A - BACK DOOR PANEL (GA)FIG. 805B - BACK DOOR PANEL (GL, GX)FIG. 810A - FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK (GA)FIG. 820B - FRONT DOOR LOCK (GL)FIG. 820C - FRONT DOOR LOCK (GX)FIG. 821A - REAR DOOR LOCK (GA,GL)FIG. 821B - REAR DOOR LOCK (GX)FIG. 824A - BACK DOOR LOCK (GA)FIG. 824B - BACK DOOR LOCK (GL,GX)FIG. 835A - MIRROR/SUNVISOR (GA)FIG. 835B - MIRROR/SUNVIVOR (GL)FIG. 835C - MIRROR/SUNVIVOR (GX)FIG. 841A - FRONT SEAT BELT FIG. 843A - 2ND SEAT BELT FIG. 844A - 3RD SEAT BELT FIG. 848A - FRONT LH SEAT (GA)FIG. 848B - FRONT LH SEAT (GL,GX)FIG. 849A - FRONT RH SEAT (GA,GL)FIG. 849B - FRONT RH SEAT (GX)FIG. 854A - 2ND RH SEAT FIG. 855A - 2ND LH SEAT FIG. 857A - 3RD RH SEAT FIG. 858A - 3RD LH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER FIG. 968A - FRONT A/C PIPING (GA)FIG. 968B / FRONT A/C PIPING (GL,GX)FIG. 970A - REAR A/C PIPING (GL,GX)FIG. 972A - COOLING UNIT (GL,GX)FIG. 990A - COMPRESSOR

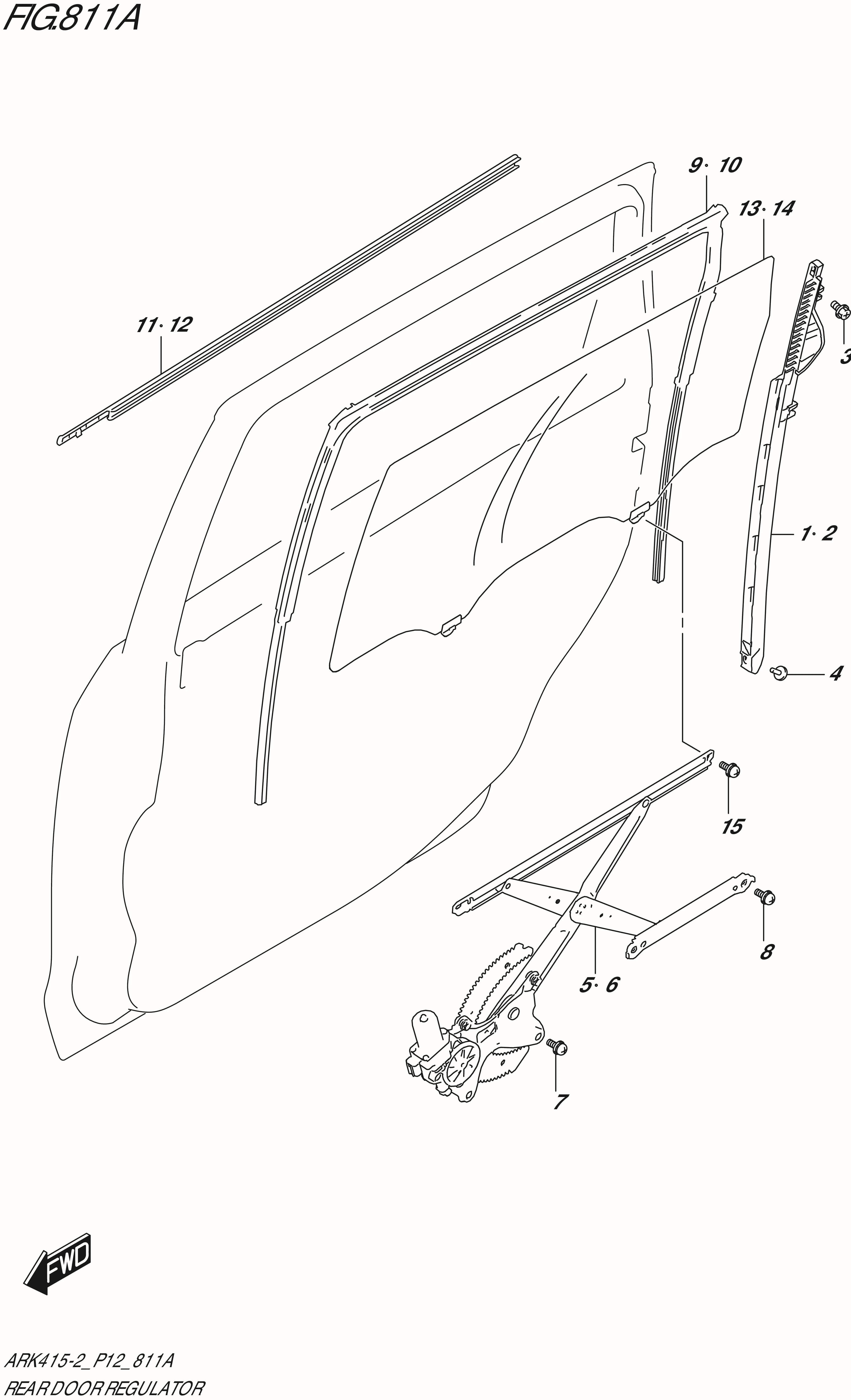

FIG. 811A REAR DOOR REGULATOR

FIG. 811A REAR DOOR REGULATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	81770-73R00-000	SASH,REAR DOOR REAR,R	1	Rp49.000
2	81780-73R00-000	SASH,REAR DOOR REAR,L	1	Rp49.000
3	02162-0612A-000	SCREW (6X12)	4	Rp11.000
4	09122-76003-000	SCREW (6X16)	2	Rp15.000
5	83501-73R10-000	REGULATOR ASSY,REAR WINDOW,R	1	Rp406.500
6	83502-73R10-000	REGULATOR ASSY,REAR WINDOW,L	1	Rp406.500
7	DISCONTINUE SUB: 01580-0612A-000	BOLT	4	-
8	DISCONTINUE SUB: 01580-0612A-000	BOLT	4	-
9	83671-73R00-000	RUN,RR DR GLASS,R	1	Rp217.000
10	83675-73R00-000	RUN,RR DR GLASS,L	1	Rp217.000
11	83831-73R00-000	WEATHERSTRIP,RR DR OUT,R	1	Rp79.000
12	83841-73R00-000	WEATHERSTRIP,RR DR OUT,L	1	Rp79.000
13	84503-73R00-000	GLASS,RR DR WINDOW,R	1	Rp232.000
14	84504-73R00-000	GLASS,RR DR WINDOW,L	1	Rp232.000
15	DISCONTINUE SUB: 01580-0612A-000	BOLT	4	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
