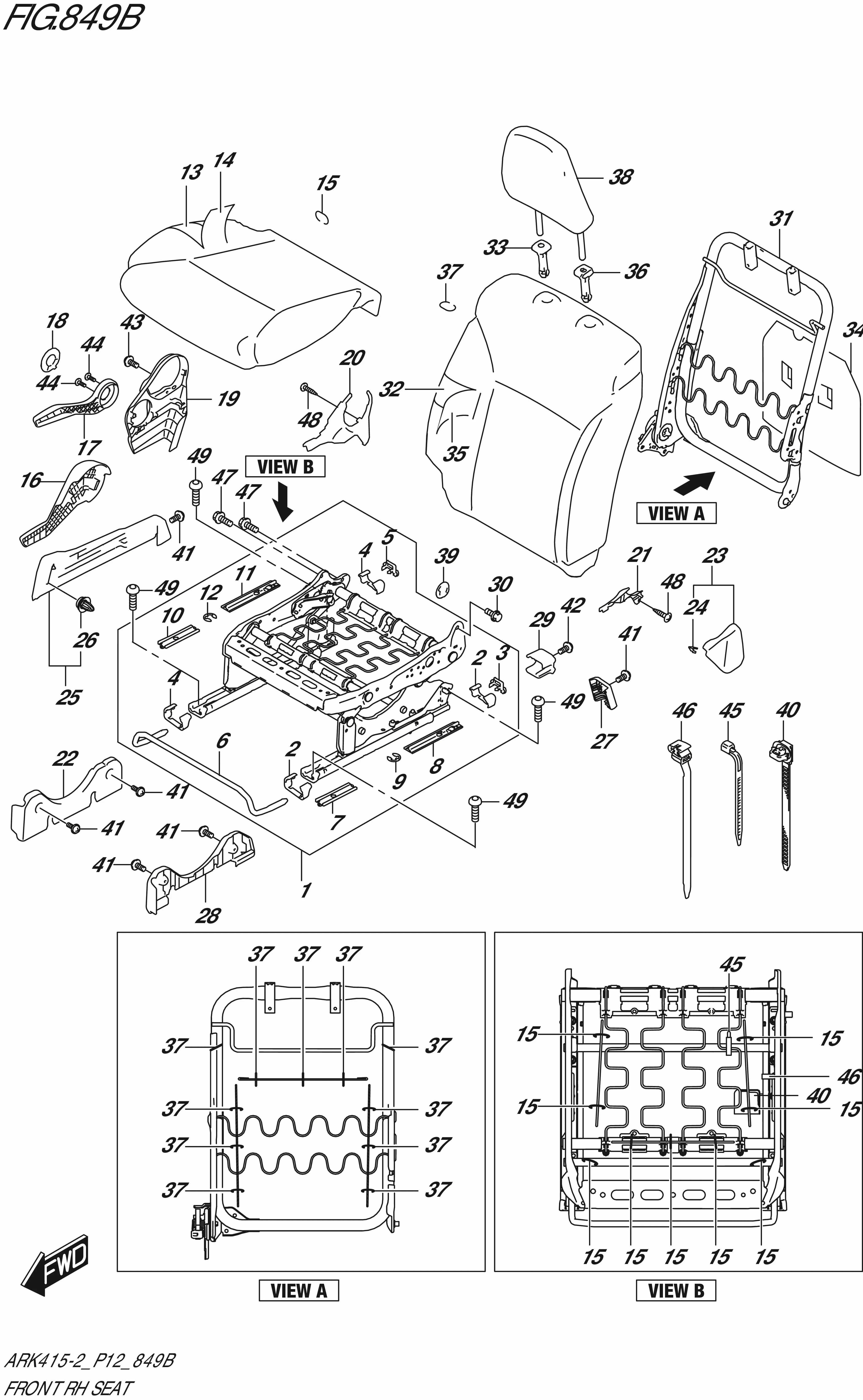

FIG. 849B - FRONT RH SEAT (GX)

FIG. 849B - FRONT RH SEAT (GX)
No No. Part Description Qty Price Per Pcs Remarks
1 85103-73R21-000 FRAME ASSY,FR CUSH,R 1 Rp2.694.000
2 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500
3 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
4 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500
5 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
6 86691-73R00-000 .HANDLE,FR SEAT ADJUSTER 1 Rp130.500
7 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500
8 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000
9 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500
10 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500
11 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000
12 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500
13 85160-73R10-000 PAD,FR CUSH 1 Rp338.500
14-1 85180-73R50-DHQ TRIM,FR CUSH,R (BEIGE/BROWN) 1 Rp800.000
14-2 85180-73R50-DWG TRIM,FR CUSH,R (BLACK) 1 Rp800.000
15 09387-19001-000
SUB: 09387B19001N000		 RING (OD:22.6) 9 Rp9.000
16-2 85211-62R00-5PK KNOB,RCLNG,R (BLACK) 1 Rp83.500
16-1 85211-62R00-V6N KNOB,RCLNG,R (BEIGE) 1 Rp70.500
17-1 85213-62R20-V6N LEVER,SEAT LIFTER,R (BEIGE) 1 Rp46.500
17-2 85213-62R20-5PK LEVER,SEAT LIFTER,R (BLACK) 1 Rp46.500
18-1 85214-68P20-V6N CAP,LIFTER LEVER (BEIGE) 1 Rp8.500
18-2 85214-68P20-5PK CAP,LIFTER LEVER (BLACK) 1 Rp8.500
19-1 85221-63R20-V6N COVER,FR RCLNG OUT,R (BEIGE) 1 Rp22.000
19-2 85221-63R20-5PK COVER,FR RCLNG OUTSIDE,R (BLACK) 1 Rp21.000
20-1 85222-68P00-V6N COVER,RCLNG LWR (BEIGE) 1 Rp10.000
20-2 85222-68P00-5PK COVER,FR RCLNG INS LWR,R (BLACK) 1 Rp10.500
21-1 85222-73R00-V6N COVER,RCLNG INS LWR,R (BEIGE) 1 Rp86.000
21-2 85222-73R00-5PK COVER,RCLNG INS LWR,R (BLACK) 1 Rp8.000
22 85225-76R00-000 COVER,FR RISER OUTSIDE,R 1 Rp17.000
23-1 85241-68P10-V6N COVER,FR RCLNG INS,R (BEIGE) 1 Rp10.000
23-2 85241M68P10-5PK COVER,RCLNG INS,R (BLACK) 1 Rp29.000
24 85249M68P00-000 .CLIP 1 Rp9.500
25-2 85243-81P00-5PK COVER,RISER OUTSIDE,R (BLACK) 1 Rp30.000
25-1 85243-81P00-V6N COVER,RISER OUTSIDE,R (BEIGE) 1 Rp24.000
26 09409-10313-000 .CLIP 1 Rp16.500
27-1 85244-73R00-V6N COVER,FR RISER INS RR,R (BEIGE) 1 Rp12.500
27-2 85244-73R00-5PK COVER,FR RISER INS RR,R (BLACK) 1 Rp6.500
28 85245-76R00-000 COVER,FR RISER INSIDE,R 1 Rp17.000
29 85280-81P00-000 COVER,FR HARNESS BRACKET 1 Rp6.500
30 85295-58J01-000
SUB: 85295B58J01N000		 BOLT,FR BACK FIX 1 Rp34.000
31 85303-73R00-000 FRAME ASSY,FR BACK,R 1 Rp1.012.000
32 85360-73R00-000 PAD,FR BACK,R 1 Rp346.000
33-1 85341-73R00-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp49.000
33-2 85341-73R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp53.000
34 85369-74L00-000 SILENCER,FR BACK 1 Rp40.000
35-1 85380-73R10-DHQ TRIM,FR BACK,R (BEIGE/BROWN) 1 Rp2.327.000
35-2 85380-73R10-DWG TRIM,FR BACK,R (BLACK) 1 Rp2.327.000
36-1 85840-73R00-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp49.000
36-2 85840-73R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp53.000
37 09387-19001-000
SUB: 09387B19001N000		 RING (OD:22.6) 11 Rp9.000
38-1 86401-73R00-DJV HEADRESTRAINT ASSY (BEIGE) 1 Rp747.000
38-2 86401-73R00-DWH HEADRESTRAINT ASSY (BLACK) 1 Rp730.500
39 87286-81P00-000 BUSH,FR BACK FIX 1 Rp37.000
40 96619-59L00-000 CLAMP 1 Rp24.500
41 09132-04037-000 SCREW (4X10) 6 Rp15.000
42 09132-04037-000 SCREW (4X10) 1 Rp15.000
43 09132-04037-000 SCREW (4X10) 1 Rp15.000
44 09132-05064-000 SCREW (5X11) 2 Rp17.500
45 36990-25G00-000
SUB: 09407-14403L000		 CLAMP,L:125 (L:125) 1 Rp13.000
46 09407M14414-000 CLAMP (L:140) 1 Rp6.500
47 01550-1016A-000
SUB: 01550B1016AN000		 BOLT (10X16) 2 Rp5.500
48 03541-0410A-000 SCREW 2 Rp11.000
49 09119-08107-000 BOLT (8X25) 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
