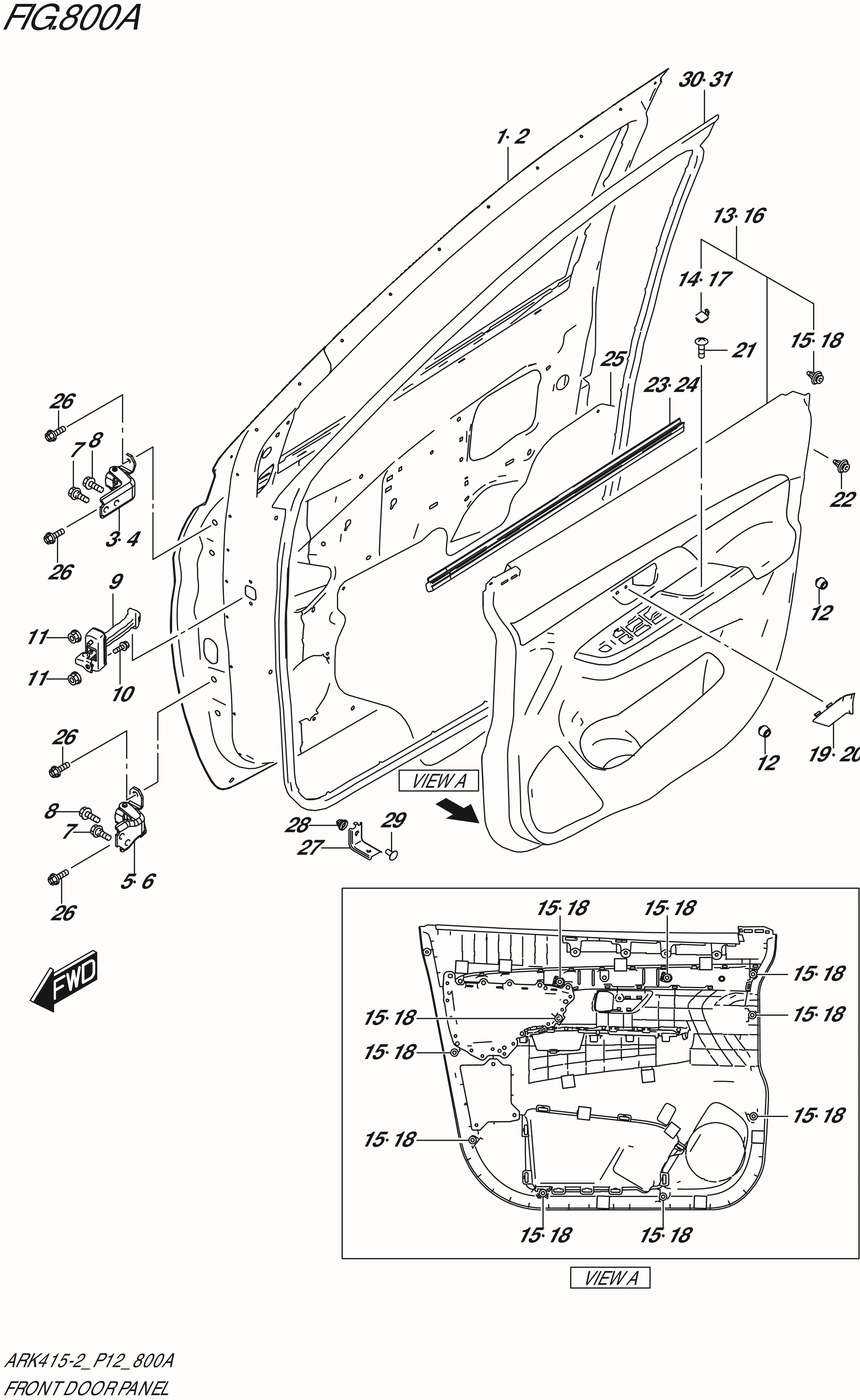

FIG. 800A - Front Door Panel

No	No. Part	Description	Qty	Price Per Pcs
1	68001-73R02-000 SUB: 68001-73R00-000	PANEL ASSY,FR DR,R	1	Rp2.247.000
2	68002-73R02-000 SUB: 68002-73R00-000	PANEL ASSY,FR DR,L	1	Rp2.247.000
3	69310M68L00-000 SUB: 69310-68LB0-000	HINGE,FR DR UPPER,R	1	Rp82.500
4	69320M68L00-000 SUB: 69320-68LB0-000	HINGE,FR DR UPPER,L	1	Rp82.500
5	69330M68L00-000 SUB: 69330-68LB0-000	HINGE,FR DR LOWER,R	1	Rp74.000
6	69340M68L00-000 SUB: 69340-68LB0-000	HINGE,FR DR LOWER,L	1	Rp74.000
7	09113-08001-000	BOLT (8X20)	4	Rp18.500
8	01551-0820A-000	BOLT	4	Rp17.500
9	81830-63RA3-000 SUB: 81830-63RA0-000	STOP,FRONT DOOR OPEN	2	Rp83.000
10	09112-08015-000	BOLT (8X25)	2	Rp32.000
11	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	4	Rp2.000
12	82711-51K00-000	CUSHION	4	Rp39.000
13	83710-73R00-DD1	TRIM,FR DR,R (BEIGE,BROWN)	1	Rp1.121.500
14	83752-80J00-V6N	.CAP,DR INS PULL CASE (BEIGE)	1	Rp58.000
15	09409-10327-000 SUB: 09409B10312N000	.CLIP	10	Rp5.000
16	83720-73R00-DD1	TRIM,FR DR,L (BEIGE,BROWN)	1	Rp1.121.500
17	83752-80J00-V6N	.CAP,DR INS PULL CASE (BEIGE)	1	Rp58.000
18	09409-10327-000 SUB: 09409B10312N000	.CLIP	10	Rp5.000
19	83755-74L00-V6N SUB: 83755B74L00NV6N	CAP,INSIDE HDL BEZEL,R (BEIGE)	1	Rp86.500
20	83756-74L00-V6N SUB: 83756B74L00NV6N	CAP,INSIDE HDL BEZEL,L (BEIGE)	1	Rp85.500
21	09132-05058-000	SCREW (5X12)	2	Rp14.000
22	09409-06314-V6N	CLIP (5.9X20.5,BEIGE)	2	Rp19.500
23	83851-73R00-000	WEATHERSTRIP,FR DR INNER,R	1	Rp57.000
24	83861-73R00-000	WEATHERSTRIP,FR DR INNER,L	1	Rp57.000
25	83911-73R00-000	COVER,FR DR SEALING	2	Rp10.000
26	09103-08546-000	BOLT (8X24)	8	Rp26.500
27	83751-67P00-000	BRACKET,DR TRIM	2	Rp11.500
28	71851M70F00-000 SUB: 09148-06007-000	NUT (M6)	2	Rp4.000
29	03141M0612A-000 SUB: 03241-0612A-000	SCREW	2	Rp4.500
30	84641-73R00-000	WEATHERSTRIP,FR DR OPNG,R	1	Rp166.000
31	84651-73R00-000	WEATHERSTRIP,FR DR OPNG,L	1	Rp166.000
