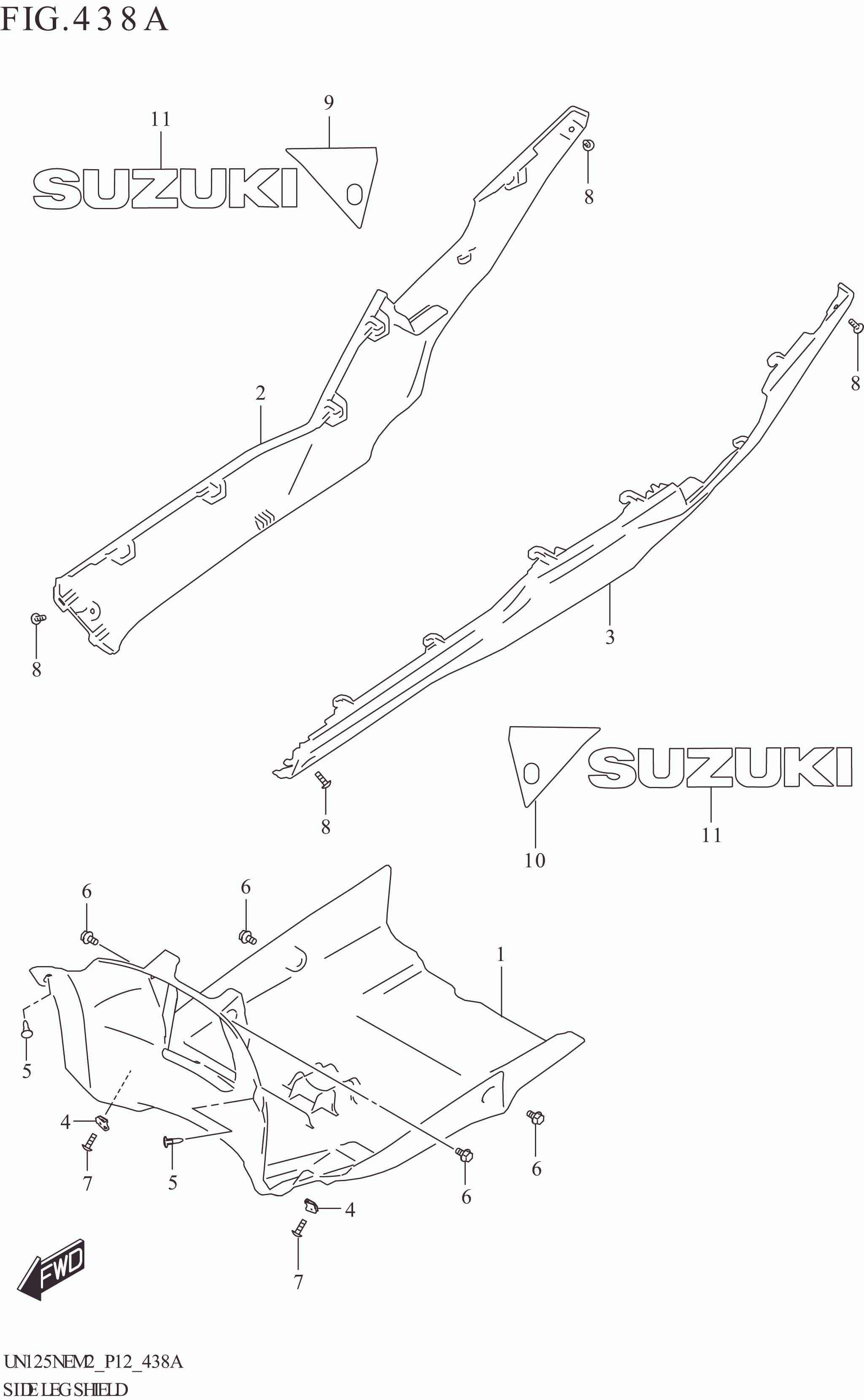

SIDE LEG SHIELD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	48131-44K20-000 SUB: 48131-44K10-000	COVER,UNDER	1	Rp108.500
2-1	48134-14L00-YPA	SHIELD,LEG SIDE RR,R (WHITE)	1	Rp217.500	9 COLOR:A8D
2-2	48134-14L00-QVN	SHIELD,LEG SIDE RR,R (ORANGE)	1	Rp217.500	9 COLOR:CC7
2-3	48134-14L00-PGZ	SHIELD,LEG SIDE RR,R (GRAY)	1	Rp217.500	9 COLOR:CC8
2-4	48134-14L00-YKV	SHIELD,LEG SIDE RR,R (BLACK)	1	Rp217.500	9 COLOR:KGL
3-1	48135-14L00-YPA	SHIELD,LEG SIDE RR,L (WHITE)	1	Rp217.500	9 COLOR:A8D
3-2	48135-14L00-QVN	SHIELD,LEG SIDE RR,L (ORANGE)	1	Rp217.500	9 COLOR:CC7
3-3	48135-14L00-PGZ	SHIELD,LEG SIDE RR,L (GRAY)	1	Rp217.500	9 COLOR:CC8
3-4	48135-14L00-YKV	SHIELD,LEG SIDE RR,L (BLACK)	1	Rp217.500	9 COLOR:KGL
4	09148-05060-000	NUT (M5)	2	Rp29.500
5-1	09409-06L07-000	CLIP	2	Rp10.000	HARYANA
6	01550-0612A-000	BOLT	4	Rp3.500
7	03541-0516A-000	SCREW	2	Rp3.500
8	03541-0516B-000	SCREW	4	Rp13.000
9-1	68163-14L00-JDT	TAPE,LEG SIDE REAR,R (BLACK,WHITE)	1	Rp19.000	9 COLOR:A8D
9-2	68163-14L00-CDG	TAPE,LEG SIDE REAR,R	1	Rp19.000	9 COLOR:CC7
9-3	68163-14L00-AHW	TAPE,LEG SIDE REAR,R (GRAY,BLACK)	1	Rp19.000	9 COLOR:CC8
10-1	68164-14L00-JDT	TAPE,LEG SIDE REAR,L (BLACK,WHITE)	1	Rp19.000	9 COLOR:A8D
10-2	68164-14L00-CDG	TAPE,LEG SIDE REAR,L	1	Rp19.000	9 COLOR:CC7
10-3	68164-14L00-AHW	TAPE,LEG SIDE REAR,L (GRAY,BLACK)	1	Rp19.000	9 COLOR:CC8
11-1	68171-14L00-YVB	EMBLEM,"SUZUKI" (BLACK)	2	Rp23.000	9 COLOR:A8D,CC7
11-2	68171-14L00-AR4	EMBLEM,"SUZUKI" (BLACK)	2	Rp16.500	9 COLOR:CC8
11-3	68171-14L00-KGL	EMBLEM,"SUZUKI" (BLACK)	2	Rp15.500	9 COLOR:KGL
