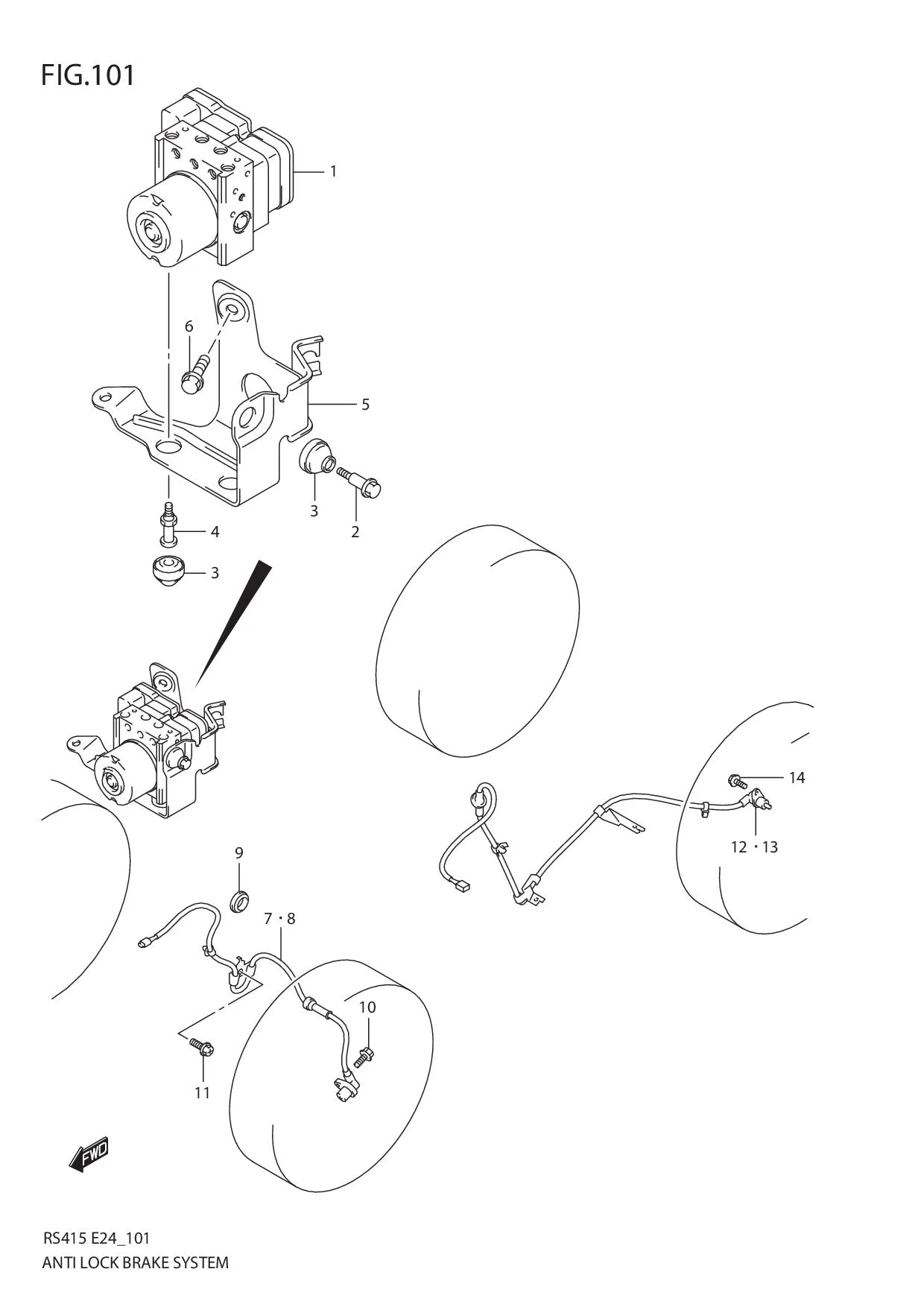

FIG.101 ANTI LOCK BRAKE SYSTEM

FIG.101 ANTI LOCK BRAKE SYSTEM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	56110-63JA2-000 SUB: 56110-63JA0-000	ACTUATOR ASSY, ABS	1	Rp17.211.500
2	56111-75F00-000	BOLT, ACTUATOR MOUNT	1	Rp42.500
3	56112-75F00-000	DAMPER, ACTUATOR MOUNT	3	Rp40.000
4	DISCONTINUE SUB: 56113-59J00-000	BOLT, ACTUATOR LWR MOUNT	2	-
5	DISCONTINUE SUB: 56161-62J00-000	BRACKET, ACTUATOR	1	-
6	01550-0812A-000 SUB: 01550B08123N000	BOLT	3	Rp3.500
7	56210-62J02-000 SUB: 56210-62J00-000	SENSOR, FRONT WHEEL RH	1	Rp1.388.000
8	56220-62J02-000 SUB: 56220-62J00-000	SENSOR, FRONT WHEEL LH	1	Rp1.347.000
9	56211M54G00-000	GROMMET, FR SENSOR HARNESS	2	Rp8.000
10	01551-0816C-000 SUB: 01551-08163-000	SCREW	2	Rp13.500
11	02162-0612B-000 SUB: 02162-06123-000	SCREW	2	Rp16.000
12	56310-62J01-000 SUB: 56310-62J00-000	SENSOR, REAR WHEEL RH	1	Rp1.645.500
13	56320-62J01-000 SUB: 56320-62J00-000	SENSOR, REAR WHEEL LH	1	Rp1.645.500
14	02162-0616A-000 SUB: 02162-06163L000	BOLT	2	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
