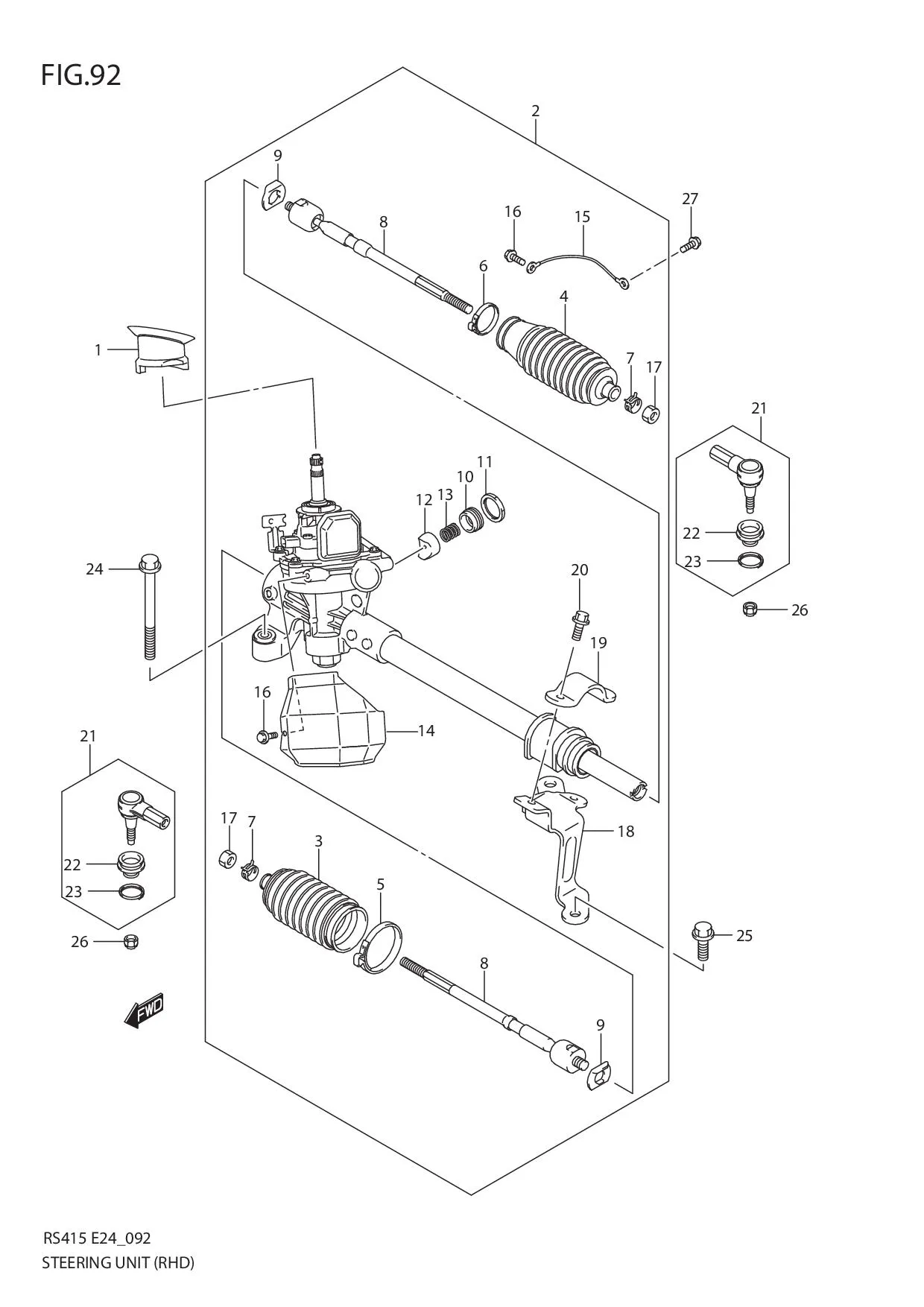

FIG.92 STEERING UNIT (RHD)

FIG.92 STEERING UNIT (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 48451M63J00-000 GROMMET, STEERING GEAR 1 Rp54.000
2-1 48580-63J04-000
SUB: 48580-63J00-000		 BOX ASSY, STRG GEAR 1 Rp24.640.500 E24,E30
2-2 48580-63J10-000 BOX ASSY, STRG GEAR 1 - E35
3 48571-63J00-000 •BOOT, STEERING PINION SIDE 1 Rp235.000
4 48572-63J00-000 •BOOT, STEERING RACK SIDE 1 Rp235.000
5 48575-63J00-000 •BAND, PINION SIDE 1 Rp101.000
6 48576-63J00-000 •BAND, RACK SIDE 1 Rp89.500
7 48871-63J00-000
SUB: 48871B63J00N000		 •CLAMP, BOOT 2 Rp44.500
8 48830-63J00-000 •TIE ROD, STEERING 2 Rp744.000
9 48841-63J00-000 •WASHER, TIE ROD LOCK 2 Rp87.500
10 48592-63J00-000 •PLUG, ADJUSTING 1 Rp151.500
11 48593-63J00-000 •NUT, PLUG 1 Rp96.000
12 48534-63J00-000 •PLUNGER, STEERING RACK 1 Rp244.000
13 48591-63J00-000 •SPRING, RACK PLUNGER 1 Rp85.500
14 DISCONTINUE
SUB: 48574-63J00-000		 •HEAT INSULATOR 1 -
15 DISCONTINUE
SUB: 48531-63J00-000		 •WIRE, EARTH 1 -
16 DISCONTINUE
SUB: 48577-63J00-000		 •BOLT 3 -
17 DISCONTINUE
SUB: 48817-63J00-000		 •NUT, TIE ROD END LOCK 2 -
18 DISCONTINUE
SUB: 48521-63J00-000		 •BRACKET, GEAR RACK SIDE NO.1 1 -
19 48522-63J00-000 •BRACKET, GEAR RACK SIDE NO.2 1 Rp160.500
20 48523-63J00-000 •BOLT, BRACKET 2 Rp75.500
21 48810-60810-000
SUB: 48810-63J00-000		 END, STEERING TIE ROD 2 Rp593.500
22 48800-60810-000
SUB: 48819-60B00-000		 •BOOT, TIE ROD END 2 Rp180.000
23 09401-23402-000 •CLIP 2 Rp20.500
24 48528-79J00-000
SUB: 48528-63J00-000		 BOLT, STEERING GEAR BUSH 2 Rp53.000
25 DISCONTINUE
SUB: 09103-10217-000		 BOLT (10X30) 2 -
26 DISCONTINUE
SUB: 09159-12053-000		 NUT 2 -
27 DISCONTINUE
SUB: 09115-06006-000		 BOLT (6X16) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
