SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.78 FRONT SUSPENSIONFIG.79 FRONT STABILIZERFIG.80 FRONT DRIVE SHAFT (RS413:MT)FIG.81 FRONT DRIVE SHAFT (RS413:AT)FIG.82 FRONT DRIVE SHAFT (RS415:MT)FIG.83 FRONT DRIVE SHAFT (RS415:AT)FIG.84 FRONT WHEEL HUBFIG.85 FRONT SUSPENSION FRAMEFIG.86 REAR SUSPENSIONFIG.87 ROAD WHEEL/TIREFIG.88 STEERING WHEEL (W/AUDIO SWITCH)FIG.89 STEERING WHEEL (N/AUDIO SWITCH)FIG.90 STEERING COLUMNFIG.91 STEERING UNIT (LHD)FIG.92 STEERING UNIT (RHD)FIG.93 PEDAL/PEDAL BRACKET (LHD:MT)FIG.94 PEDAL/PEDAL BRACKET (LHD:AT)FIG.95 PEDAL/PEDAL BRACKET (RHD:MT)FIG.96 PEDAL/PEDAL BRACKET (RHD:AT)FIG.97 BRAKE MASTER CYLINDER (LHD)FIG.98 BRAKE MASTER CYLINDER (RHD)FIG.99 BRAKE PIPING (LHD)FIG.100 BRAKE PIPING (RHD)FIG.101 ANTI LOCK BRAKE SYSTEMFIG.102 FRONT WHEEL BRAKEFIG.103 REAR WHEEL BRAKEFIG.104 PARKING BRAKE

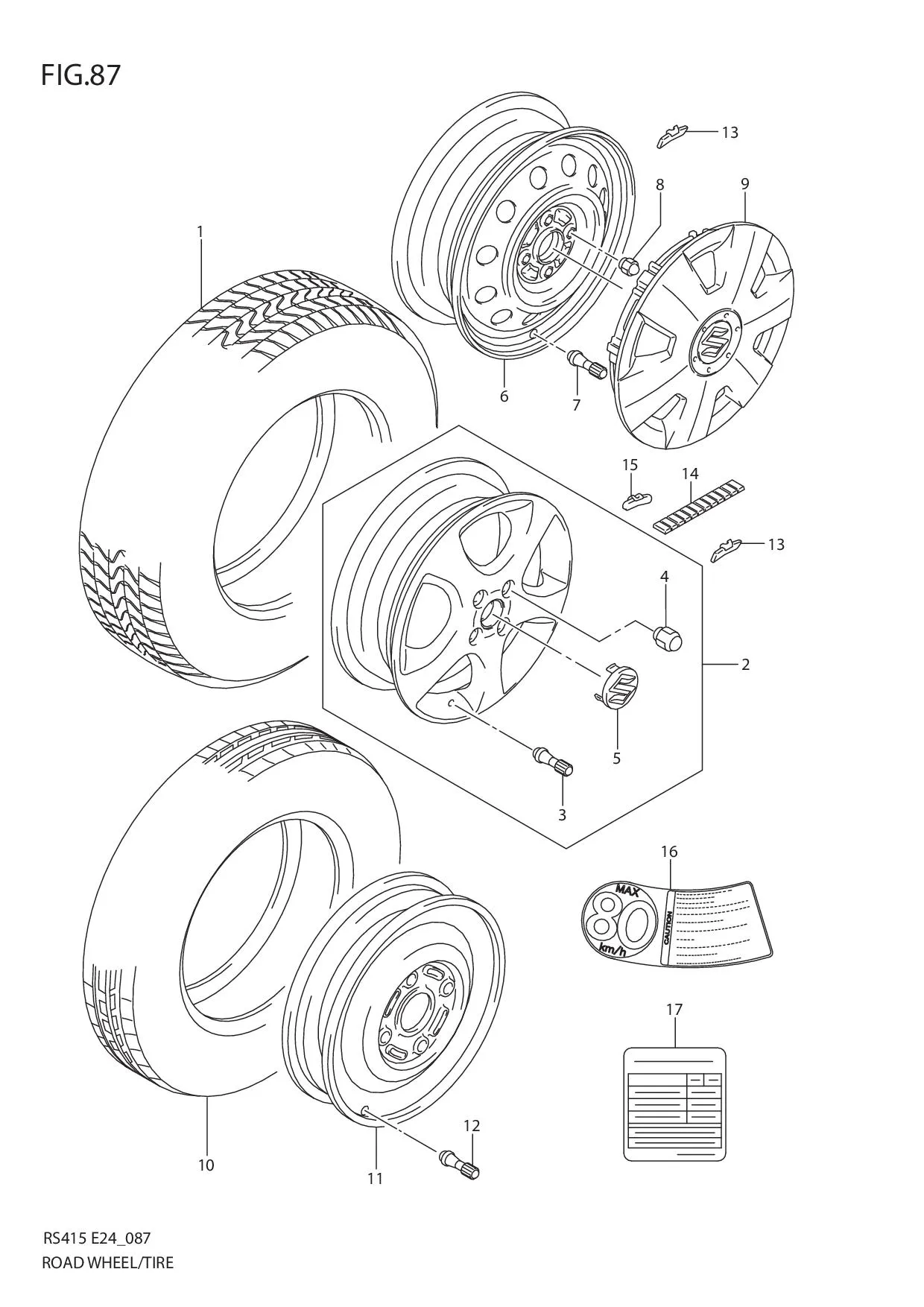

FIG.87 ROAD WHEEL/TIRE

FIG.87 ROAD WHEEL/TIRE
No No. Part Description Qty Price Per Pcs Remarks
1-2 43110-63J30-000 TIRE (165/70R14 81S) 4 - W/STEEL WHEEL RS413:E96
1-3 DISCONTINUE
SUB: 43110-63J20-000		 TIRE (185/60R14 84H) 4 - W/STEEL WHEEL RS413:E35
1-4 43110-63J40-000 TIRE (185/60R14 84H) 4 - W/STEEL WHEEL RS415:E43,E96
1-1 43110-63J10-000 TIRE (165/70R14 81S) 4 - W/STEEL WHEEL RS413:E30
2 DISCONTINUE
SUB: 43200-63830-27N		 WHEEL SET, AL (15X5 1/2JJ) (SILVER) 4 - AL WHEEL
3 43130-60E10-000 •VALVE (TR414) 4 Rp57.000 W/AL WHEEL
4 09159-12079-000
SUB: 09159B12050N000		 •NUT 16 Rp23.500 W/AL WHEEL
5 43252-83S00-CZ2
SUB: 43252-63J10-CZ2		 •CAP, WHEEL CENTER (SILVER) 4 Rp184.500 W/AL WHEEL
6-1 43210-63J10-09L WHEEL (14X5J) (BLACK) 4 - STEEL WHEEL RS413:E30,E96
6-2 DISCONTINUE
SUB: 43210-63J30-09L		 WHEEL (15X5 1/2JJ) (BLACK) 4 - STEEL WHEEL RS413:E35, RS415:E24,E30,E43,E96
7 43130-60E10-000 VALVE (TR414) 4 Rp57.000 W/STEEL WHEEL
8 09140-12042-000 NUT 16 Rp21.000 W/STEEL WHEEL
9-1 43250-63J10-ZGJ CAP ASSY, WHEEL FULL (SILVER) 4 - W/STEEL WHEEL RS413:E30,E96
9-2 DISCONTINUE
SUB: 43250-63J50-ZH1		 CAP ASSY, WHEEL FULL (SILVER) 4 - W/STEEL WHEEL RS413:E35 RS415:E24,E30,E43,E96
10-1 43180-60G10-000 TIRE, SPARE (T125/70D15) 1 - E24
10-2 DISCONTINUE
SUB: 43180-60G11-000		 TIRE, SPARE (T125/70D15) 1 - E30,E35,E96
10-3 43180-62J10-000 TIRE, SPARE (T125/70D15) 1 - E43
11 DISCONTINUE
SUB: 43290-63J20-000		 WHEEL, SPARE (15X4T) 1 -
12 43130-60E10-000 VALVE (TR414) 1 Rp57.000
13-9 DISCONTINUE
SUB: 43231-73H00-000		 WEIGHT, WHEEL BALANCE (45G) 0 - W/STEEL WHEEL
13-8 DISCONTINUE
SUB: 43228-73H00-000		 WEIGHT, WHEEL BALANCE (40G) 0 - W/STEEL WHEEL
13-7 DISCONTINUE
SUB: 43227-73H00-000		 WEIGHT, WHEEL BALANCE (35G) 0 - W/STEEL WHEEL
13-6 DISCONTINUE
SUB: 43226-73H00-000		 WEIGHT, WHEEL BALANCE (30G) 0 - W/STEEL WHEEL
13-4 DISCONTINUE
SUB: 43224-73H00-000		 WEIGHT, WHEEL BALANCE (20G) 0 - W/STEEL WHEEL
13-3 DISCONTINUE
SUB: 43223-73H00-000		 WEIGHT, WHEEL BALANCE (15G) 0 - W/STEEL WHEEL
13-2 DISCONTINUE
SUB: 43222-73H00-000		 WEIGHT, WHEEL BALANCE (10G) 0 - W/STEEL WHEEL
13-1 DISCONTINUE
SUB: 43221-73H00-000		 WEIGHT, WHEEL BALANCE (5G) 0 - W/STEEL WHEEL
13-5 DISCONTINUE
SUB: 43225-73H00-000		 WEIGHT, WHEEL BALANCE (25G) 0 - W/STEEL WHEEL
14-10 43221-59J90-000 WEIGHT, WHEEL BALANCE (50G) 0 Rp60.000 W/AL WHEEL
14-9 43221-59J80-000 WEIGHT, WHEEL BALANCE (45G) 0 Rp57.000 W/AL WHEEL
14-8 43221-59J70-000 WEIGHT, WHEEL BALANCE (40G) 0 Rp54.500 W/AL WHEEL
14-7 43221-59J60-000 WEIGHT, WHEEL BALANCE (35G) 0 Rp52.500 W/AL WHEEL
14-6 43221-59J50-000 WEIGHT, WHEEL BALANCE (30G) 0 Rp49.500 W/AL WHEEL
14-4 43221-59J30-000 WEIGHT, WHEEL BALANCE (20G) 0 Rp44.000 W/AL WHEEL
14-3 43221-59J20-000 WEIGHT, WHEEL BALANCE (15G) 0 Rp42.000 W/AL WHEEL
14-2 43221-59J10-000 WEIGHT, WHEEL BALANCE (10G) 0 Rp40.000 W/AL WHEEL
14-1 43221-59J00-000 WEIGHT, WHEEL BALANCE (5G) 0 Rp32.000 W/AL WHEEL
14-5 43221-59J40-000 WEIGHT, WHEEL BALANCE (25G) 0 Rp47.000 W/AL WHEEL
15-5 DISCONTINUE
SUB: 43225-73H10-000		 WEIGHT, WHEEL BALANCE (25G) 0 - W/AL WHEEL
15-9 DISCONTINUE
SUB: 43231-54G10-000		 WEIGHT, WHEEL BALANCE (45G) 0 - W/AL WHEEL
15-8 DISCONTINUE
SUB: 43228-73H10-000		 WEIGHT, WHEEL BALANCE (40G) 0 - W/AL WHEEL
15-7 DISCONTINUE
SUB: 43227-73H10-000		 WEIGHT, WHEEL BALANCE (35G) 0 - W/AL WHEEL
15-6 DISCONTINUE
SUB: 43226-73H10-000		 WEIGHT, WHEEL BALANCE (30G) 0 - W/AL WHEEL
15-4 DISCONTINUE
SUB: 43224-73H10-000		 WEIGHT, WHEEL BALANCE (20G) 0 - W/AL WHEEL
15-3 DISCONTINUE
SUB: 43223-73H10-000		 WEIGHT, WHEEL BALANCE (15G) 0 - W/AL WHEEL
15-2 DISCONTINUE
SUB: 43222-73H10-000		 WEIGHT, WHEEL BALANCE (10G) 0 - W/AL WHEEL
15-1 43221-73H10-000 WEIGHT, WHEEL BALANCE (5G) 0 Rp33.000 W/AL WHEEL
16-1 79167-63J00-000 PLACARD, SPARE TIRE 1 - E24
16-2 DISCONTINUE
SUB: 79167B60B12N000		 PLACARD, SPARE TIRE 1 - E30,E35,E43,E96
17-1 79161-63J10-000 PLACARD, TIRE INFORMATION 1 - W/TIRE:165 RS413:E30,E96
17-2 79161-63J20-000 PLACARD, TIRE INFORMATION 1 - W/TIRE:185 RS413:E30,E35,E96 RS415:E35,E43,E96
17-3 DISCONTINUE
SUB: 79161-63J40-000		 PLACARD, TIRE INFORMATION 1 - W/TIRE:185 RS415:E24,E30

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
