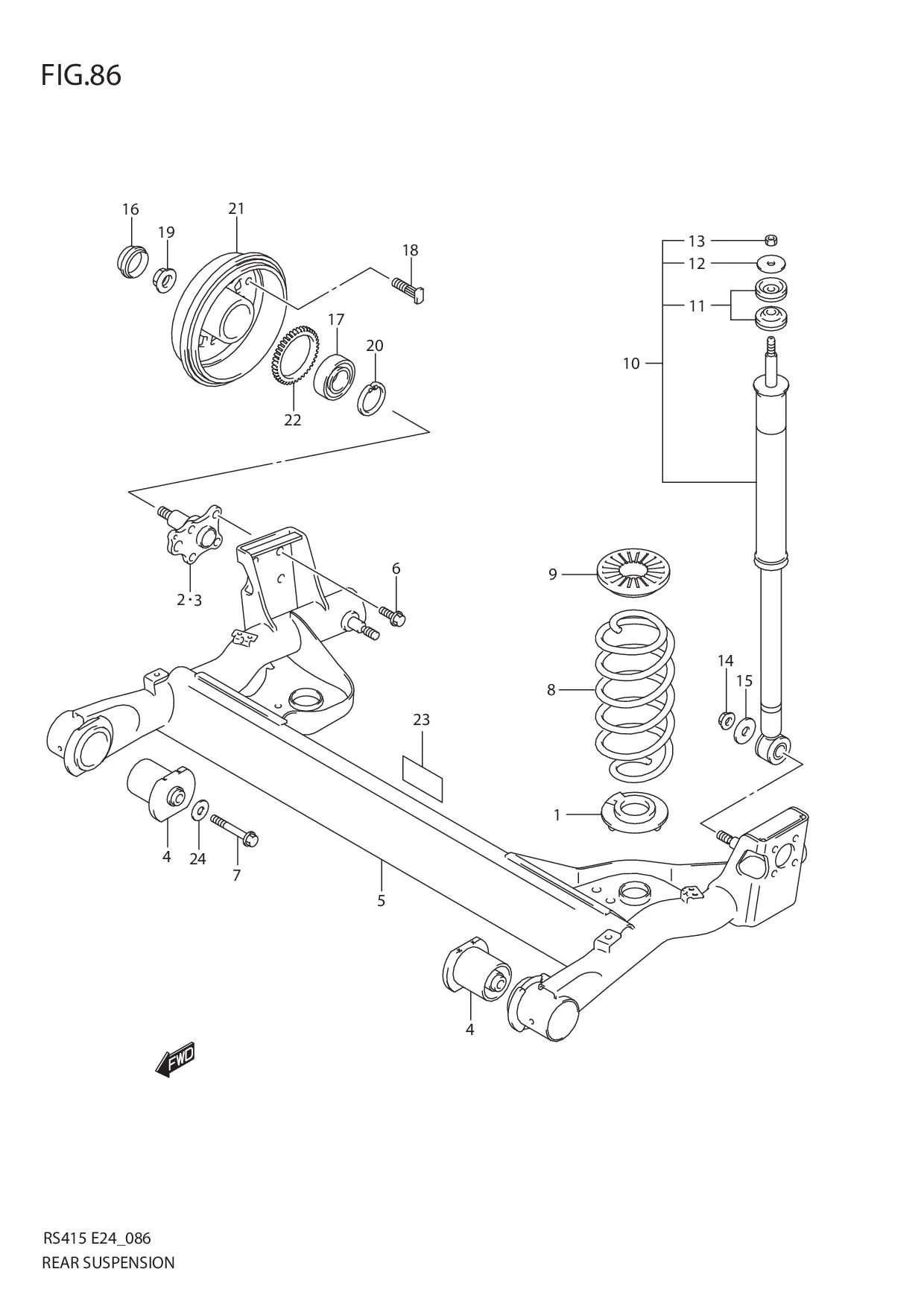

FIG.86 REAR SUSPENSION

FIG.86 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 41312-63J00-000
SUB: 41312B63J00N000		 SEAT, REAR SPRING RUBBER 2 Rp61.000
2 46111M63J10-000 SPINDLE, REAR RH 1 Rp387.000
3 46151M63J10-000 SPINDLE, REAR LH 1 Rp395.500
4 46221-63J00-000 BUSHING, TRAILING ARM 2 Rp783.500
5 46510-63J04-000
SUB: 46510-63J02-000		 AXLE, REAR 1 Rp7.960.000
6 09103-12080-000 BOLT (12X30) 8 Rp36.500
7 09135-12015-000 BOLT (12X115) 2 Rp65.500
8-1 41311-63J00-000 SPRING, REAR COIL 2 - W/TIRE:165
8-2 41311-63J10-000
SUB: 41311B63J10N000		 SPRING, REAR COIL 2 Rp1.153.000 W/TIRE:185
9 41341M63J00-000 SEAT, REAR SPRING UPPER 2 Rp28.500
10 41800-63J02-000
SUB: 41800-63J01-000		 ABSORBER ASSY, REAR SHOCK 2 Rp1.841.500
11 41812-63J00-000 •BUSHING, REAR SHK ABS UPPER 2 Rp109.000
12 DISCONTINUE
SUB: 41813-63J00-000		 •WASHER, REAR SHK ABS UPPER 2 -
13 41814-63J00-000 •NUT, REAR SHK ABS UPPER 2 Rp53.000
14 09159-12045-000 NUT 2 Rp22.000
15 09160-12109-000 WASHER (12.5X38X3.2) 2 Rp30.500
16 43241M68K00-000
SUB: 43241-79001-000		 CAP, SPINDLE 2 Rp14.500
17 46860-63J01-000
SUB: 46860B63J00N000		 BEARING, REAR WHEEL 2 Rp286.500
18 09119-12016-000 BOLT (12X33) 8 Rp27.000
19 09159-18022-000 NUT 2 Rp73.500
20 08331-41589-000
SUB: 08331-41586-000		 CIRCLIP 2 Rp26.000
21 43511-63J00-000 DRUM, REAR BRAKE 2 Rp2.265.500
22 DISCONTINUE
SUB: 56451-62J00-000		 RING, REAR WHEEL SENSOR 2 -
23 DISCONTINUE
SUB: 79271-63J00-000		 LABEL, AXLE 1 -
24 46222M63J00-000 WASHER, TRAILING ARM 2 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
