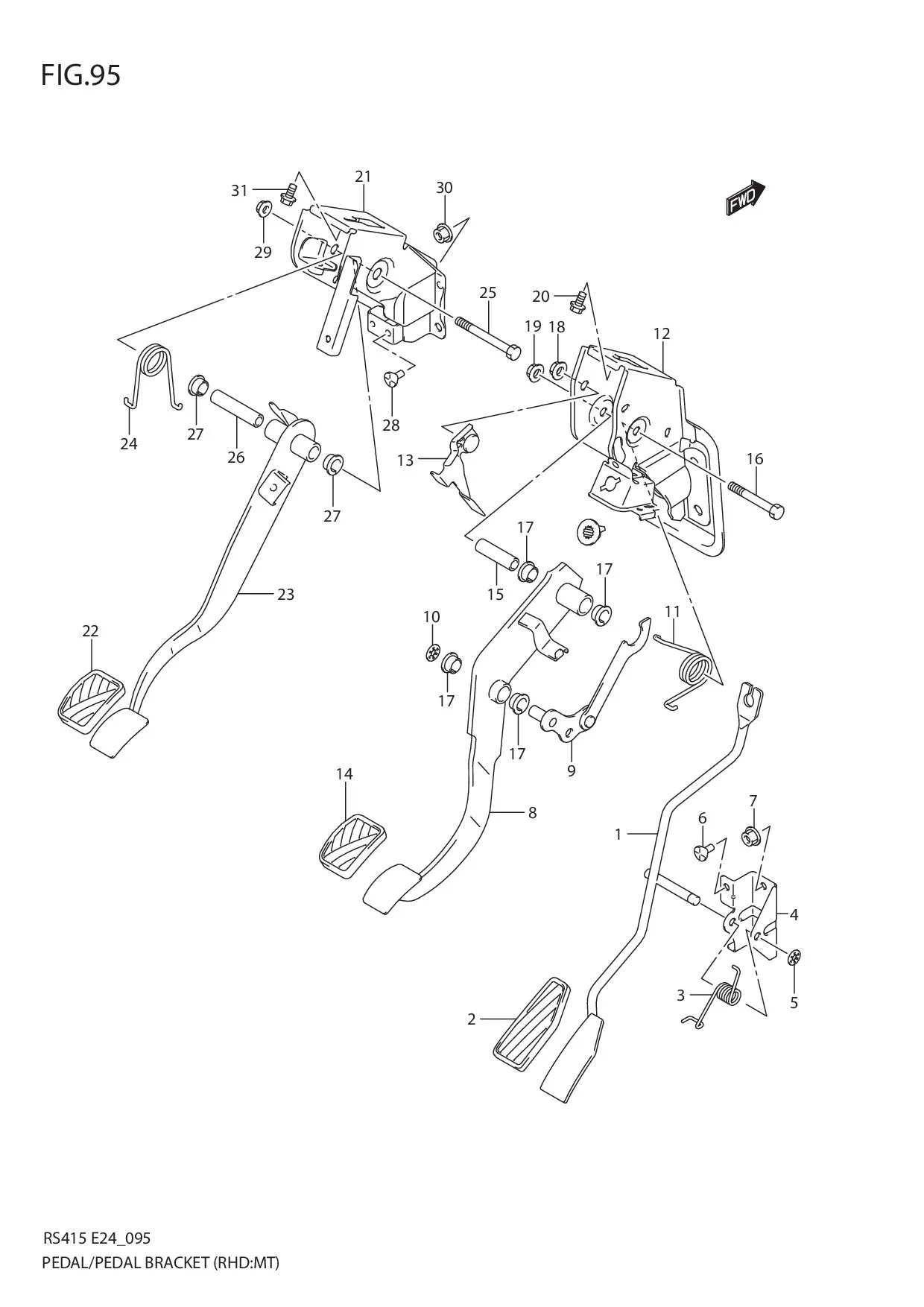

FIG.95 PEDAL/PEDAL BRACKET (RHD:MT)

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 49410-63J00-000	PEDAL, ACCELERATOR	1	-
2	49451M60B00-000	PAD, ACCELERATOR PEDAL	1	Rp12.500
3	DISCONTINUE SUB: 49491-63J00-000	SPRING, ACCELERATOR PEDAL	1	-
4	DISCONTINUE SUB: 49511-63J10-000	BRACKET, ACCELERATOR PEDAL	1	-
5	DISCONTINUE SUB: 09148-09001-000	NUT	1	-
6	09321M06026-000	CUSHION	1	Rp4.500
7	09159-06076-000	NUT	2	Rp19.500
8	DISCONTINUE SUB: 49610-63J00-000	PEDAL, BRAKE	1	-
9	DISCONTINUE SUB: 49630-63J00-000	LEVER, BRAKE PEDAL	1	-
10	DISCONTINUE SUB: 49639-75H00-000	NUT, BRAKE PEDAL LEVER	1	-
11	DISCONTINUE SUB: 49691-63J00-000	SPRING, BRAKE PEDAL	1	-
12	DISCONTINUE SUB: 49710-63J00-000	BRACKET, BRAKE PEDAL	1	-
13	DISCONTINUE SUB: 49719-63J00-000	BRACKET, PEDAL RELEASE	1	-
14	49751M58J00-000	PAD, PEDAL	1	Rp9.500
15	49871M80F00-000	SPACER, BRAKE PEDAL SHAFT	1	Rp8.500
16	DISCONTINUE SUB: 09100-10304-000	BOLT (10X65)	1	-
17	09306M13004-000 SUB: 09307M13005-000	BUSH	4	Rp11.500
18	08316-1010A-000 SUB: 08316-10103-000	NUT	1	Rp3.500
19	08316-1010A-000 SUB: 08316-10103-000	NUT	1	Rp3.500
20	01551-0816C-000 SUB: 01551-08163-000	BOLT	1	Rp13.500
21	DISCONTINUE SUB: 49720-63J20-000	BRACKET, CLUTCH PEDAL	1	-
22	49751M58J00-000	PAD, PEDAL	1	Rp9.500
23	DISCONTINUE SUB: 49810-63J20-000	PEDAL, CLUTCH	1	-
24	DISCONTINUE SUB: 49891-63J00-000	SPRING, CLUTCH PEDAL	1	-
25	09100-10226-000	BOLT (10X85)	1	Rp19.500
26	09180-10121-000	SPACER (10.1X13X73.8)	1	Rp38.500
27	09306M13004-000 SUB: 09307M13005-000	BUSH	2	Rp11.500
28	09321M06026-000	CUSHION	1	Rp4.500
29	08316-1010A-000 SUB: 08316-10103-000	NUT	1	Rp3.500
30	09159-08127-000	NUT	2	Rp11.000
31	01551-0816C-000 SUB: 01551-08163-000	BOLT	1	Rp13.500
