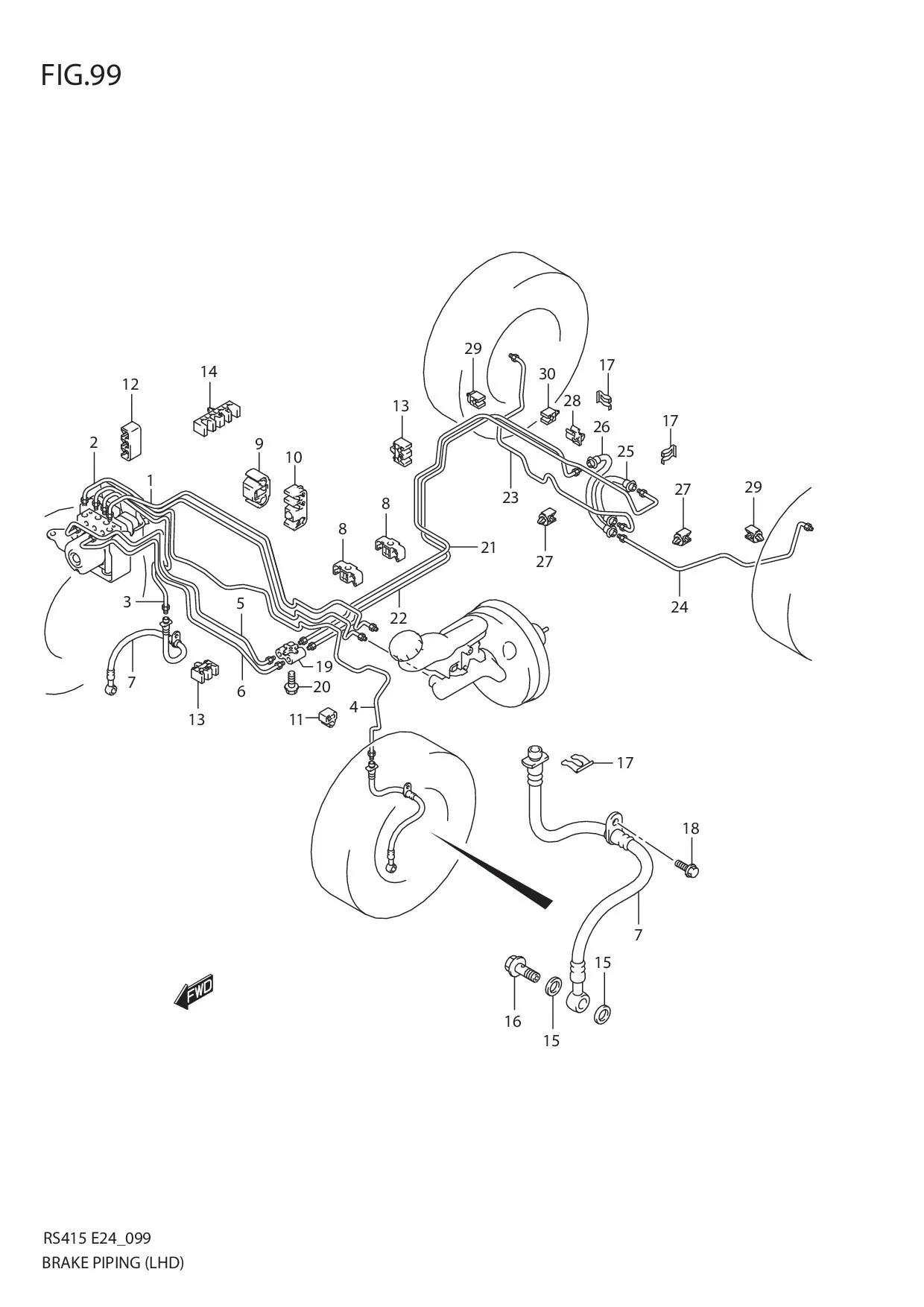

FIG.99 BRAKE PIPING (LHD)

No	No. Part	Description	Qty	Price Per Pcs
1	51410-63J10-000	PIPE, MA PRI TO UNIT	1	-
2	51420-63J10-000	PIPE, MA SEC TO UNIT	1	-
3	DISCONTINUE SUB: 51430-63J00-000	PIPE, UNIT TO FR BK HOSE RH	1	-
4	51440-63J10-000	PIPE, UNIT TO FR BK HOSE LH	1	-
5	DISCONTINUE SUB: 51450-63J00-000	PIPE, UNIT TO JOINT RH	1	-
6	DISCONTINUE SUB: 51460-63J00-000	PIPE, UNIT TO JOINT LH	1	-
7	DISCONTINUE SUB: 51550-63J00-000	HOSE, FR BRAKE FLEXIBLE	2	-
8	51751-77M10-000 SUB: 51751-76G00-000	CLAMP, BRAKE PIPE FLOOR	3	Rp5.500
9	51751-60B00-000	CLAMP, BRAKE PIPE DASH 2	1	Rp29.000
10	51751-77E00-000	CLAMP, BRAKE PIPE DASH 3	1	Rp34.500
11	51752-77M00-000 SUB: 51752-70B00-000	CLAMP, BRAKE PIPE DASH 1	1	Rp5.500
12	51753M74G60-000	CLAMP, BRAKE PIPE UNIT	1	Rp34.500
13	51761-62J20-000	CLAMP, BRAKE PIPE FRAME	5	Rp32.000
14	51761-77M10-000 SUB: 51761-62J40-000	CLAMP, BRAKE PIPE 4	1	Rp6.500
15	09161-10009-000	WASHER (10X15X1.5)	4	Rp12.500
16	09360-10026-000	UNION BOLT	2	Rp25.000
17	09383M13004-000 SUB: 09383-13003-000	E RING	6	Rp7.000
18	01551-0816C-000 SUB: 01551-08163-000	BOLT	2	Rp13.500
19	DISCONTINUE SUB: 51630B82040N000	JOINT, BRAKE 4 WAY	1	-
20	02162-0625A-000 SUB: 02162-06253-000	BOLT	1	Rp3.500
21	DISCONTINUE SUB: 51470-63J00-000	PIPE, JOINT TO RR BK HOSE RH	1	-
22	DISCONTINUE SUB: 51480-63J00-000	PIPE, JOINT TO RR BK HOSE LH	1	-
23	DISCONTINUE SUB: 51510-63J01-000	PIPE, RR BK HOSE TO WHL CYL RH	1	-
24	DISCONTINUE SUB: 51520-63J01-000	PIPE, RR BK HOSE TO WHL CYL LH	1	-
25	DISCONTINUE SUB: 51570-63J00-000	HOSE, RR BRAKE FLEXIBLE RH	1	-
26	DISCONTINUE SUB: 51580-63J00-000	HOSE, RR BRAKE FLEXIBLE LH	1	-
27	51761-62J10-000	CLAMP, BRAKE PIPE AXLE	2	Rp33.500
28	DISCONTINUE SUB: 51761-62J60-000	CLAMP, BRAKE PIPE X MBR	1	-
29	51761-77M00-000 SUB: 51761-62J70-000	CLAMP, BRAKE PIPE AXLE	2	Rp5.500
30	DISCONTINUE SUB: 09403-06317-000	CLAMP, BRAKE PIPE X MBR	2	-
