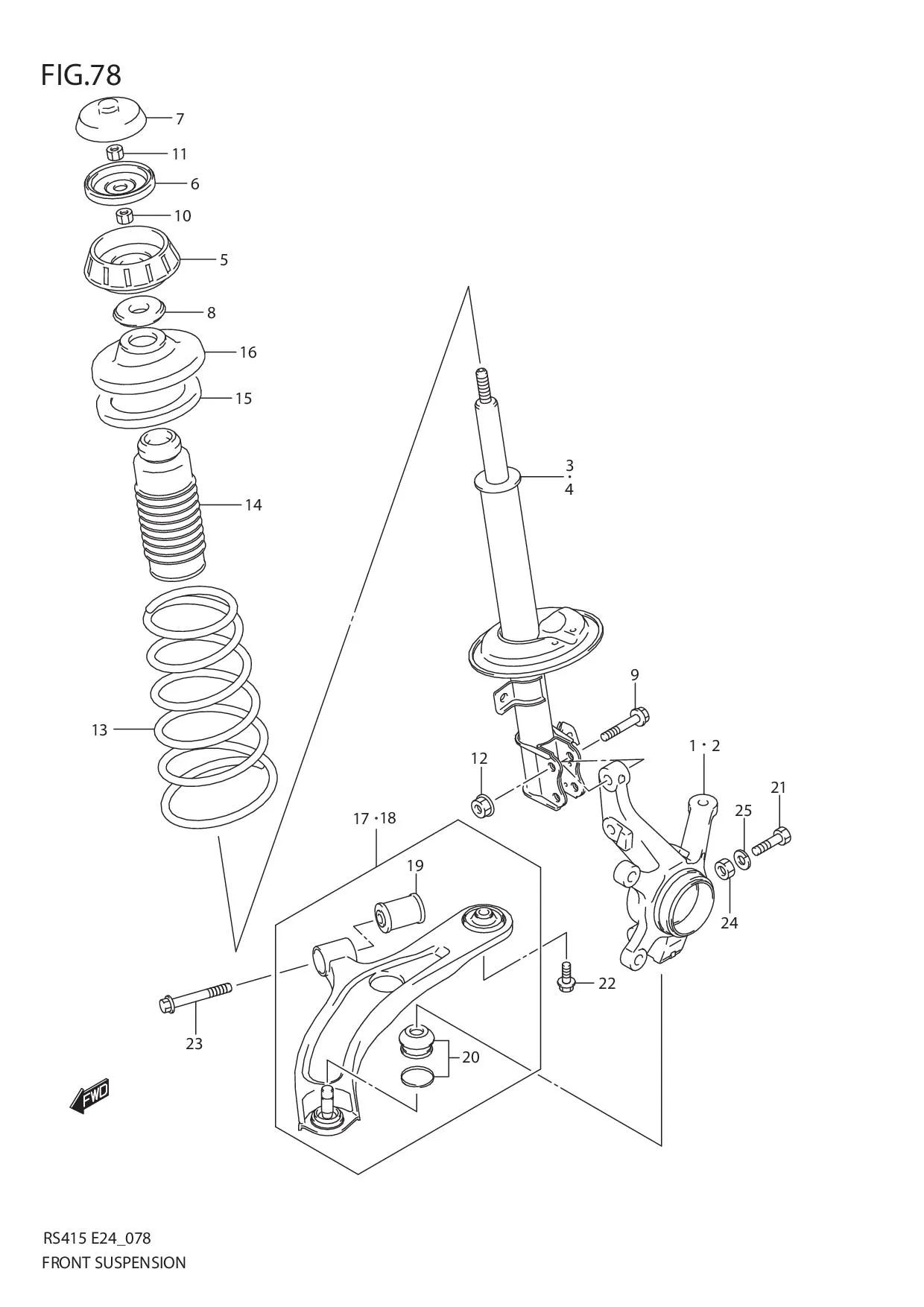

FIG.78 FRONT SUSPENSION

FIG.78 FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111-63J10-000 KNUCKLE, STEERING RH 1 Rp3.823.500
2 45151-63J10-000 KNUCKLE, STEERING LH 1 Rp3.823.500
3 41601-63J12-000
SUB: 41601-63J11-000		 STRUT ASSY, FR SUSPENSION RH 1 Rp2.645.000
4 41602-63J12-000
SUB: 41602-63J11-000		 STRUT ASSY, FR SUSPENSION LH 1 Rp2.645.000
5 41710-71L01-000
SUB: 41710-63J10-000		 SUPPORT, FRONT STRUT 2 Rp654.500
6 41720-80J02-000
SUB: 41720-63J10-000		 STOPPER, FRONT STRUT REBOUND 2 Rp139.500
7 41724M63J00-000 CAP, STRUT ROD 2 Rp34.500
8 41741-58J00-000 BEARING, FRONT STRUT 2 Rp266.500
9 09103M12051-000 BOLT (12X50) 4 Rp10.500
10 09140-12049-000 NUT 2 Rp18.000
11 08310-0012A-000
SUB: 08310-00123L000		 NUT 2 Rp17.500
12 08316-1012A-000
SUB: 08316-10123-000		 NUT 4 Rp6.500
13-2 41111-63J20-000
SUB: 41111B63J20N000		 SPRING, FRONT COIL 2 Rp1.153.000 W/TIRE:185
13-1 41111-63J10-000 SPRING, FRONT COIL 2 Rp1.220.500 W/TIRE:165
14 42111-63J10-000 STOPPER, FRONT BUMP 2 Rp221.000
15 41211M63J00-000 SEAT, FRONT COIL SPRING 2 Rp23.000
16 41230-63J01-000
SUB: 41230-63J00-000		 SEAT, FRONT SPRING 2 Rp264.500
17 45201-63J00-000 ARM ASSY, FRONT SUSPENSION 1 Rp1.622.500
18 45202-63J00-000 ARM ASSY, FRONT SUSPENSION 1 Rp1.622.500
19 45530-63J00-000 •BUSHING, SPNSN ARM FRONT 1 Rp196.000
20 45714-59811-000
SUB: 45714-59810-000		 •SEAL SET, DUST 1 Rp329.500
21 09100-10222-000 BOLT (10X50) 2 Rp27.500
22 09135-14018-000
SUB: 09135-14008-000		 BOLT (14X75) 2 Rp70.500
23 09135-14011-000
SUB: 09135-14009-000		 BOLT (14X90) 2 Rp65.500
24 09159-10048-000 NUT 2 Rp19.500
25 09160-10142-000
SUB: 09160-10085-000		 WASHER (10X20X2.3) 2 Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
