SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATORFIG.50 BATTERYFIG.51 SPEEDOMETERFIG.52 HEADLAMPFIG.53 REAR LAMP AND ROOM LAMPFIG.54 WIRING HARNESSFIG.55 ELECTRICAL CONTROLFIG.56 LOCK SETFIG.57 FRONT WINDOW WIPERFIG.58 WINDOW WASHERFIG.59 REAR WINDOW WIPERFIG.60 RADIO

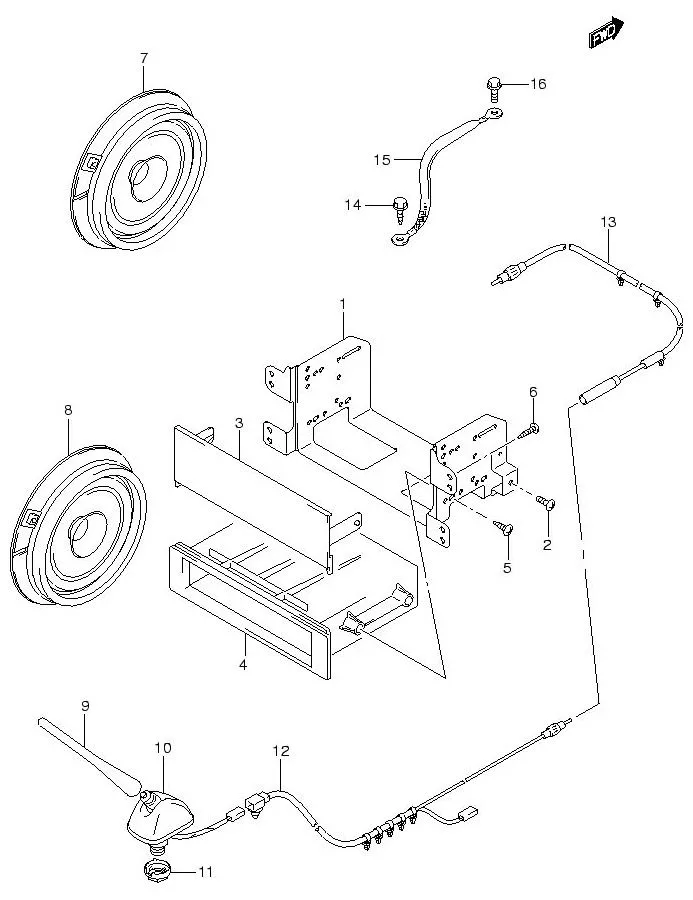

FIG.60 RADIO

FIG.60 RADIO
No No. Part Description Qty Price Per Pcs Remarks
1 39321-63J30-000 BRACKET, TUNER 1 Rp176.000
2 02162-0612A-000 SCREW 2 Rp11.000
3 DISCONTINUE
SUB: 39161-74G00-000		 COVER, RADIO HOLE 1 -
4 39182-77M10-000
SUB: 39182M70E51-000		 POCKET, TUNER 1 Rp38.000
5 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500
6 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
7 DISCONTINUE
SUB: 39102B63J50N000		 SPEAKER ASSY, FRONT 2 -
8 DISCONTINUE
SUB: 39102B63J50N000		 SPEAKER ASSY, REAR 2 -
9 39251-64J00-000
SUB: 39251B64J00N000		 ROD, ANTENNA 1 Rp182.500
10 DISCONTINUE
SUB: 39253B63J10N000		 BASE, ANTENNA 1 -
11 39269-63J00-000
SUB: 39269B63J00N000		 NUT, ANTENNA 1 Rp111.500
12 DISCONTINUE
SUB: 39271B63J11N000		 FEEDER, ROOF RH 1 -
13 DISCONTINUE
SUB: 39270B63J00N000		 FEEDER, INSTRUMENT PANEL 1 -
14 39312-78F10-000
SUB: 39312B78F10N000		 WIRE, NOISE SUPPRESSOR 1 Rp47.500
15 09115-06005-000 BOLT (6X16) 1 Rp14.000
16 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 1 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
