SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATORFIG.50 BATTERYFIG.51 SPEEDOMETERFIG.52 HEADLAMPFIG.53 REAR LAMP AND ROOM LAMPFIG.54 WIRING HARNESSFIG.55 ELECTRICAL CONTROLFIG.56 LOCK SETFIG.57 FRONT WINDOW WIPERFIG.58 WINDOW WASHERFIG.59 REAR WINDOW WIPERFIG.60 RADIO

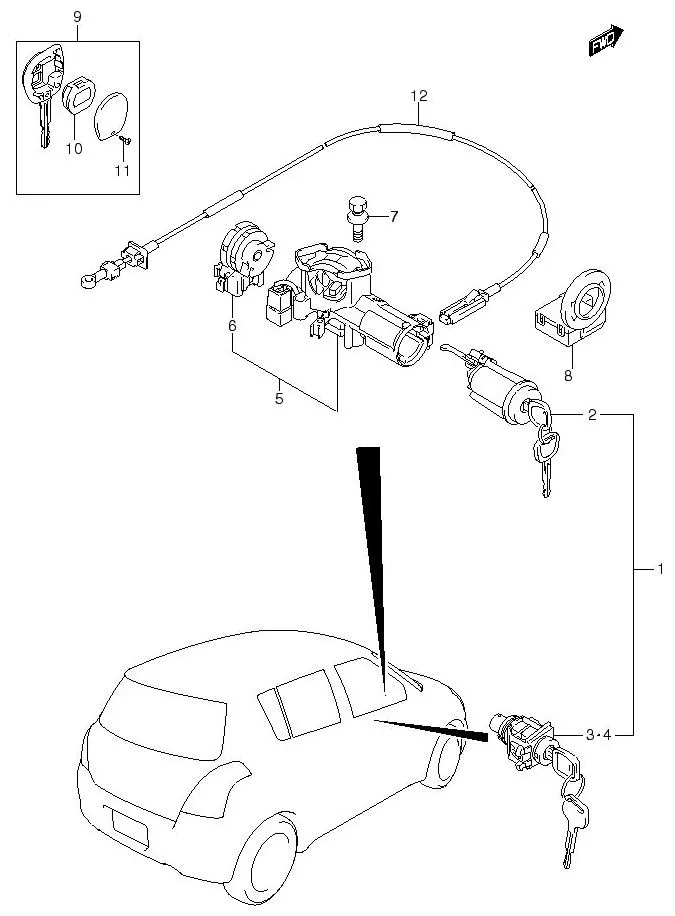

FIG.56 LOCK SET

FIG.56 LOCK SET
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 37109-63860-000		 LOCK SET 1 - AT
1-1 DISCONTINUE
SUB: 37105-58860-000		 LOCK SET 1 - MT
2-1 DISCONTINUE
SUB: 37106-63880-000		 LOCK ASSY, STEERING 1 - MT
2-2 37106-63890-000 LOCK ASSY, STEERING 1 Rp1.980.500 AT
3 DISCONTINUE
SUB: 82270-63810-000		 CYLINDER, FR DOOR LOCK RH 1 -
4 DISCONTINUE
SUB: 82280-63820-000		 CYLINDER, FR DOOR LOCK LH 1 -
5-1 DISCONTINUE
SUB: 37101-62J10-000		 BODY, STEERING LOCK 1 - MT
5-2 DISCONTINUE
SUB: 37101-62J20-000		 BODY, STEERING LOCK 1 - AT
6 37111-58J00-000 SWITCH 1 Rp559.500
7 37152-84G00-000 BOLT, STEERING LOCK 2 Rp35.500
8 33970-62J00-000 CONTROLLER ASSY, IMMOBILIZER 1 Rp3.135.500
9-1 37145-55A10-000
SUB: 37145-55JP0-000		 KEY, BLANK (W/TRANSMITTER) 1 Rp1.564.000 OPT:MT
9-2 37145-55A10-000 KEY, BLANK (W/TRANSMITTER) 1 Rp1.564.000 OPT:AT
10-1 37182-62J30-000
SUB: 37182-62J20-000		 SWITCH ASSY, TRANSMITTER 1 Rp1.079.000 MT
10-2 37182-62J30-000 SWITCH ASSY, TRANSMITTER 1 Rp1.079.000 AT
11 37186-81A00-000 SCREW 1 Rp23.000
12 DISCONTINUE
SUB: 28551-62J10-000		 CABLE, KEY INTERLOCKING 1 - AT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
