SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATORFIG.50 BATTERYFIG.51 SPEEDOMETERFIG.52 HEADLAMPFIG.53 REAR LAMP AND ROOM LAMPFIG.54 WIRING HARNESSFIG.55 ELECTRICAL CONTROLFIG.56 LOCK SETFIG.57 FRONT WINDOW WIPERFIG.58 WINDOW WASHERFIG.59 REAR WINDOW WIPERFIG.60 RADIO

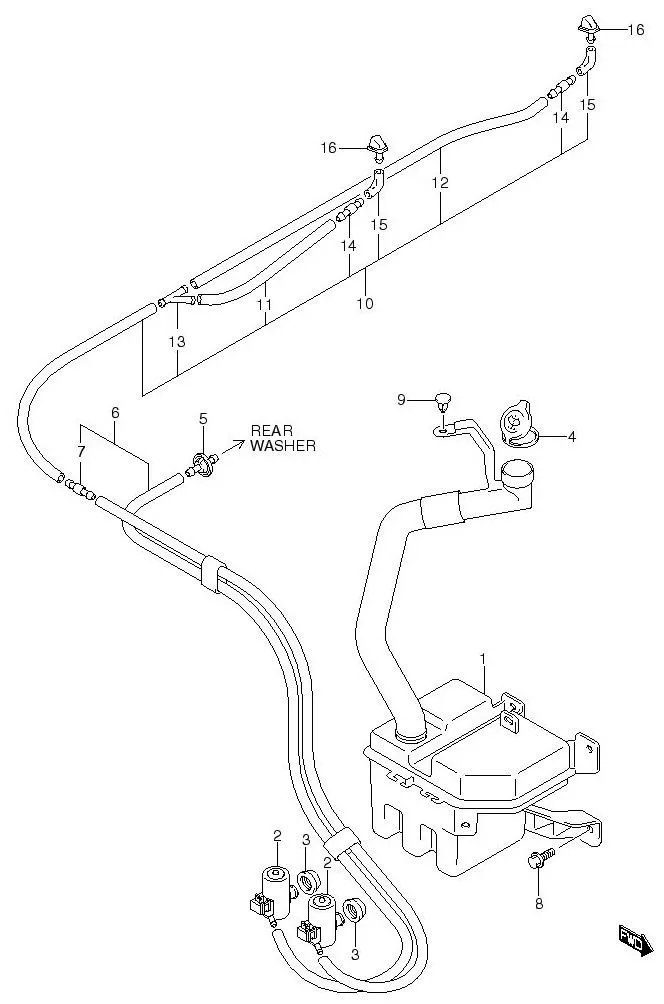

FIG.58 WINDOW WASHER

FIG.58 WINDOW WASHER
No No. Part Description Qty Price Per Pcs Remarks
1 38450-62J01-000
SUB: 38450-62J00-000		 TANK ASSY, WASHER 1 Rp854.500
2 38410-70B20-000 PUMP ASSY, WASHER 2 Rp1.127.000
3 38453-78F00-000 GROMMET, WASHER TANK 2 Rp42.000
4 38452-70B00-000 CAP, WASHER TANK 1 Rp37.000
5 38496-54G00-000 JOINT, WASHER 1 Rp43.500
6 38491-62J01-000 HOSE ASSY, FRONT & REAR 1 Rp213.500
7 38496-56B00-000 CONNECTOR 1 Rp34.000
8 02162-0612A-000 SCREW 3 Rp11.000
9 39138-63J00-000 CLIP, WASHER TANK INLET 1 Rp25.500
10 38490-63J00-000 HOSE ASSY, WASHER FRONT HOOD 1 Rp196.000
11 38491-61A10-000 HOSE, WASHER (L:2100!120) 1 Rp129.500
12 38491-61A10-000 HOSE, WASHER (L:2100!610) 1 Rp129.500
13 38496-60G00-000 JOINT, 3WAY 1 Rp30.500
14 38833M79500-000
SUB: 38496-61A00-000		 CONNECTOR 2 Rp8.000
15 38496-67H00-000 JOINT, ELBOW 2 Rp39.000
16 38480-63J00-000 NOZZLE, WASHER 2 Rp112.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
