SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATORFIG.50 BATTERYFIG.51 SPEEDOMETERFIG.52 HEADLAMPFIG.53 REAR LAMP AND ROOM LAMPFIG.54 WIRING HARNESSFIG.55 ELECTRICAL CONTROLFIG.56 LOCK SETFIG.57 FRONT WINDOW WIPERFIG.58 WINDOW WASHERFIG.59 REAR WINDOW WIPERFIG.60 RADIO

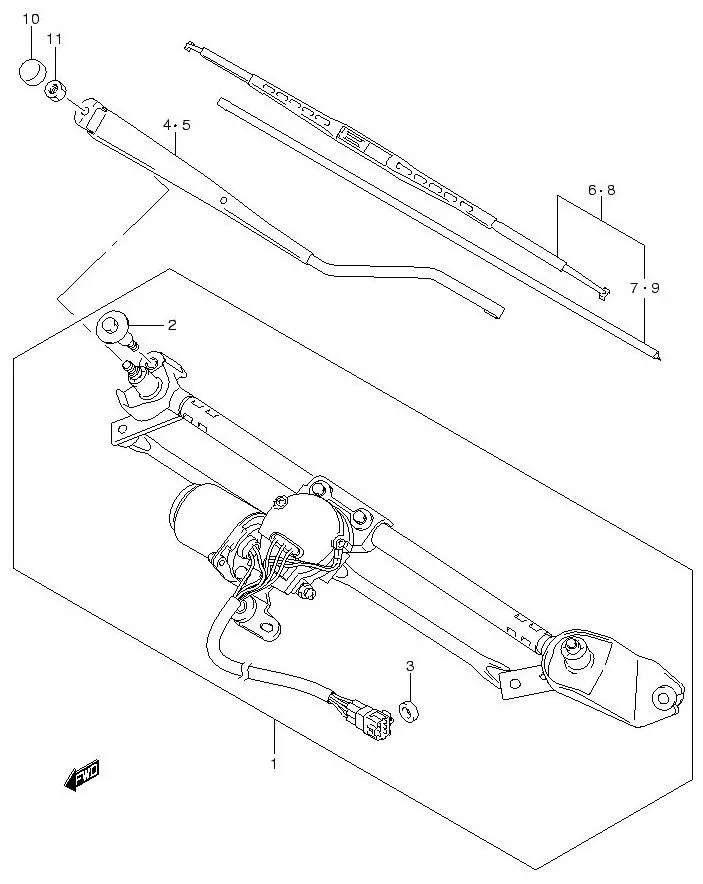

FIG.57 FRONT WINDOW WIPER

FIG.57 FRONT WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38100-63J10-000 MOTOR & BRACKET ASSY, WIPER 1 Rp3.696.000
2 38116-73H00-000 BOLT 3 Rp41.500
3 DISCONTINUE
SUB: 38173-63J00-000		 SEAL 1 -
4 38310-63J10-000 ARM ASSY, WIPER DRIVER 1 Rp439.000
5 38330-63J10-000 ARM ASSY, WIPER ASSISTANT 1 Rp471.500
6 38340-63J10-000 BLADE ASSY, WIPER DRIVER 1 Rp241.000
7 38346-63J10-000 BLADE 1 Rp143.500
8 38340-63J20-000 BLADE ASSY, WIPER ASSISTANT 1 Rp200.000
9 38346-63J20-000 BLADE 1 Rp143.500
10 38315-67L10-000
SUB: 38315M60B10-000		 CAP, WIPER ARM 2 Rp4.500
11 08310-0008A-000
SUB: 08310M0008A-000		 NUT 2 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
