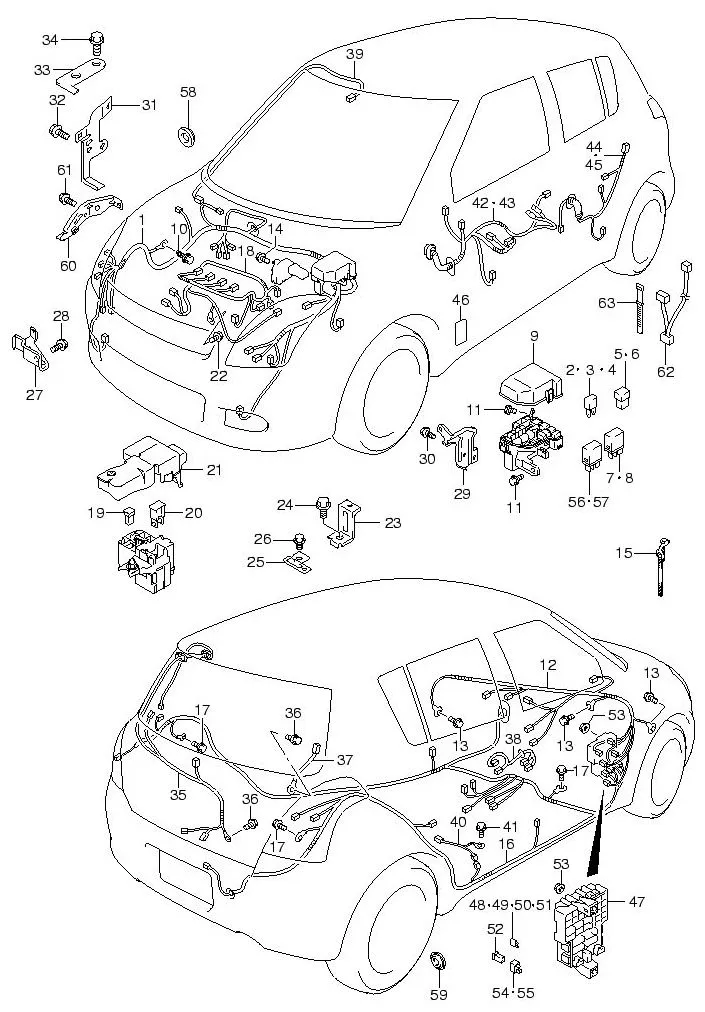

FIG.54 WIRING HARNESS

FIG.54 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 36610-73KU0-000
SUB: 36610B73KU0N000		 HARNESS ASSY, MAIN 1 Rp7.760.500
2 09481-10501-000
SUB: 09481M10501-000		 FUSE (10A) 1 Rp12.500
3 09481-15501-000
SUB: 09481M15501-000		 FUSE (15A) 5 Rp12.500
4 09481-30501-000
SUB: 09481M30501-000		 FUSE (30A) 1 Rp16.500
5 09481-30401-000 FUSE (30A) 3 Rp47.500
6 09481-50401-000
SUB: 09481M50401-000		 FUSE (50A) 1 Rp56.500
7 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, STARTER MOTOR 1 Rp47.000
8 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, RADIATOR 3 Rp47.000
9 36717M63J00-000 COVER, RELAY BOX 1 Rp174.000
10 09115-06005-000 BOLT (6X16) 2 Rp14.000
11 02162-0612A-000 BOLT 2 Rp11.000
12 36620-73KU0-000
SUB: 36620B73KU0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp3.938.500
13 09115-06005-000 BOLT (6X16) 2 Rp14.000
14 02162-0612A-000 BOLT 1 Rp11.000
15 09407-12404-000 CLAMP (L:140) 1 Rp19.500
16 DISCONTINUE
SUB: 36630B73KU0N000		 HARNESS ASSY, FLOOR 1 -
17 09115-06005-000 BOLT (6X16) 4 Rp14.000
18-1 DISCONTINUE
SUB: 36650B73K20N000		 HARNESS ASSY, ENGINE 1 - MT
18-2 36650-73K30-000
SUB: 36650B73K30N000		 HARNESS ASSY, ENGINE 1 Rp7.547.000 AT
19 09481-50401-000
SUB: 09481M50401-000		 FUSE (50A) 2 Rp56.500
20 09481-80301-000
SUB: 09481M80301-000		 FUSE (80A) 1 Rp86.500
21 36694-63J00-000 COVER, BATTERY TERMINAL 1 Rp115.000
22 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
23 DISCONTINUE
SUB: 36651B60J00N000		 BRACKET, ENGINE HARNESS BLOCK 1 -
24 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 1 Rp3.500
25 DISCONTINUE
SUB: 36652B60J00N000		 BRACKET, ENGINE HARNESS T/M 1 -
26 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
27 36651-51K00-000
SUB: 36651B51K00N000		 BRACKET, ENGINE HARNESS T/M 1 Rp15.000 MT
28 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500 MT
29 36653M63J00-000 BRACKET, ENGINE HARNESS BODY 1 Rp14.500
30 02162-0612A-000 BOLT 1 Rp11.000
31 DISCONTINUE
SUB: 36653B80G00N000		 BRACKET, 02 CONNECTOR 1 -
32 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
33 DISCONTINUE
SUB: 36995B77E21N000		 BRACKET, OPTION SWITCH & COUPLER 1 -
34 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
35 DISCONTINUE
SUB: 36680B63J00N000		 HARNESS ASSY, BACK DOOR 1 -
36 DISCONTINUE
SUB: 09132-06023-000		 SCREW (6X16) 2 -
37 DISCONTINUE
SUB: 36891B80G00N000		 WIRE, REAR DEFOGGER GROUND 1 -
38 DISCONTINUE
SUB: 36615B63J00N000		 WIRE, POWER STEERING 1 -
39 DISCONTINUE
SUB: 36820B63J00N000		 WIRE, ROOM LAMP 1 -
40 DISCONTINUE
SUB: 36840B63J20N000		 WIRE, FUEL PUMP 1 -
41 09103-06265-000
SUB: 09103-06168-000		 BOLT 1 Rp25.500
42 DISCONTINUE
SUB: 36756-63J20-000		 WIRE, FRONT DOOR MAIN 1 -
43 DISCONTINUE
SUB: 36757B63J20N000		 WIRE, FRONT DOOR SUB 1 -
44 DISCONTINUE
SUB: 36751B63J00N000		 WIRE, REAR DOOR RH 1 -
45 DISCONTINUE
SUB: 36751B63JA0N000		 WIRE, REAR DOOR LH 1 -
46 77151-82000-000
SUB: 77151B82000N000		 SEAL, HARNESS HOLE 2 Rp7.000
47 36780-72KU4-000
SUB: 36780-72KU0-000		 MODULE SET, JUNCTION BLOCK & BODY CONTROL 1 Rp4.715.500
48 09481-10501-000
SUB: 09481M10501-000		 FUSE (10A) 9 Rp12.500
49 09481-15501-000
SUB: 09481M15501-000		 FUSE (15A) 9 Rp12.500
50 09481-20501-000 FUSE (20A) 2 Rp16.000
51 09481-25501-000 FUSE (25A) 1 Rp17.500
52 09481-30401-000 FUSE (30A) 1 Rp47.500
53 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
54 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, HEATER 1 Rp47.000
55 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, HORN 1 Rp47.000
56 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, REAR DEFOGGER 1 Rp47.000
57 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, MAIN 2 Rp47.000
58 09250-30002-000
SUB: 72999-67H00-000		 CAP, WIPER HOLE 1 Rp5.500
59 09250-25007-000 CAP, HARNESS HOLE 1 Rp11.000
60 DISCONTINUE
SUB: 36651-79J60-000		 BRACKET, ENGINE HARNESS HOOK 1 -
61 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
62 DISCONTINUE
SUB: 36691-63J00-000		 WIRE, AIR BAG 1 - OPT
63 09407-18402-000
SUB: 09407B18402N000		 CLAMP 5 Rp8.000 OPT
